Thick Film Non-Inductive Ceramic Resistor

What's Thick Film Non-Inductive Ceramic Resistor ?

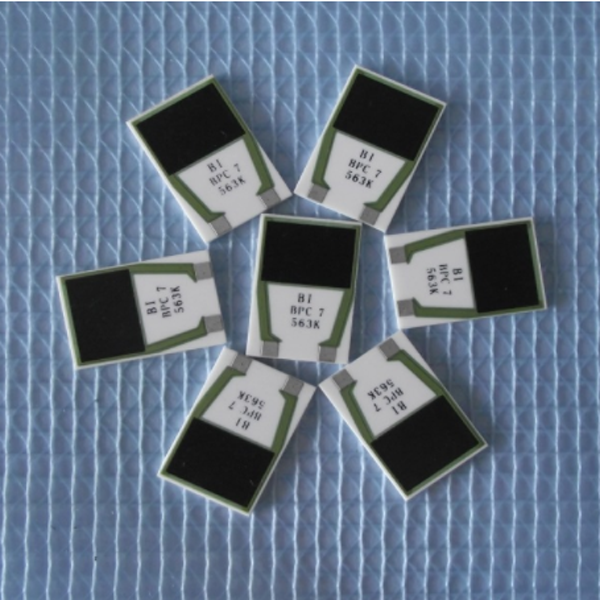

Thick Film Non-Inductive Ceramic Resistor also calls High Power Non-Inductive Ceramic Resistor, A Thick Film Carbon of resistive ink is screen printed high alumina substrates. A special laser machine is used to achieve the highly precise resistance tolerance by trimming. Thick Film Non-Inductive Ceramic Resistor are made with the substrate depositions designed and fabricated by screen printing; and then firing of layers of highly viscous pastes composed of noble metal powders, vitreous binders etc. Lead frames are soldered after applying protective encapsulant coat. Thick Film Non-Inductive Ceramic Resistor can be from 10 ohms/square to 100K ohms/square (Resistor Value range ), The thick film resistor or carbon resistor are printed on an etched copper or silver palladium and cured in a standard convection oven, infra-red furnace, or a thermal belt furnace. Laser trimming can be processed at this time to achieve tight tolerances.
Features:
Non inductive
High power density
Wide range of tolerances
Easy to mount
Custom built design and values available

Appilcation:Instruments, meters, microfiltration furnace, industrial equipment, household appliances, frequency converter products

SPEC: Resistane Value : 10 ohm +/-1% (Customizable)

Operating temperature range: 120-180℃

Working voltage : > 30KV (AC)

Dielectric strength : >1250Vrmas/50Hz/1min

For more information ,Please refer to "Thick-Film-Hybrid-Circuit"
