Interdigital Electrodes (IDEs)

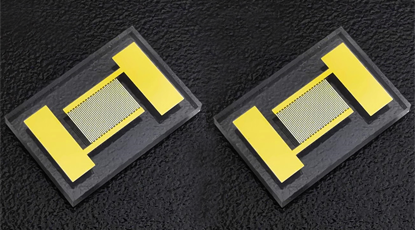

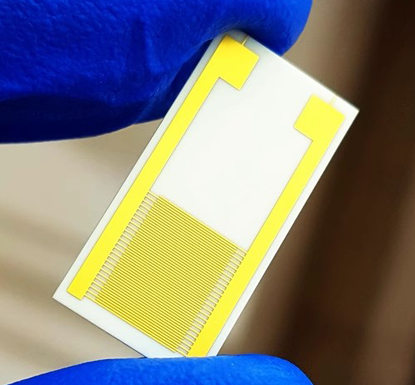

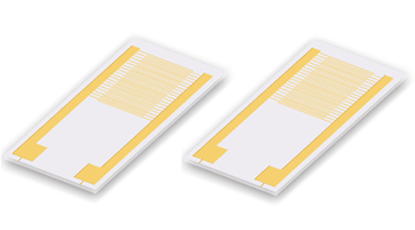

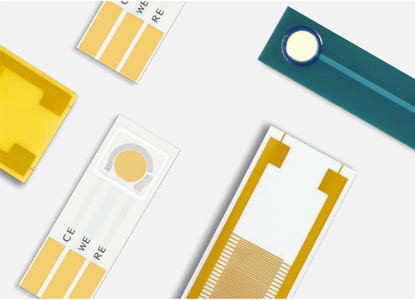

Interdigital Electrodes, also known as Interdigitated Electrodes, are customizable electronic components widely used in medical and food (gas and liquid) detection, manufactured with techniques like thin-film deposition or thick-film printing to create interdigitated electrode patterns (interlocking comb-like structures), with substrates like PI, PET, silicon, and ceramics, and conductors such as gold, silver, and copper, offering excellent conductivity, stability, and sensitivity, making them essential for high-precision and providing low resistance and high current-carrying capacity, ensuring exceptional performance and reliability.

Interdigital Electrodes are commonly used in applications involving capacitive sensing, such as gas sensors, humidity sensors, and biosensors. They work based on the principle of measuring changes in capacitance. When a target substance or analyte interacts with the sensing material on the electrodes, it causes a change in the capacitance, which can be correlated to the presence or concentration of the analyte.

Interdigitated Electrodes also called as "Interdigitated Capacitors", play a crucial role in various sensing applications, enabling the detection and measurement of different substances and physical parameters. They are one of the most popular transducers and are widely employed in technology and analytical applications, particularly in the fields of biological and chemical sensors. This is due to their low cost, ease of fabrication, and excellent sensitivity.

Main Features of Interdigital Electrodes :

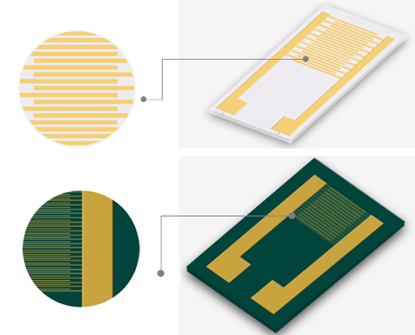

1, Interdigitated Structure: IDEs are characterized by a comb-like structure with alternating fingers or teeth. This design maximizes the electrode surface area, allowing for increased sensitivity and improved detection capabilities.

2, Sensing Principle: IDEs operate based on the principle of capacitance sensing. Changes in capacitance occur when a target substance or analyte interacts with the sensing material on the electrodes. This change can be measured and correlated to the presence or concentration of the analyte.

3, Versatility: IDEs find applications in various sensing devices and systems, including gas sensors, humidity sensors, biosensors, and chemical sensors. Their versatility stems from their ability to detect and measure different substances and physical parameters.

4, Miniaturization: Interdigital Electrodes can be designed in compact sizes while maintaining a large sensing area. This feature makes them ideal for miniaturized sensors and portable devices where space is limited.

5, Sensitivity: The interdigitated structure enhances sensitivity by increasing the effective sensing area. This allows IDEs to detect small changes in capacitance, making them suitable for precise measurements and sensing applications.

6, Low Cost and Fabrication Ease: Interdigital Electrodes are relatively low-cost to manufacture compared to other sensing technologies. The fabrication process is straightforward, enabling mass production and integration into various devices.

We can also provide Screen Printed Electrodes based on Thick Film Technology, Please refer to Screen Printed Electrodes for more informations.

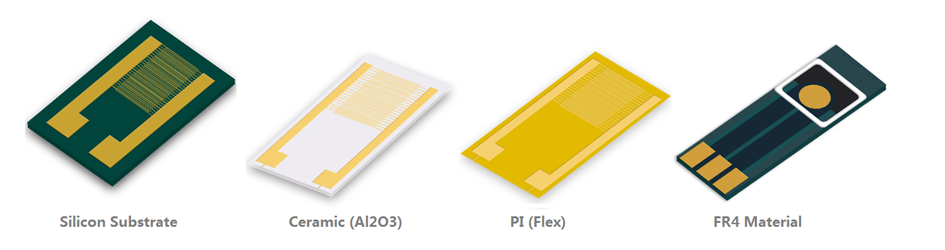

Comparison of IDE Sensors based on Different Substrates :

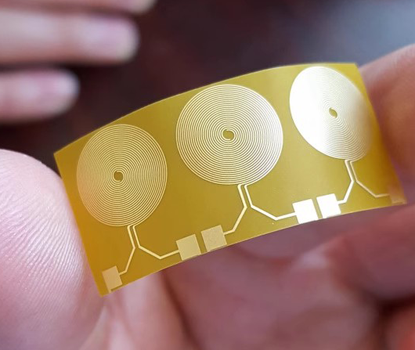

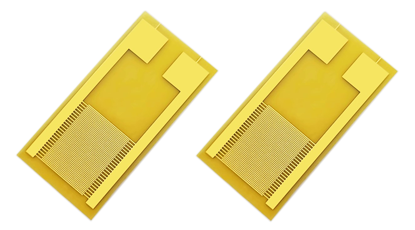

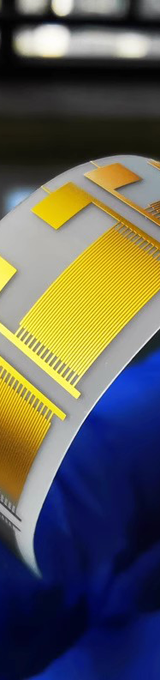

1, PI Interdigital Electrodes (Polyimide):

1, Product Characteristics: PI offers excellent thermal stability, chemical resistance, and flexibility. It is suitable for high-temperature and harsh environment applications.
2, Fabrication Process: PI-based IDEs can be fabricated using photolithography or laser micromachining techniques.
3, Sensing Method: Capacitive sensing is commonly used for PI-based IDEs.
4, Product Applications: PI-based IDEs are used in aerospace, medical devices, and flexible electronics applications.
5, Advantages: High-temperature resistance, chemical resistance, flexibility, widely applicable.
6, Disadvantages: Relatively higher cost compared to other substrates.

2, PET Interdigital Electrodes (Polyester or Polyethylene Terephthalate):

1, Product Characteristics: PET is a flexible, transparent, and low-cost substrate commonly used in flexible electronics.
2, Fabrication Process: PET-based IDEs can be fabricated using printing or vacuum deposition techniques.
3, Sensing Method: Capacitive sensing is commonly employed for PET-based IDEs.
4, Product Applications: PET-based IDEs are used in wearable devices, touch panels, and flexible displays.
5, Advantages: Low cost, flexibility, transparency.
6, Disadvantages: Limited temperature range, lower mechanical strength compared to other substrates.

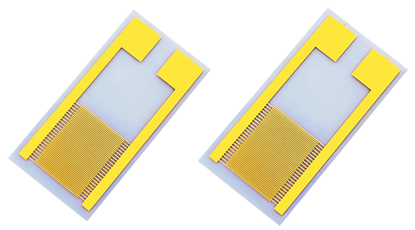

3, Ceramic Interdigital Electrodes (Al2O3 96%):

1, Product Characteristics: Ceramic substrates offer excellent thermal stability, high electrical insulation, and chemical inertness.
2, Fabrication Process: Ceramic-based IDEs are fabricated using microfabrication techniques such as thick-film or thin-film deposition.
3, Sensing Method: Capacitive sensing or piezoelectric sensing is commonly used for ceramic-based IDEs.
4, Product Applications: Ceramic-based IDEs find applications in gas sensors, pressure sensors, and harsh environment sensing.
5, Advantages: High-temperature resistance, chemical inertness, excellent insulation.
6, Disadvantages: Brittle material, higher cost compared to other substrates.

4, Silicon Interdigital Electrodes:

1, Product Characteristics: Silicon is a widely used substrate due to its excellent electrical properties, mechanical and strength with integrated circuit (IC) technology.
2, Fabrication Process: Silicon-based IDEs are typically fabricated using semiconductor fabrication processes such as photolithography and etching.
3, Sensing Method: Capacitive sensing or piezoresistive sensing is commonly employed for silicon-based IDEs.
4, Product Applications: Silicon-based IDEs are used in MEMS sensors, accelerometers, and pressure sensors.
5, Advantages: Excellent electrical properties, compatibility with IC technology.
6, Disadvantages: Higher cost, limited flexibility compared to flexible substrates.

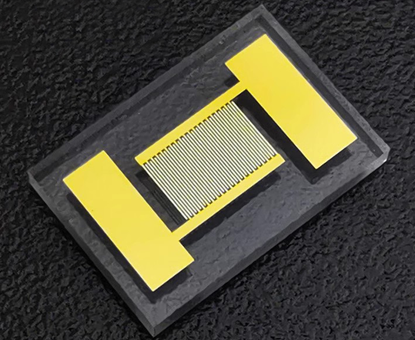

5, Quartz Interdigital Electrodes (Glass):

1, Product Characteristics: Glass substrates, particularly quartz, offer excellent thermal stability, high transparency, and chemical resistance.
2, Fabrication Process: Glass-based IDEs can be fabricated using micromachining techniques such as wet etching or laser ablation.
3, Sensing Method: Capacitive sensing or piezoelectric sensing is commonly used for glass-based IDEs.
4, Product Applications: Glass-based IDEs find applications in biosensors, chemical sensors, and high-temperature sensors.
5, Advantages: High thermal stability, chemical resistance, transparency.
6, Disadvantages: Brittle material, higher cost compared to other substrates.

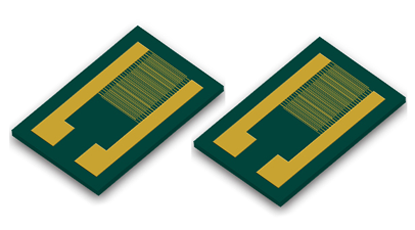

6, FR4 Interdigital Electrodes (Fiberglass Reinforced Epoxy):

1, Product Characteristics: FR4 is a widely used substrate due to its excellent electrical insulation properties and mechanical strength. It is cost-effective and readily available.
2, Fabrication Process: The IDEs on FR4 can be fabricated using standard printed circuit board (PCB) manufacturing techniques.
3, Sensing Method: Capacitive sensing is commonly employed for FR4-based IDEs.
4, Product Applications: FR4-based IDEs find applications in various industries, including automotive, consumer electronics, and industrial automation.
5, Advantages: Cost-effective, good electrical insulation, and mechanical strength.
6, Disadvantages: Limited temperature range, susceptibility to moisture absorption.

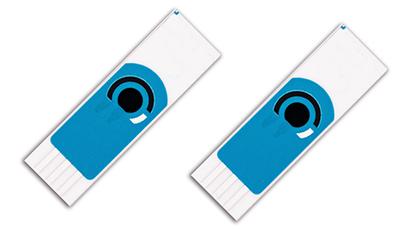

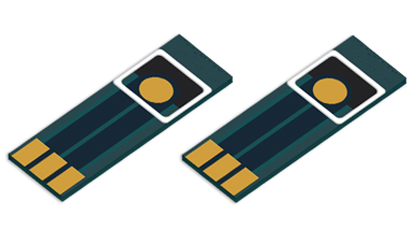

7, Electrochemical Sensors (Three Electrodes Sensors, Screen Printed Electrodes):

1, Product Characteristics: These sensors are characterized by their ability to detect and quantify specific analytes through electrochemical reactions on their surface.
2, Fabrication Process: The fabrication of Electrochemical Sensor PCBs typically involves using thick-film technology on ceramic substrates.
3, Sensing Method: These sensors employ electrochemical principles such as amperometry, potentiometry, or conductometry to detect target analytes based on changes in current, potential, or conductivity.
4, Product Applications: Finds applications in various fields including environmental monitoring (e.g., air, oil and water quality), biomedical analysis (e.g., glucose monitoring), industrial process control, and automotive exhaust gas analysis.
5, Advantages: High sensitivity and selectivity to specific analytes, Real-time monitoring capability.

Interdigital Electrodes (IDEs) can be fabricated on various substrates depending on the specific application requirements. Each substrate has its unique characteristics, fabrication processes, sensing methods, and advantages and disadvantages. The selection of the substrate for IDEs should be based on factors such as cost, temperature stability, mechanical strength, and compatibility with the target application.

Working Principle of Interdigital Electrodes :

1, Interdigital electrodes (IDEs) are a type of capacitive sensor that can be used for a variety of applications, such as gas sensing, humidity sensing, and biosensing. The working principle of IDEs is based on the capacitance change that occurs between the IDEs, which is influenced by the dielectric properties of the medium between the electrodes.

2, Interdigital Electrodes consist of two sets of parallel metal fingers or interdigitations that are separated by a small gap. One set of fingers is connected to a signal source, while the other set is grounded. When a sample is introduced into the gap between the fingers, the dielectric properties of the sample affect the capacitance between the interdigitations. This change in capacitance is proportional to the dielectric constant of the sample, which can be used to detect and measure various parameters such as the concentration of gas or the moisture content of a material.

3, The sensitivity of IDEs can be enhanced by modifying the surface of the fingers with specific materials or coatings that can interact with the target analyte. For example, in gas sensing applications, the surface of the fingers can be coated with metal oxides that have a high affinity for certain gases, resulting in a more selective and sensitive detection.

4, The working principle of Interdigital Electrodes relies on the capacitance change that occurs between the interdigitations caused by the dielectric properties of the medium between the electrodes. By detecting changes in capacitance, Interdigital Electrodes can be used for a wide range of sensing applications, making them a versatile and valuable tool in various industries.

How to Choose Interdigitated Electrodes Based on Different Substrates :

When selecting Interdigitated Electrodes based on different substrates, it's crucial to consider the specific application and requirements. Here are some factors to keep in mind for each substrate:

1, Polyimide (PI): PI IDEs have excellent flexibility, chemical resistance, and thermal stability. They are ideal for applications that require bendable and conformable electrodes such as wearable devices, sensors, and medical implants.

2, Polyethylene Terephthalate (PET): PET IDEs have good dielectric properties, low cost, and high transparency. They are commonly used in touchscreens, displays, and other applications where electrode visibility is important.

3, Ceramic: Ceramic IDEs have high mechanical strength, high temperature resistance, and excellent dielectric properties. They are suitable for high-power applications, microwave devices, and sensors that require high sensitivity.

4, Silicon: Silicon IDEs have excellent electrical performance, mechanical properties, and compatibility with microfabrication techniques. They are widely used in microelectronics, MEMS devices, and integrated circuits.

5, Glass: Glass IDEs have high transmittance, good surface flatness, and low cost. They are commonly used in touchscreens, displays, and sensors.

6, FR4: FR4 IDEs are made of a fiberglass-reinforced epoxy laminate and have good electrical insulation and mechanical properties. They are suitable for low-power applications, printed circuit boards, and antennas.

In addition to substrate selection, other factors to consider when choosing Interdigitated Electrodes include the electrode spacing, finger width, number of fingers, and electrode thickness. It's also essential to work with an experienced and reputable manufacturer such as PANDA PCB Group to ensure high-quality and effective IDEs that meet your specific needs.
