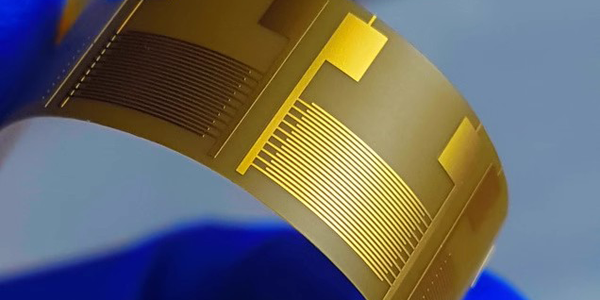

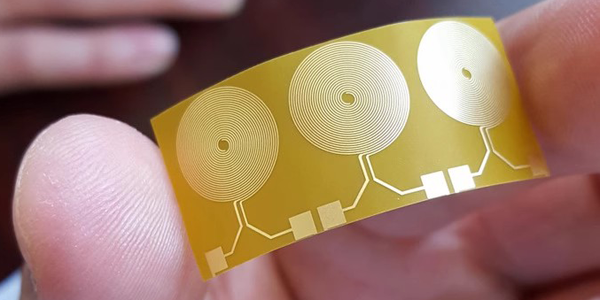

PI Interdigital Electrodes

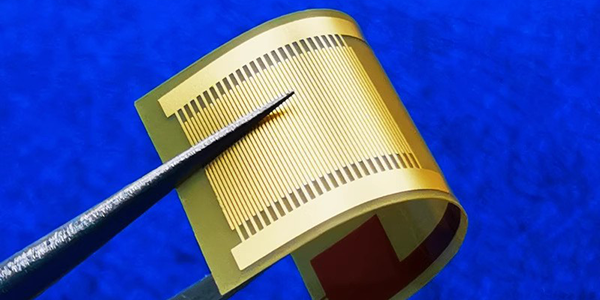

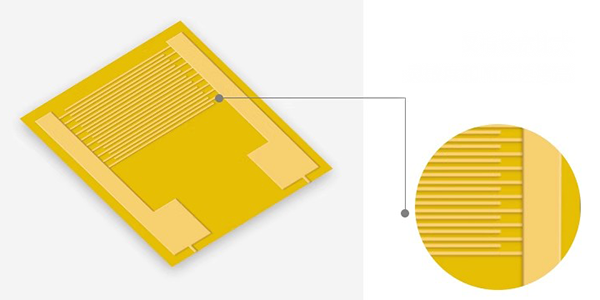

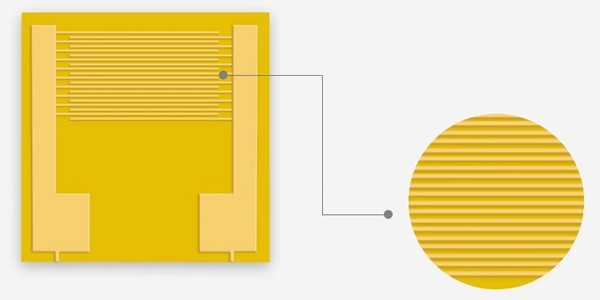

PI Interdigital Electrodes, also called Polyimide Interdigital Electrodes, refer to interdigitated electrode structures made using polyimide (PI) films as the substrate material, consisting of two sets of comb-like structures with alternating fingers, where each set is connected to an electrical contact and the fingers from one set are interleaved with the fingers from the other set, creating a periodic pattern.

PI Interdigital Electrodes or Flexible Interdigital Electrodes (Flex IDEs) find applications in various fields, including microelectromechanical systems (MEMS), sensors, actuators, and electronic devices. They are commonly used in impedance spectroscopy, where they enable precise measurement of electrical properties such as capacitance and impedance of samples placed between the fingers. The interdigitated design provides a large surface area for interaction with the sample, enhancing sensitivity and facilitating the detection of changes in electrical properties.

PI Interdigital Electrodes, utilizing polyimide as the substrate material, offer several advantages, including excellent chemical resistance, high-temperature stability, and mechanical flexibility, making them suitable for applications requiring flexibility, such as wearable devices or conformable sensor arrays.

Features of PI Interdigital Electrodes :

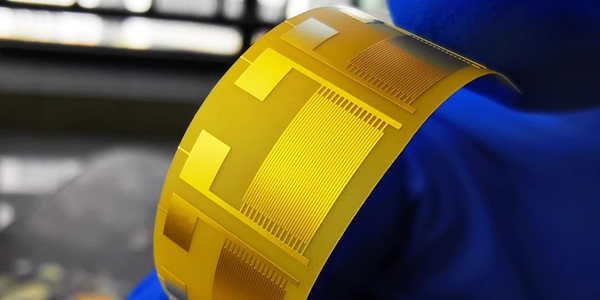

● Mechanical Flexibility: PI Interdigital Electrodes exhibit mechanical flexibility due to the properties of the polyimide substrate. This flexibility enables their application in curved or flexible surfaces, including wearable devices and conformable electronics.

● Precise Electrical Measurements: The interdigitated structure allows for precise electrical measurements, such as impedance spectroscopy. By measuring the electrical response of the sample placed between the fingers, these electrodes enable accurate characterization of various materials and systems.

● High Chemical Resistance: PI Interdigital Electrodes are highly resistant to various chemicals, making them suitable for use in corrosive environments or when interacting with different samples.

● Integration with Microfabrication Techniques: PI Interdigital Electrodes can be easily integrated into microfabrication processes. They can be patterned using techniques like photolithography, allowing for mass production and the realization of complex electrode designs.

● Thermal Stability: Polyimide films have excellent thermal stability, allowing the interdigitated electrodes to withstand high temperatures without degradation. This feature makes them compatible with processes that involve elevated temperatures, such as annealing or bonding.

● Large Surface Area: Interdigitated electrodes provide a large surface area for electrode-sample interactions. The design of alternating fingers maximizes the contact area, enhancing sensitivity and facilitating the detection of changes in electrical properties.

The combination of chemical resistance, thermal stability, mechanical flexibility, and precise measurement capabilities makes PI interdigital electrodes versatile for a wide range of applications in sensing, actuation, and electronic devices.

How to Customize Polyimide Interdigital Electrodes ?

Customizing Polyimide Interdigital Electrodes requires a systematic approach, considering the specific application requirements, material properties, and design parameters. Below are key steps to follow when customizing interdigitated electrodes:

● Determine Application Requirements:
The first step is to understand the specific needs of the application, such as the type of sample, desired measurement sensitivity, and environmental factors (e.g., temperature, humidity, and exposure to chemicals). This information will guide decisions on the appropriate substrate material, electrode geometry, and fabrication methods.

● Select Substrate Materials:
Polyimide is a popular substrate for PI Interdigital Electrodes due to its flexibility, high-temperature stability, and excellent mechanical properties. However, alternative materials such as silicon, glass, or flexible plastics may be chosen depending on the specific requirements of the application. The choice of substrate material directly impacts the electrical, chemical, and mechanical performance of the electrode.

● Design Electrode Geometry:
The design of the electrode structure is a crucial factor influencing performance. Key parameters to consider include finger width, spacing, and length, which will determine the surface area and capacitance of the electrodes. Additionally, the number of fingers and their inter-digit spacing will affect the sensitivity, resolution, and accuracy of the measurements. Careful design optimization is essential for achieving the required performance characteristics.

● Fabricate Interdigitated Electrodes:
The fabrication process involves several techniques, such as photolithography, sputtering, or inkjet printing, depending on the substrate material, electrode design, and the desired production scale. The selected technique should enable precise fabrication of the electrode structure while maintaining high reproducibility and consistency across multiple units.

● Test and Validate Electrodes:
After fabrication, thorough testing and validation are necessary to ensure the electrodes meet application-specific requirements. Electrical characterization methods like impedance spectroscopy are commonly used to assess the electrodes' performance, including their sensitivity to changes in the sample's electrical properties and their ability to function under real-world conditions.

Customizing Polyimide Interdigital Electrodes requires careful material selection, precise design, and effective fabrication methods. By testing and validating the final product, you can ensure the electrodes are tailored to meet the exact demands of your application, whether for research, sensors, or wearable technology.

Please send us your Polyimide Interdigital Electrodes drawing for DFM checking, then we can share you with design suggestion and quotation soon.

Applications of Flexible Interdigital Electrodes :

Flexible PI Interdigital Electrodes are widely utilized in the field of medical sensors due to their exceptional flexibility, durability, and biocompatibility. Here are some key applications:

● Biomedical Humidity Sensors: PI films serve as sensitive layers in relative humidity (RH) sensors, particularly those based on fiber Bragg grating technology. These sensors effectively detect changes in humidity, which is crucial in medical environments where maintaining optimal humidity levels is essential for patient care and the functionality of medical equipment.

● Medical Photometric Sensors: Photosensitive polyimide is employed as a sacrificial layer in the fabrication of various sensors. This application exploits the light-sensitive properties of PSPI to create sensors that respond to fluctuations in light intensity, proving useful in medical imaging and diagnostic applications.

● Medical Gas Sensors: PI-based sensors are instrumental in detecting specific gases, which can be integrated into medical devices to monitor the presence of gases indicative of certain health conditions or necessary for the administration of gaseous medications.

● Flexible Piezoresistive Sensors: PI serves as a substrate for flexible piezoresistive sensors that are highly sensitive to pressure changes. These sensors are particularly useful in wearable healthcare monitors, capable of detecting subtle human activities such as eye blinking and cheek movements, providing valuable data for medical analysis.

● Pressure Sensor Applications: PI is utilized in the development of flexible textile interdigitated electrodes, which can be integrated into wearable technology to monitor physiological signals, track movement, and facilitate smart health management. These sensors offer high sensitivity, flexibility, and comfort, making them ideal for use in smart wearable devices.

● Fully Printed Flexible Interdigital Electrode Sensors: Constructed using screen-printing technology, these sensors enable the creation of high-sensitivity devices for tactile sensing and pulse detection. They hold significant potential in flexible wearable biomedical detection, particularly in differentiating pulse waveforms.

● Sensors: PI Interdigital Electrodes are widely used in chemical and biological sensors, where their flexible nature allows for integration into wearable technology and other non-rigid substrates.

● Biomedical Applications: Flexible Interdigital Electrodes can be used in bioelectronics, such as neural interfaces and implantable devices, owing to their biocompatibility and flexibility.

The integration of Flexible Interdigital Electrodes in these applications underscores their versatility and importance in advancing medical sensor technologies, paving the way for innovative solutions in healthcare monitoring and diagnostics.

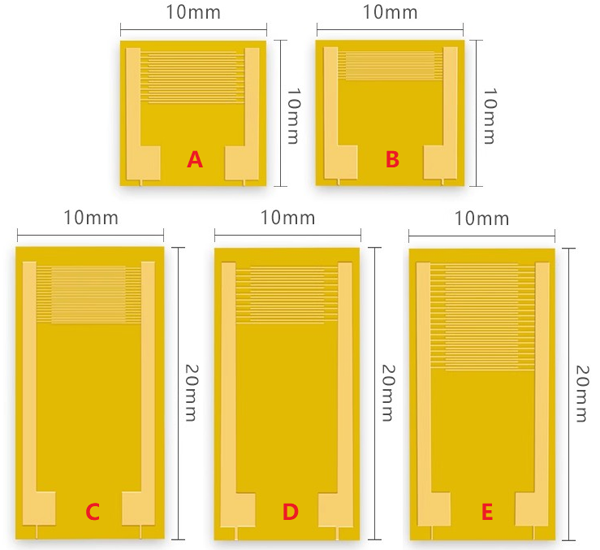

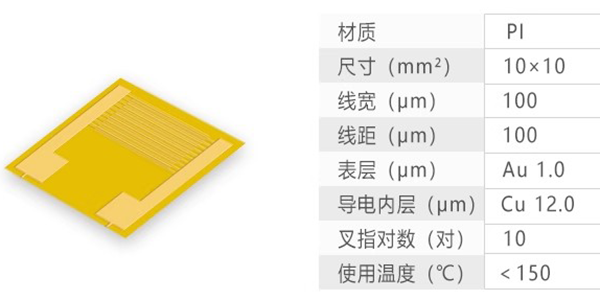

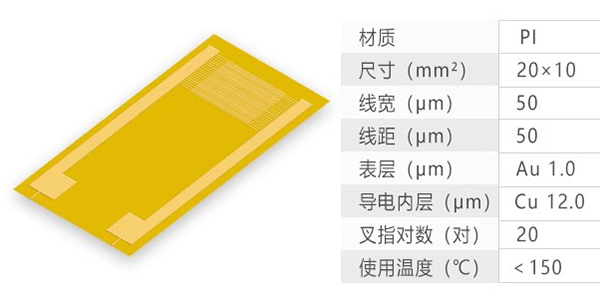

Specifications of PI Interdigital Electrodes :

Types	A	B	C	D	E
Substrates	PI	PI	PI	PI	PI
Electrode Type	2-Electrodes	2-Electrodes	2-Electrodes	2-Electrodes	2-Electrodes
Electrode Size	10mm*10mm	10mm*10mm	20mm*10mm	20mm*10mm	20mm*10mm
Trace Width	100um	50um	50um	100um	100um
Trace Spacing	100um	50um	50um	100um	100um
Electrode Pairs	10 Pairs	10 Pairs	20 Pairs	10 Pairs	20 Pairs
Capacitance	3.0+/-1.5pF	3.0+/-1.5pF	5.0+/-2.0pF	2.0+/-1.0pF	6.0+/-2.0pF

Please refer to Interdigital Electrodes for more informations.
