Ceramic Pressure Sensors

Ceramic Pressure Sensors, also called Ceramic Pressure Transducers, are devices that convert pressure measurements into electrical signals by utilizing the unique properties of ceramic materials, such as durability, stability, and resistance to extreme conditions, with the ceramic substrate acting as the core element for pressure detection, ensuring accurate and reliable performance in various applications, and are highly valued for their ability to operate in challenging environments where other sensor materials may fail, making them an ideal choice for applications requiring high precision and robustness.

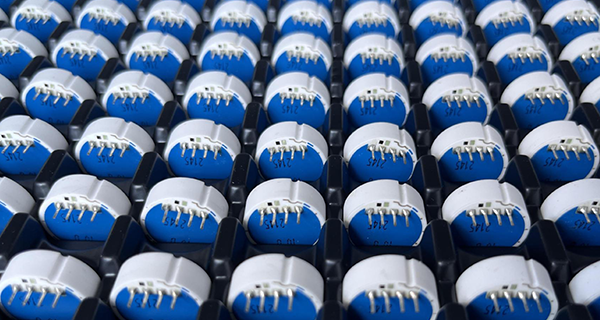

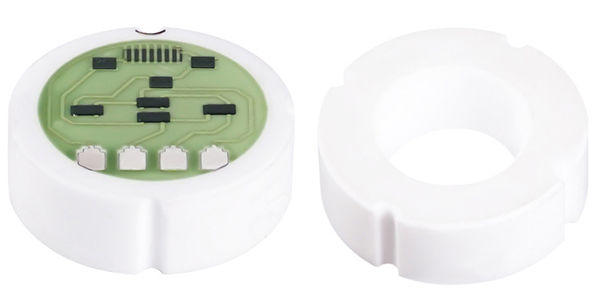

Ceramic Pressure Sensors are typically based on ceramic substrates and thick-film resistor technologies. The process involves creating a ceramic substrate that is sensitive to pressure variations, which is then integrated with thick-film resistors to convert mechanical stress (due to pressure) into electrical signals. These resistors are carefully applied to the ceramic substrate using precise printing and firing techniques. This process ensures high accuracy and stability in measurements. The ceramic material is selected for its ability to withstand high pressures and extreme environmental conditions, making the production of these sensors more complex but highly reliable.

Ceramic Pressure Sensors offer several key features that make them desirable for demanding applications. The ceramic substrate provides exceptional resistance to temperature extremes, moisture, and corrosive environments, ensuring long-term stability even in harsh conditions. These sensors also exhibit excellent accuracy, offering highly precise measurements. Additionally, their robust construction makes them durable, withstanding high pressures and mechanical stress. Their small size and integration with thick-film resistors make them suitable for compact designs without sacrificing performance, while the overall reliability of these sensors helps maintain consistency over time.

Ceramic Pressure Transducers are widely used in industries where high durability and precision are critical. They are commonly found in automotive, aerospace, industrial automation, and medical fields. In automotive systems, they are used for monitoring tire pressure, oil pressure, and fuel systems. In aerospace and defense, they are employed in monitoring fuel pressure and engine performance under extreme conditions. These sensors are also integral to industrial systems that require pressure monitoring in heavy machinery, hydraulic systems, and process control systems. Their resistance to harsh environments and ability to deliver precise measurements make them a versatile and dependable solution for a wide range of applications.

Types of Ceramic Pressure Sensors :

● Monolithic Ceramic Sensors: These sensors are made from a single piece of ceramic material, providing exceptional strength, durability, and reliability. The monolithic structure offers improved resistance to high pressures, thermal fluctuations, and mechanical stress. They are often used in high-demand applications such as automotive and industrial pressure monitoring, where ruggedness and long-term performance are essential. These sensors are also known for their high accuracy and minimal drift over time, making them suitable for precision pressure measurements in extreme environments.

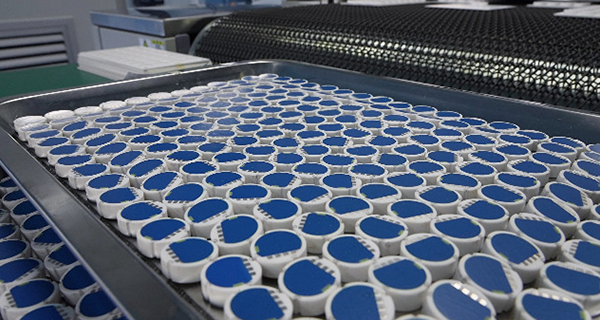

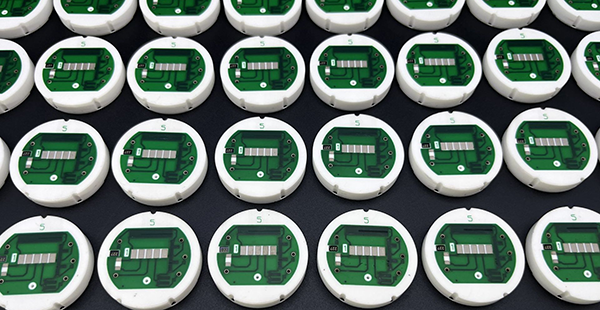

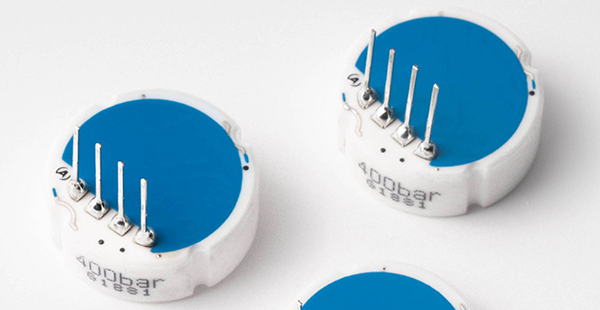

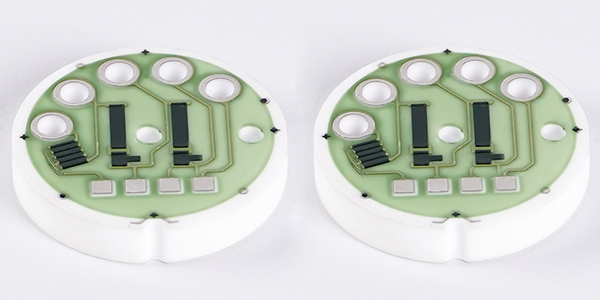

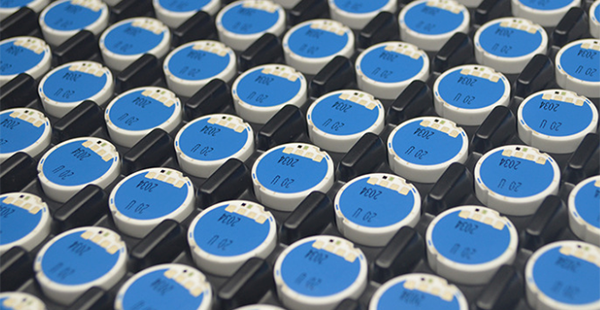

● Thick Film Ceramic Sensors: These sensors utilize thick-film technology to apply resistive elements onto a ceramic substrate. The resistive elements are printed or applied in thick layers, which can be precisely adjusted to detect changes in pressure. Thick-film ceramic sensors are cost-effective and offer good stability and accuracy over a wide range of pressures. These sensors are widely used in automotive, HVAC, and industrial process control applications where moderate to high pressures need to be measured reliably. They are also popular for their ease of integration into various sensor systems.

● Piezoelectric Ceramic Sensors: These sensors operate on the principle of the piezoelectric effect, where the ceramic material generates an electrical charge when subjected to pressure. This electrical charge is directly proportional to the applied pressure, allowing for real-time measurement of pressure fluctuations. Piezoelectric ceramic sensors are highly sensitive, making them ideal for applications requiring rapid response times and fine pressure measurements, such as in aerospace, medical, and dynamic testing environments. These sensors are particularly suited for monitoring transient pressure events, such as vibrations or pulses.

● Capacitive Ceramic Sensors: Capacitive ceramic sensors measure pressure by detecting changes in the distance between two capacitor plates when pressure is applied. The pressure-induced displacement between the plates alters the capacitance, which is then translated into an electrical signal. These sensors are known for their high sensitivity and accuracy, especially in low-pressure measurements. Capacitive ceramic sensors are commonly used in precision applications such as fluid level sensing, medical devices, and environmental monitoring. They offer excellent long-term stability and minimal drift, making them ideal for highly sensitive applications that require constant monitoring of small pressure variations.

Features of Ceramic Pressure Sensors :

● High-Temperature Stability: Ceramic Pressure Sensors are designed to withstand extreme temperature fluctuations, from cryogenic conditions to high temperatures exceeding 300°C in some cases. This makes them highly suitable for industries like aerospace, automotive, and industrial processes, where temperature variations can be drastic and other materials might fail. Their high-temperature performance ensures stable and reliable pressure measurements, even in harsh environments such as engine compartments or industrial furnaces.

● Chemical Inertia: Ceramic materials are naturally resistant to many corrosive chemicals and aggressive environments, including acids, alkalis, and solvents. This chemical inertia makes Ceramic Pressure Sensors ideal for use in industries like chemical processing, petrochemical, and offshore oil and gas exploration, where exposure to corrosive substances is a concern. Their ability to resist chemical degradation ensures consistent performance and reliability over extended periods.

● Mechanical Strength: The monolithic design of Ceramic Pressure Sensors provides exceptional mechanical strength, allowing them to endure high pressures, mechanical shock, and vibration. This feature is especially beneficial in automotive, heavy machinery, and aerospace applications, where the sensors are subjected to continuous vibrations and physical stress. Their rugged construction ensures they maintain their accuracy and reliability, even in high-impact environments.

● Fast Response Time: Ceramic Pressure Sensors exhibit rapid response times to pressure changes, making them ideal for dynamic pressure measurements. This fast responsiveness is critical in applications where pressure varies rapidly, such as in hydraulic systems, fuel injection systems, and medical equipment monitoring. Their ability to provide real-time data ensures better system control, safety, and performance optimization.

● Small Form Factor: Ceramic Pressure Sensors are available in compact sizes, making them suitable for applications where space is limited. The ability to miniaturize Ceramic Pressure Sensors without sacrificing performance allows them to be integrated into smaller or more intricate devices, such as portable medical devices, wearable sensors, and automotive systems, where precision pressure measurement is needed in confined spaces.

● Long Lifespan: Ceramic Pressure Sensors are known for their long operational life due to their durable construction and resistance to wear and tear. Unlike many traditional pressure sensors that may degrade over time due to environmental factors, ceramic sensors maintain consistent performance for years. This longevity reduces maintenance needs and replacement costs, making them a cost-effective choice for industries requiring continuous monitoring, such as manufacturing, automotive, and oil and gas sectors.

Working Principle of Ceramic Pressure Transducers :

Ceramic Pressure Transducers operate based on the type of sensor design, where each design leverages different physical phenomena to detect pressure and convert it into an electrical signal:

● Monolithic Ceramic Pressure Transducers: These sensors operate by utilizing a ceramic diaphragm or membrane that deflects under pressure. The membrane is typically integrated with resistive or capacitive elements, such as strain gauges or capacitive plates, which are affixed to the ceramic. When pressure is applied to the diaphragm, the resulting deflection causes a measurable change in the resistance or capacitance of the sensor elements. This change is then converted into an electrical signal proportional to the applied pressure. Monolithic transducers are particularly valued for their ruggedness, as the ceramic structure provides superior resistance to temperature variations, mechanical stress, and corrosive environments.

● Piezoelectric Ceramic Pressure Transducers: Piezoelectric sensors utilize the piezoelectric properties of certain ceramic materials, such as lead zirconate titanate (PZT), which generate an electrical charge when subjected to mechanical stress or pressure. When pressure is applied to the piezoelectric ceramic material, it induces a polarization within the material, creating a proportional electrical charge. This charge is directly correlated with the amount of pressure applied. Piezoelectric sensors are ideal for dynamic pressure measurements, as they are highly sensitive to rapid changes in pressure and can provide real-time feedback. They are commonly used in applications such as vibration monitoring, automotive engine diagnostics, and fluid dynamics testing.

● Capacitive Ceramic Pressure Transducers: Capacitive pressure sensors rely on the principle of capacitance, which is the ability to store an electrical charge between two conductive plates. In a capacitive ceramic pressure transducer, one plate is typically a flexible diaphragm, while the other is a fixed base. When pressure is applied to the diaphragm, it deflects, causing a change in the distance between the two plates. This change in distance alters the capacitance between the plates, and the resulting capacitance variation is used to calculate the applied pressure. Capacitive sensors are highly precise and offer excellent sensitivity to small pressure changes, making them suitable for applications that require high accuracy in low-pressure environments, such as medical devices, fluid monitoring, and environmental sensing.

Each type of Ceramic Pressure Transducer utilizes different methods to convert mechanical pressure into an electrical signal, but all share the advantages of ceramic materials—such as high temperature stability, chemical resistance, and mechanical strength—making them reliable solutions for demanding pressure measurement applications.

Applications of Ceramic Pressure Sensors :

Ceramic Pressure Sensors are widely used across various industries due to their exceptional durability, high-temperature stability, and resistance to corrosive environments. Here’s how they are applied in different sectors:

● Industrial Control Systems: Ceramic Pressure Sensors are integral to industrial control systems, where they are used to monitor and control pressure in critical manufacturing processes. Their robust construction and accurate pressure measurement capabilities make them ideal for applications such as hydraulic systems, pneumatic systems, and fluid management in factories, ensuring smooth operation, safety, and efficiency in automated production lines.

● Medical Equipment: Ceramic Pressure Sensors are extensively used in medical devices that require sterilization or are exposed to bodily fluids, such as blood pressure monitors, infusion pumps, and respiratory systems. Their chemical inertness, along with the ability to withstand high temperatures, makes them an excellent choice for maintaining precise pressure measurements in sterile environments. These sensors also help monitor blood pressure in real-time during surgery or critical care, where accuracy and reliability are paramount.

● Automotive: In the automotive industry, Ceramic Pressure Sensors are used in fuel systems, brake systems, and turbochargers, where reliability, high-temperature stability, and resistance to vibration are essential. They are capable of measuring fuel pressure, oil pressure, and exhaust gas pressure, helping optimize engine performance and emissions control. Ceramic sensors are favored in these applications due to their ability to operate in high-temperature environments and under high mechanical stress.

● Aviation and Aerospace: Ceramic Pressure Sensors are critical in aviation and aerospace applications, particularly in aircraft engines, fuel systems, and environmental control systems. These sensors are engineered to endure extreme temperatures, vibration, and high-pressure conditions, ensuring accurate pressure measurements in systems where safety and performance are critical. They play a crucial role in monitoring cabin pressure, engine thrust, and fuel systems, contributing to the safety and efficiency of flight operations.

● Process Control: Ceramic Pressure Sensors are widely used in the chemical and petrochemical industries for process control in chemical plants and refineries. They monitor the pressure in pipelines, reactors, and storage tanks, ensuring safe and efficient operation in highly corrosive and high-temperature environments. These sensors help optimize production processes, maintain safety standards, and prevent hazardous situations by providing real-time pressure data in critical systems.

● Hydronic Systems: Ceramic Pressure Sensors are also employed in heating, ventilation, and air conditioning (HVAC) systems to measure and regulate the pressure in hydronic systems. These sensors ensure the optimal operation of pumps, valves, and pressure regulators, helping maintain the efficiency and comfort of residential, commercial, and industrial HVAC systems. Their high precision and resistance to temperature and environmental changes make them ideal for long-term monitoring and control in such systems.

For more information, Please refer to Thick Film Sensors.

Specifications of Ceramic Pressure Sensors :

Outer Diameter:	18mm * 6.35mm (Height) (Customizable)
Supply Voltage:	30Vdc, (Maximum)
Sensitivity:	3mV/v
Pressure Ranges:	2bar, 5bar, 10bar, 20bar, 40bar, 50bar, 100bar
Full Scale Output:	>2mV/N
Bridge Impedance:	10KΩ ±30%
Zero Point Offset:	<±0.2mV
Operating Temperature:	-40 up to +135°C
Repeatability:	≤±0.2%FS
Safe Overload Pressure:	≥2 times the full scale
Maximum Excitation Voltage:	30Vdc
Insulation Resistance:	≥ 2 KV
Relative Humidity:	0-99%
Temperature Drift (Zero Point & Sensitivity):	≤±0.03%FS/°C
Zero Point Long-term Stability at 20°C:	± 0.25% FS
