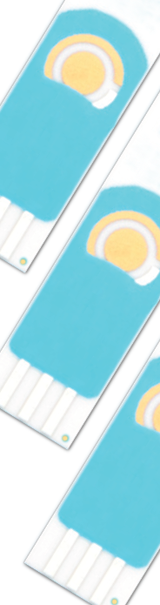

Screen Printed Electrodes (SPEs)

Screen Printed Electrodes, also known as Printed Electrochemical Sensors, are versatile electrochemical devices created using thick film techniques to print conductive materials like gold, silver, or carbon paste onto substrates such as plastic, glass, or ceramics, making them widely used in various electrochemical applications, including biosensors, fuel cells, and supercapacitors, due to their low cost, fast fabrication, and ease of integration with other components.

Screen Printed Electrodes offer the key advantage of a large surface area-to-volume ratio, which enhances sensitivity and facilitates efficient mass transport of analytes. Moreover, the screen printing technique allows for precise control over electrode dimensions, thickness, and shape, resulting in highly reproducible electrodes with consistent performance.

Printed Electrochemical Sensors are valuable tools in electrochemical analysis and sensing. Their ease of fabrication, versatility, and exceptional performance make them ideal for applications in environmental monitoring, medical diagnostics, food safety, and chemical analysis. These sensors are particularly useful in point-of-care devices, offering quick and cost-effective on-site testing. Their adaptability and integration potential with other technologies make them a promising solution for future advancements in analytical and sensor technologies.

Main Features of Screen Printed Electrodes :

1, Low-cost manufacturing: The screen printing technique used to fabricate SPEs is a cost-effective method compared to traditional electrode fabrication techniques, such as photolithography.

2, High reproducibility: The screen printing technique ensures excellent reproducibility of electrode dimensions and characteristics, leading to consistent performance across multiple electrodes.

3, Enhanced mass transport: The porous nature of screen-printed carbon ink electrodes facilitates the diffusion of analytes, leading to improved sensitivity and response time in electrochemical measurements.

4, Miniaturization: Screen Printed Electrodes can be easily miniaturized, enabling the development of portable and low-power electrochemical devices.

5, Disposable and single-use: SPEs are primarily disposable, eliminating the need for tedious cleaning and preparation steps between measurements, reducing contamination risks, and ensuring consistent results.

6, Customizability: SPEs can be designed with various geometries, sizes, and configurations to suit specific applications, making them highly customizable.

7, Compatibility with different electrode materials: SPEs can incorporate a wide range of electrode materials, including carbon-based materials, metal nanoparticles, and conductive polymers, for diverse electrochemical sensing applications.

8, Rapid prototyping: The screen printing process allows for quick and easy prototyping of electrode designs, facilitating fast development and optimization of electrochemical sensors and biosensors.

9, Versatility: Screen Printed Electrodes can be fabricated on different substrates, such as ceramics, glass, and polymers, allowing for flexibility in their applications.

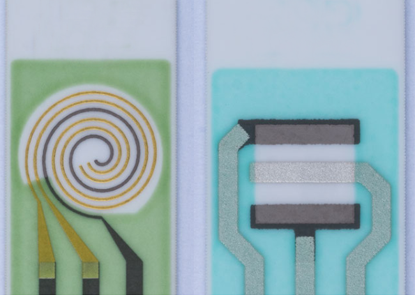

Please refer to Thick Film Technology for more informations, We can also provide Interdigital Electrode Sensors (IDE Sensors) based on Thin Film technology.

Product Types of Screen Printed Electrodes :

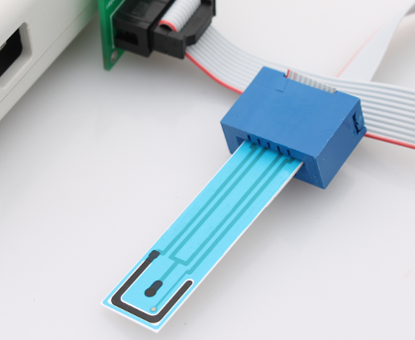

1, Single-Electrode SPEs: Single-electrode SPEs consist of only a working electrode without any additional electrodes. They are primarily used in applications where the electrochemical reaction kinetics are not critical or when simplified measurements are sufficient. Single-electrode SPEs are often employed in disposable biosensors or rapid screening assays.

2, Two-Electrode SPEs: Two-electrode SPEs combine the working electrode and the counter electrode into a single electrode. This configuration simplifies the design and reduces the complexity of the measurement setup. However, it may introduce potential complications in terms of potential control and current distribution at the electrodes.

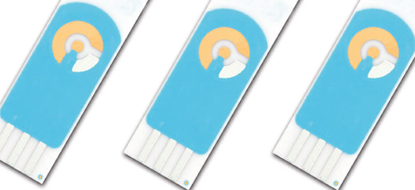

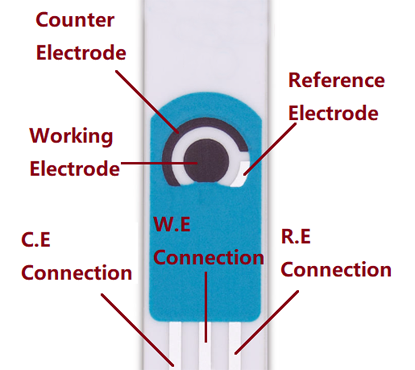

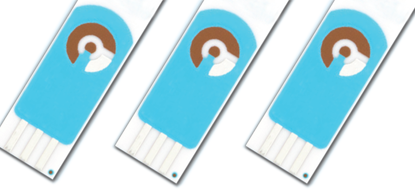

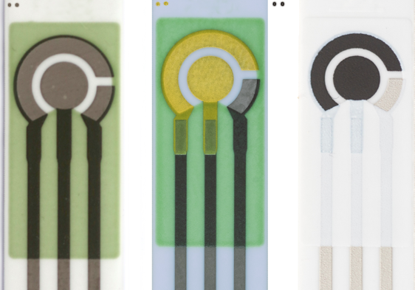

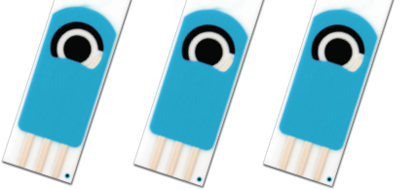

3, Three-Electrode SPEs: Three-electrode SPEs consist of a working electrode, an auxiliary electrode, and a reference electrode. This configuration is commonly used in electrochemical measurements and enables precise control of the potential at the working electrode. The reference electrode provides a stable reference potential, while the auxiliary electrode supplies the current needed for the electrochemical reactions.

4, Dual-working Electrode SPEs: Dual-working electrode SPEs feature two working electrodes that can be used for simultaneous measurements or comparative studies. This configuration allows for the investigation of different analytes, optimization of measurement conditions, or evaluation of electrode performance.

5, Custom-Configured SPEs: SPEs can also be custom-configured based on specific experimental requirements. For instance, multiple working electrodes can be combined with reference and auxiliary electrodes to create complex arrays for high-throughput screening or multi-analyte detection. These custom-configured SPEs offer flexibility and versatility in various electrochemical applications.

Comparison and Summary of Screen Printed Electrodes:

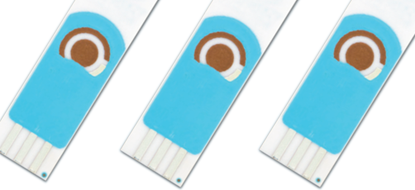

1, Screen Printed Carbon Electrodes:

1, Product Application: Carbon electrodes are widely used in various electrochemical applications, such as sensing, biosensing, and electrochemical analysis.

2, Product Features: Carbon electrodes offer good conductivity, chemical stability, low cost, and a wide potential window. They are compatible with a variety of electrolytes and suitable for both aqueous and non-aqueous solutions.

3, Electrode Configuration: Carbon electrodes can be used as working electrodes, auxiliary electrodes, or counter electrodes depending on the specific application. They can also be combined with other materials to create hybrid electrodes.

2, Screen Printed Gold Electrodes:

1, Product Application: Gold electrodes are commonly used in electrochemical sensing, DNA analysis, and other applications requiring high sensitivity and stability.

2, Product Features: Gold electrodes exhibit excellent conductivity, corrosion resistance, and biocompatibility. They provide good reproducibility and stability for long-term measurements.

3, Electrode Configuration: Gold electrodes are typically used as working electrodes or auxiliary electrodes. They can be functionalized with self-assembled monolayers (SAMs) or modified with nanoparticles for enhanced performance.

3, Screen Printed Silver Electrodes:

1, Product Application: Silver electrodes are frequently utilized in electrochemical sensing, conductive ink applications, and printed electronics.

2, Product Features: Silver electrodes offer high electrical conductivity, low resistivity, and good thermal stability. They are compatible with various substrates and printing techniques.

3, Electrode Configuration: Silver electrodes can be employed as working electrodes or auxiliary electrodes. They can be easily integrated into printed circuit boards or flexible electronics due to their excellent adhesion properties.

4, Screen Printed Platinum Electrodes:

1, Product Application: Platinum electrodes are commonly used in electrochemical measurements, fuel cells, and other applications requiring high catalytic activity.

2, Product Features: Platinum electrodes exhibit excellent electrocatalytic properties, high conductivity, and chemical stability. They are highly efficient in electrochemical reactions and suitable for harsh environments.

3, Electrode Configuration: Platinum electrodes can serve as working electrodes or auxiliary electrodes. They are often combined with reference electrodes, such as Ag/AgCl, to enable precise potential control.

Manufacturing Factors of Screen Printed Electrodes :

When manufacturing Screen Printed Electrodes (SPEs), there are several important factors to consider to ensure high-quality and reliable electrode performance. Here are some key factors to consider:

1, Substrate selection: The first step is to select a suitable substrate material, typically a non-conductive material such as ceramic, glass, or polymer. The substrate should be compatible with the screen printing process and have good electrical insulation properties.

2, Screen preparation: A screen is prepared by tightly stretching a mesh fabric over a frame made of metal or wood. The mesh size and tension should be chosen appropriately for the desired electrode design and ink printing.

3, Ink formulation: A conductive ink is formulated using a combination of conductive materials, binders, solvents, and additives. The ink composition can vary depending on the specific application requirements and the type of electrode material to be printed.

4, Screen printing: The ink is applied to the screen, and a squeegee is used to force the ink through the open areas of the mesh onto the substrate below. This process transfers the ink pattern onto the substrate, forming the electrode design. Multiple layers of ink may be applied to achieve the desired thickness and conductivity.

5, Drying and curing: The printed electrodes are dried to remove the solvent, and then cured at an elevated temperature to promote ink adhesion and complete the binder crosslinking process. The drying and curing conditions depend on the ink composition and manufacturer's recommendations.

6, Post-processing: After curing, the fabricated electrodes may undergo additional post-processing steps, such as surface modification or functionalization, to enhance their performance or enable specific applications.

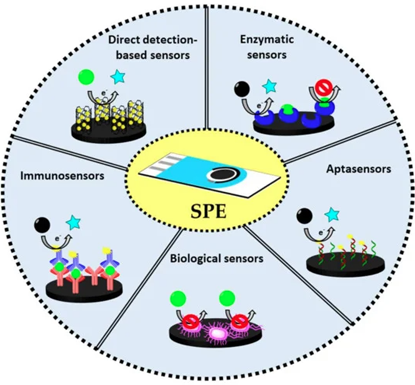

Applications of Printed Electrochemical Sensors (PESs):

Printed Electrochemical Sensors have numerous applications in various fields, including environmental monitoring, food analysis, clinical diagnostics, electrochemical biosensing, and industrial process control. Here are some specific examples of the applications of PESs:

1, Food analysis: Printed Electrochemical Sensors are suitable for detecting foodborne pathogens, toxins, and contaminants. They can also be used for quality control of food products, such as monitoring the freshness of meat or detecting adulteration.

2, Electrochemical biosensing: Printed Electrochemical Sensors are widely used in electrochemical biosensing applications, where they serve as transducers for converting a biological recognition event into a measurable signal. Examples include enzyme biosensors, immunosensors, and DNA sensors.

3, Energy storage and conversion: PESs can be used as electrodes in energy storage and conversion devices, such as batteries, fuel cells, and supercapacitors.

4, Environmental monitoring: PESs can be used for the detection and quantification of environmental pollutants, such as heavy metals, pesticides, and organic compounds. They can also be used for monitoring water quality, air pollution, and soil contamination.

5, Clinical diagnostics: Electrochemical Sensors can be used for various clinical diagnostic applications, including glucose monitoring, cholesterol detection, and the detection of biomarkers for diseases such as cancer and Alzheimer's disease.

6, Industrial process control: Printed Electrochemical Sensors can be used in industrial process control applications, such as monitoring the concentrations of reactants or products during chemical reactions. They can also be used for monitoring gas emissions and controlling electroplating processes.

7, Wearable and implantable devices: Printed Electrochemical Sensors can be incorporated into wearable and implantable devices for real-time monitoring of physiological parameters, such as blood glucose levels and heart rate.

Key Advantages of Printed Electrochemical Sensors :

Printed Electrochemical Sensors offer several advantages over traditional electrode fabrication methods, making them popular in various electroanalytical applications. Here are some key advantages of Printed Electrochemical Sensors:

1, Rapid prototyping: Screen printing allows for quick and easy prototyping of electrode designs. This feature enables researchers and developers to rapidly iterate and optimize electrode configurations, saving time and resources in the development process.

2, Customizability: Printed Electrochemical Sensors can be designed with various geometries, sizes, and configurations to suit specific application requirements. This flexibility allows researchers and engineers to tailor the electrode design to optimize performance for specific analytes or sensing mechanisms.

3, Wide material compatibility: PESs can incorporate a wide range of electrode materials, including carbon-based materials, metal nanoparticles, conductive polymers, and enzymes. This versatility enables the development of sensors and biosensors with tailored properties and selectivity for different target analytes.

4, Miniaturization and portability: Printed Electrochemical Sensors can be easily miniaturized, enabling the development of portable and low-power electrochemical devices. Their small size and lightweight nature make them suitable for on-site and in-field measurements, facilitating rapid analysis and point-of-care testing.

5, Cost-effective: Printed Electrochemical Sensors are manufactured using a cost-effective screen printing technique, which is less expensive compared to traditional electrode fabrication methods like photolithography. This makes Printed Electrochemical Sensors more accessible and affordable for research, industry, and healthcare applications.

6, High reproducibility: The screen printing technique ensures excellent reproducibility in terms of electrode dimensions and characteristics. This consistency in electrode fabrication leads to predictable and reliable performance across multiple electrodes, ensuring consistent results.

7, Enhanced mass transport: Printed Electrochemical Sensors are typically fabricated using porous materials, such as carbon ink. These porous structures facilitate efficient diffusion of analytes, enhancing mass transport and improving sensitivity and response time in electrochemical measurements.

Electrochemical Characterization of Carbon-Based Screen Printed Electrodes :

The electrochemical characterization of carbon-based Screen Printed Electrodes (SPEs) involve evaluating their electrochemical properties and performance to understand their suitability for specific sensing applications. Here are some common electrochemical characterizations conducted on carbon-based SPEs:

1, Cyclic Voltammetry (CV): CV is a widely used electrochemical technique that involves sweeping the potential of the working electrode linearly over a defined voltage range while measuring the resulting current. CV provides information about electron transfer kinetics, redox reactions, and the electrochemical stability of the electrode material. It can be used to determine the electrochemical active surface area, assess the reversibility of redox processes, and investigate the electrode's response to different analytes.

2, Calibration Curve Construction: To quantify analytes using carbon-based SPEs, calibration curves are often constructed by measuring the electrochemical response at different concentrations of the target analyte. The resulting data can be fitted to a suitable mathematical model to establish a relationship between the analyte concentration and the measured current or potential.

3, Selectivity and Specificity Testing: Carbon-based SPEs may exhibit cross-reactivity with other analytes present in complex samples. Selectivity and specificity testing involves evaluating the electrode's ability to selectively detect the target analyte in the presence of potential interferents. This can be done by measuring the electrode response in the presence of various interfering substances or through the use of selectivity-enhancing coatings or recognition elements.

4, Chronoamperometry and Chronopotentiometry: These techniques involve measuring the current or potential, respectively, at a fixed time or potential value. They are commonly used for studying the kinetics of electrochemical reactions on the carbon-based SPEs, including determination of diffusion coefficients, detection limits, and response times.

5, Electrochemical Impedance Spectroscopy (EIS): EIS is a technique used to measure the impedance of an electrode-electrolyte interface over a range of frequencies. By analyzing the impedance spectra, information about charge transfer resistance, double-layer capacitance, and diffusion processes at the electrode surface can be obtained. EIS helps in understanding the kinetics of redox reactions and the overall electrochemical behavior of the carbon-based SPEs.

These electrochemical characterizations provide valuable insights into the performance, limitations, and optimization possibilities of carbon-based SPEs for specific electrochemical sensing applications. Understanding the electrochemical behavior of these electrodes helps in designing and optimizing sensor systems for accurate and reliable detection of target analytes.

Engineering Specification of Screen Printed Electrodes :

Items :

Typical Values

Advanced Capabilities

1, Substrates :

FR4, Ceramic ( AI203, ALN, BeO, ZrO2), Polyimide (Flexible PI), Stainless Steel (SUS304), Mica

FR4, Ceramic ( AI203, ALN, BeO, ZrO2), Polyimide (Flexible PI), Stainless Steel (SUS304), Mica

2, Conductor (Paste) Materials :

Copper, Silver , Gold , Silver-Palladium, Palladium-Gold, Platinum-Silver, Platinum-Gold

Copper, Silver , Gold , Silver-Palladium, Palladium-Gold, Platinum-Silver, Platinum-Gold

3, Thick Film Carbon Thickness (Height) :

15um +/-5 um

30um +/-5 um

4, Conductor Thickness (Height) :

12um+/-5um

20um+/-5um

5, Min Width of Thick Film Line :

0.30 mm +/-0.05 mm

0.20 mm +/-0.05 mm

6, Min Space of Thick Film Line :

0.30 mm +/-0.05 mm

0.20 mm +/-0.05 mm

7, Min Overlap (Carbon to Conductor) :

No less than 0.25mm

0.20mm (Minimum)

8, Sheet Resistivity (ohms/square):

Printed resistors in milli ohm to mega ohm range (Customizable) with tolerances of 1-10% are fabricated and protected with overglaze materials

Printed resistors in milli ohm to mega ohm range (Customizable) with tolerances of 0.5-10% are fabricated and protected with overglaze materials

9, Resistor Value Tolerance (ohms) :

+/-10.0% (Standard) (Customizable)

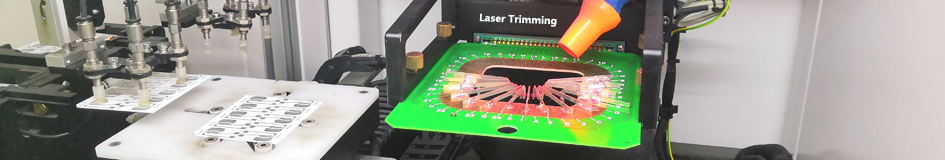

+/-0.5% (Laser trimming)

10, Linearity :

+/-1.0% (Standard) (Customizable)

+/-0.2 ~ +/-0.5% (Laser trimming)

11, Synchronism of Double Channels :

+/-2.0% (Standard) (Customizable) (Potentiometers)

+/-1.0% (Laser trimming) (Potentiometers)

12, Durability of Carbon Ink (Life time) :

0.5 Million (Min), 2.0 Million (Standard)

5.0-10.0 Million (Max) with Surface Polishing

13, Working Temperature :

－ 40ºC /＋150ºC

－ 40ºC /＋180ºC
