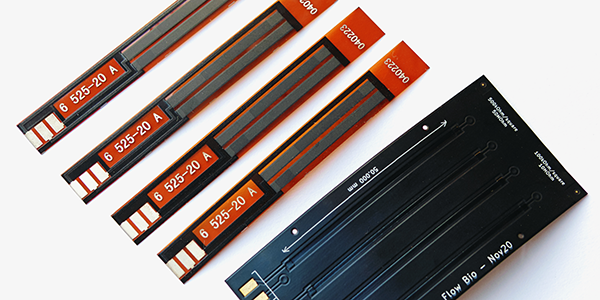

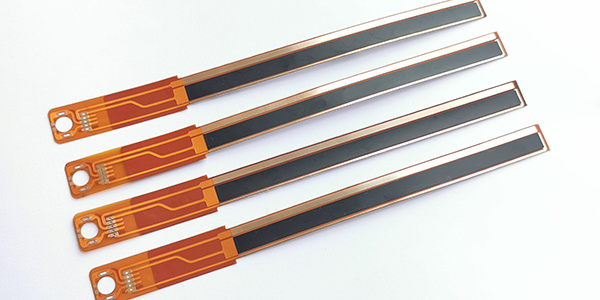

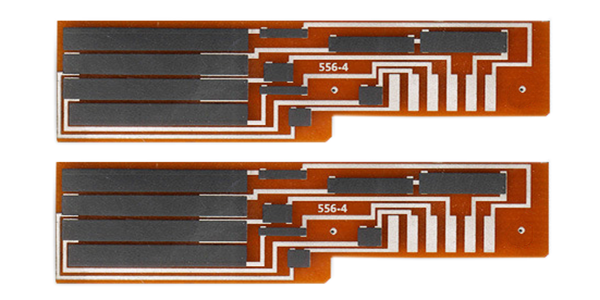

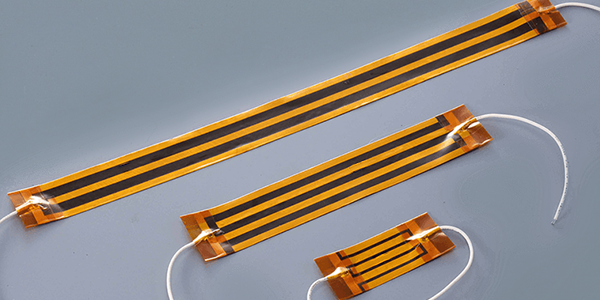

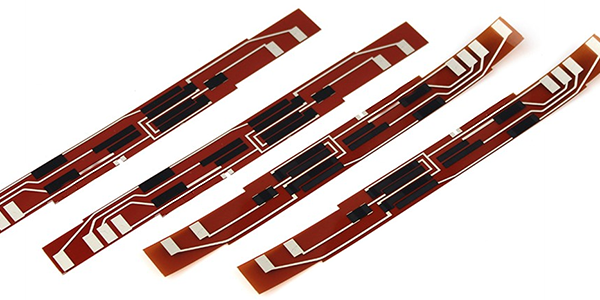

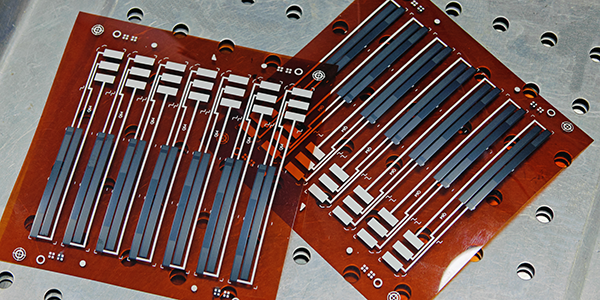

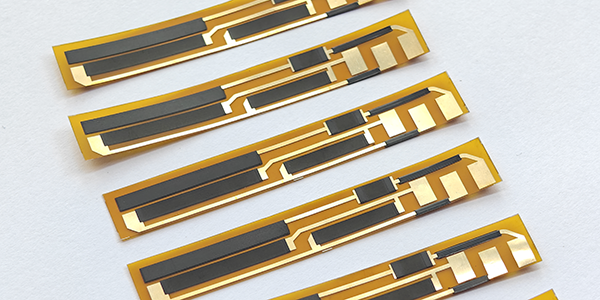

Flexible Potentiometer Carbon PCB

Flexible Potentiometer Carbon PCBs, also called Flexible Potentiometer PCBs, are innovative technologies that integrate potentiometer functions into flexible printed circuit boards, using flexible polyimide substrates and printing conductive carbon elements on the surfaces, which form voltage dividers to achieve the potentiometers' adjustment functions, with the flexible PCB substrates having excellent heat resistance, chemical resistance, and flexibility, making them especially suitable for electronic devices that require bending, folding, or rolling.

Flexible Potentiometer Carbon PCBs are characterized by outstanding flexibility, durability, and high-precision functionality. With a polyimide film substrate, these PCBs offer excellent mechanical properties, enabling stable operation in high-temperature or harsh environments. Their flexible design allows them to adapt to various complex shapes, making them particularly suitable for compact electronic products that require bending or compression. Additionally, by folding and stacking PCB layers, flexible potentiometer carbon PCBs save space and support more compact and efficient circuit designs, improving the overall performance and reliability of the product.

Flexible Potentiometer PCBs demonstrate their broad application potential in multiple fields. Due to their high precision and flexibility, they have been widely applied in consumer electronics, automotive systems, and medical devices. For instance, they can be integrated into wearable devices, foldable smartphones, and other compact electronic devices to provide precise voltage adjustment functions. Moreover, as the demand for higher performance and miniaturized designs increases, flexible potentiometer carbon PCBs play a crucial role in innovative designs, driving the enhancement of the reliability and functionality of electronic products.

Features of Flexible Potentiometer Carbon PCB :

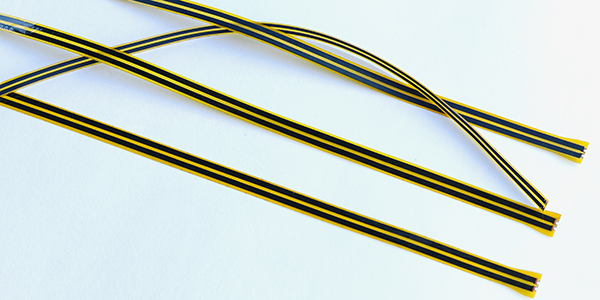

● Flexibility: Flexible Potentiometer Carbon PCBs can withstand repeated bending and flexing without damage, making them ideal for dynamic applications.

● Lightweight: Flexible Potentiometer Carbon PCBs are very lightweight and thin, with their low mass making them suitable for portable devices.

● Durability: The polyimide material provides high resistance to heat, cold, and chemicals. Polyimide flex PCBs are very durable.

● High-Density Design: By folding and stacking layers, flex PCBs allow for more compact and dense circuit designs.

● Softness: The flexibility allows for softer and more comfortable contact and interface with the human body.

● Reliability: Well-designed flex PCBs are highly reliable for complex flexible applications.

● Excellent Thermal Stability: Polyimide has a glass transition temperature exceeding 300°C, enabling it to remain stable at high temperatures.

● Chemical Resistance: Polyimide exhibits good resistance to most solvents and acids, except for alkaline solutions.

● Good Dielectric Performance: Polyimide has a dielectric strength of 15 kV/mm and good insulation resistance, allowing it to operate at high voltages.

● High Mechanical Strength: Polyimide substrates have very high tensile strength, making them less brittle, which provides good flexibility and adaptability for dynamic bending applications.

● Wide Applications: Due to its unique combination of properties, Polyimide flex PCBs have widespread applications across various industries, including wearables, medical devices, and automotive electronics.

● Multilayer Design: Multilayer flex PCBs have multiple conductive layers, allowing for more complex, high-density flex PCB designs, with layers that can be stacked and folded to save space.

● Design Guidelines: Designing Flexible Potentiometer Carbon PCBs requires adherence to certain guidelines and rules to ensure that the circuits can bend and move reliably.

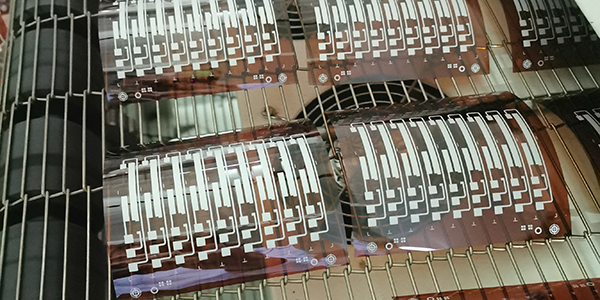

● Manufacturing Process: The manufacturing of Flexible Potentiometer Carbon PCBs requires specialized processes, including design and layout, material selection, imaging, etching, layer bonding, testing and inspection, and cutting.

Flexible Potentiometer Carbon PCBs have some main drawbacks, including relatively high costs, design limitations, complex manufacturing processes, and potential requirements for more specialized design and manufacturing techniques; nonetheless, due to their outstanding performance and flexibility, Polyimide flex PCBs remain the preferred choice in many high-end applications.

Applications of Flexible Potentiometer PCB :

Flexible Potentiometer PCBs are advanced components that leverage the properties of polyimide materials combined with carbon-based resistive elements. These flexible boards are ideal for applications requiring lightweight, thin, and durable designs.

1. Automotive Applications
● Dashboard Displays: Used in flexible displays for instrument clusters, providing a lightweight and compact design.

● Control Panels: Integrated into user interfaces for climate control, navigation, and entertainment systems in vehicles.

2. Medical Devices
● Flexible Sensors: Used in devices that require conformable sensors for monitoring vital signs or other health metrics.

● Diagnostic Equipment: Integrated into portable diagnostic tools that need flexible and lightweight circuitry.

3. Industrial Equipment
● Robotics: Employed in flexible robotic arms and manipulators that require lightweight and adjustable controls.

● Process Control: Used in machinery that requires flexible connections and precise adjustments for varying operational conditions.

4. Telecommunications
● Antennas: Integrated into flexible antenna designs, enhancing the performance of communication devices.

● Signal Processing Devices: Employed in devices that require flexibility for adjusting signal levels and performance.

5. Aerospace and Defense
● Avionics Systems: Used in flexible control panels and instrumentation that can adapt to varying shapes and spaces within aircraft.

● Portable Military Equipment: Integrated into lightweight, flexible devices used in the field for communication and navigation.

6. Home Automation
● Smart Home Devices: Employed in control systems for lighting, HVAC, and security systems that require flexible installation.

● Remote Controls: Integrated into flexible remote control designs for easy handling and operation.

7. Environmental Monitoring
● Flexible Sensing Devices: Used in applications that require monitoring of environmental conditions, like air quality or water quality sensors.

● Weather Stations: Integrated into portable weather monitoring systems for adjustable sensor placements.

Process Capabilities of Potentiometer PCB :

Items	Typical Values
1, Substrates :	FR4, Alumina (Ceramic), Polyimide (Flexible PCB), Stainless Steel (SUS304), Mica
2, Conductors Material :	Copper, Silver , Gold , Silver-Palladium, Palladium-Gold
3, Thick Film Carbon Thickness (height) :	15um +/-5 um
4, Silver Palladium Thickness (height) :	12um+/-5um
5, Minimum Width of Thick Film Traces :	0.25 mm +/-0.05 mm
6, Minimum Spacing of Thick Film Traces :	0.25 mm +/-0.05 mm
7, Minimum Footprint (Carbon to Copper) :	No less than 0.20mm
8, Sheet Resistivity (ohms/square):	Printed resistors in milli ohm to mega ohm range (Customizable) with tolerances of 1-10% are fabricated and protected with overglaze materials
9, Resistor Value Tolerance :	+/-10.0% (Standard) (Customizable)
10, Linearity :	+/-1.0% (Standard) (Customizable)
11, Synchronism of Potentiometers (Double Channels) :	+/-2.0% (Standard) (Customizable)
12, Durability of Carbon Ink (Life time) :	0.5 Million (Min), 2.0-5.0 Million (Standard)
13, Working Temperature :	－ 40℃ /＋150℃

For more information, Please refer to Thick Film Potentiometer PCB.
