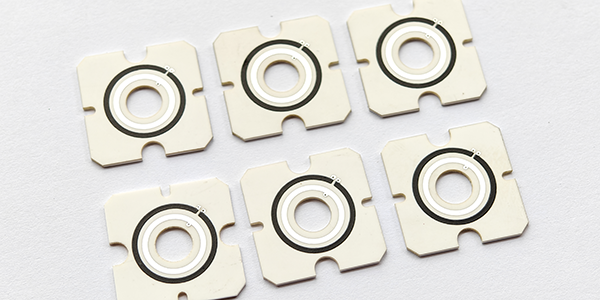

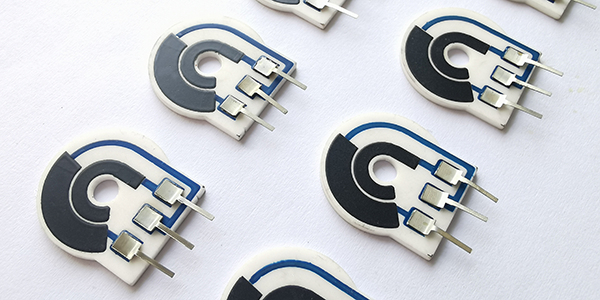

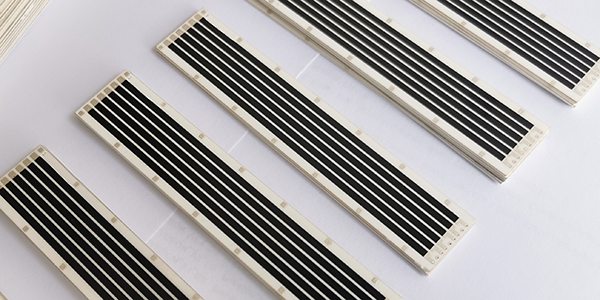

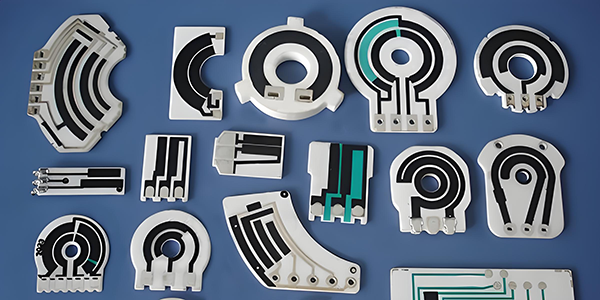

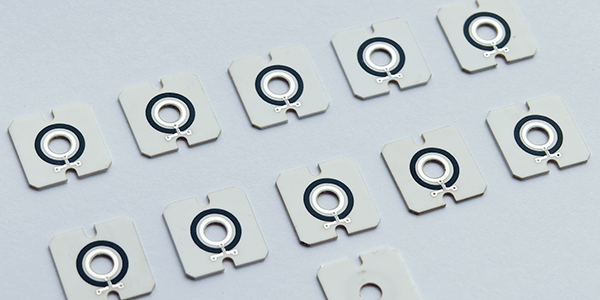

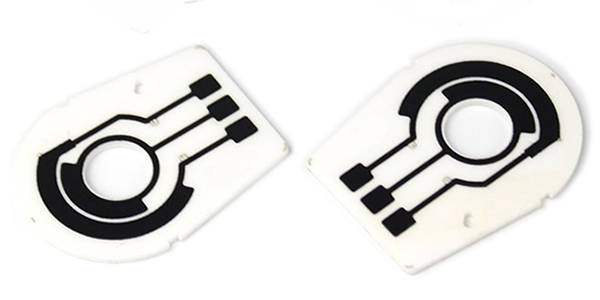

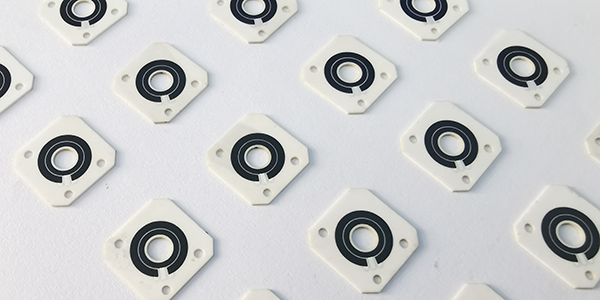

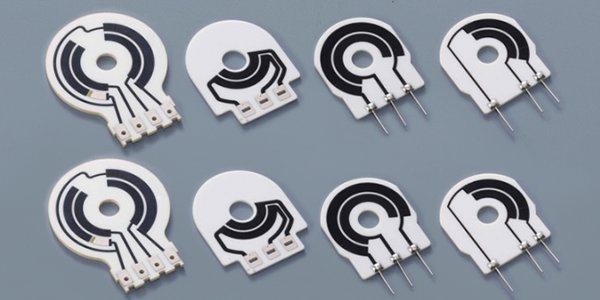

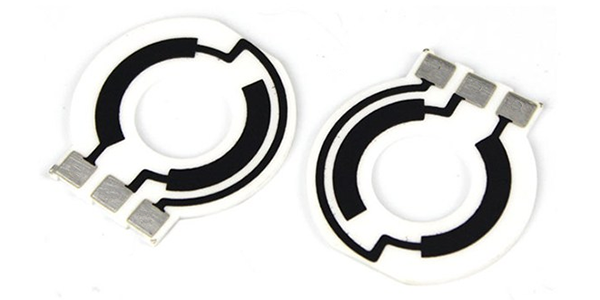

Ceramic Potentiometer Carbon PCB

Ceramic Potentiometer Carbon PCBs, also called Ceramic Potentiometer PCBs, are printed circuit boards that integrate potentiometer functionality by printing conductive carbon elements onto a ceramic substrate to form a voltage divider, making them ideal for controlling current or voltage in various systems, while the ceramic substrate offers excellent high-frequency performance, stability, and heat resistance, making it ideal for high-power electronics, aerospace, and military applications, with superior thermal conductivity compared to FR4, enabling better heat dissipation, reduced thermal stress, and enhanced reliability.

Ceramic Potentiometer Carbon PCBs are produced through a series of high-precision processes. Conductive carbon elements are either printed or laser-etched onto the ceramic substrate to create a voltage divider with precise control over resistance. The ceramic material undergoes high-temperature sintering, which improves its thermal stability and durability. The manufacturing process requires high-precision equipment to ensure the stability and reliability of the potentiometer’s performance. This attention to detail ensures the PCB meets rigorous industry standards for durability and functionality in demanding environments.

Ceramic Potentiometer Carbon PCBs are known for their high stability, excellent resistance to environmental conditions, and long service life. The ceramic substrate offers remarkable resistance to heat and moisture, allowing the product to function reliably in extreme conditions. The carbon elements provide precise and accurate voltage division, ensuring consistent performance. Compared to FR4-based PCBs, ceramic substrates offer superior thermal conductivity, minimizing overheating risks. The combination of ceramic materials and carbon-based elements also enhances the mechanical strength and electrical performance of the PCB, making it suitable for high-power, high-load applications.

Ceramic Potentiometer PCBs are widely used across several industries due to their outstanding performance. They are especially valuable in high-power electronics, aerospace, and military applications, where stability and high-temperature resistance are critical. These PCBs are also integral to industries such as automotive, medical, industrial, and consumer electronics, particularly in systems that require precise voltage control. Whether in high-frequency signal processing or power management systems, Ceramic Potentiometer Carbon PCBs provide reliable and efficient performance, meeting the needs of complex and demanding environments.

Features of Ceramic Potentiometer Carbon PCB :

● High Mechanical Stability: Ceramic PCBs have high mechanical strength and rigidity, providing excellent structural stability. They can withstand mechanical stress, vibrations, and harsh environmental conditions, reducing the risk of damage or failure compared to other PCB materials.

● Design Flexibility: Due to their dimensional stability, ceramic PCBs allow designers to achieve smaller and more compact designs. This flexibility is especially valuable in applications with limited space or where miniaturization is required.

● High-Temperature Resistance: Ceramic materials exhibit excellent high-temperature resistance, making them suitable for high-temperature environments such as engine control systems, spacecraft, and military devices.

● Excellent Thermal Conductivity: Ceramic Potentiometer Carbon PCBs have low thermal impedance and good heat dissipation properties, effectively conducting heat to maintain stable operation of electronic devices.

● Low Dielectric Constant and Loss: Ceramic PCBs have low dielectric constants and dielectric loss, making them ideal carriers for high-frequency electronic components. They can better maintain signal accuracy and stability during high-frequency signal transmission, reducing signal distortion and interference.

● Durability and Reliability: Ceramic PCBs are more durable than standard FR4, with greater material rigidity. These properties ensure reliable performance and a longer lifecycle for ceramic printed circuit boards.

● Chemical Stability: Ceramic materials have higher resistance to chemical compounds, making them suitable for industrial, medical, automotive, and aerospace applications.

● Low Loss Angle: Due to their high dielectric constant, ceramic PCBs have better signal integrity in high-frequency signal designs, making them suitable for telecommunications and wireless sensor networks.

● Electromagnetic Interference and Compatibility: Ceramic Potentiometer Carbon PCBs perform better in terms of electromagnetic interference and compatibility, as they can act as shielding through isolation layers.

● Customizable Design: Due to their flexibility and robustness, ceramic PCBs can be customized for complex mechanical and electrical design aspects, leading to widespread use of multilayer ceramic PCBs.

Ceramic Potentiometer Carbon PCBs also have some drawbacks, including complex manufacturing processes, higher costs, and the brittleness of the material. These factors can increase production time and manufacturing costs and may require skilled technicians or specialized facilities. Additionally, ceramic PCBs are generally more expensive than traditional PCB materials like FR4, primarily due to the special ceramic materials and manufacturing processes involved.

Applications of Ceramic Potentiometer PCB:

1. Automotive Industry:
● Control Systems: Used in dashboard instruments for adjusting settings like air conditioning and audio controls.

● Sensors: Integrated into vehicle sensors for feedback systems, ensuring accurate readings under varying conditions.

2. Industrial Equipment:
● Process Control: Implemented in machinery to adjust and regulate processes such as temperature, pressure, and flow.

● Robotics: Used in robotic systems for fine control and adjustments in actuators and motors.

3. Consumer Electronics:
● Audio Equipment: Employed in volume and tone controls in audio devices, providing precise adjustments for users.

● Home Appliances: Found in adjustable settings for appliances like microwaves, coffee makers, and washing machines.

4. Medical Devices:
● Diagnostic Equipment: Integrated into devices like blood pressure monitors and glucose meters for precise calibration.

● Therapeutic Devices: Used in infusion pumps and adjustable therapy devices, allowing for accurate dosage control.

5. Telecommunications:
● Signal Processing: Utilized in equipment that requires tuning and adjustment of signal levels to optimize performance.

● Networking: Found in routers and switches for managing data flow and ensuring reliable connections.

6. Aerospace and Defense:
● Avionics Systems: Used in control panels for aircraft, enabling adjustments to navigation and communication systems.

● Military Equipment: Employed in devices requiring high reliability and stability under extreme environmental conditions.

7. Lighting Control:
● Dimming Controls: Implemented in dimmer switches for residential and commercial lighting, allowing users to adjust brightness levels.

● LED Drivers: Used in LED lighting systems for precise current control, enhancing energy efficiency.

8. Environmental Monitoring:
● Sensing Devices: Integrated into environmental monitoring equipment to adjust parameters for detecting air and water quality.

● Weather Stations: Used in meteorological instruments for calibrating measurements of temperature, humidity, and pressure.

9. Home Automation:
● Smart Devices: Found in smart home systems for controlling lighting, heating, and security features with user-friendly interfaces.

● Remote Controls: Employed in remote control systems for televisions, audio systems, and other home devices.

Process Capabilities of Ceramic Potentiometer PCB :

Items	Typical Values
1, Substrates :	FR4, Alumina (Ceramic), Polyimide (Flexible PCB), Stainless Steel (SUS304), Mica
2, Conductors Material :	Copper, Silver , Gold , Silver-Palladium, Palladium-Gold
3, Thick Film Carbon Thickness (height) :	15um +/-5 um
4, Silver Palladium Thickness (height) :	12um+/-5um
5, Minimum Width of Thick Film Traces :	0.25 mm +/-0.05 mm
6, Minimum Spacing of Thick Film Traces :	0.25 mm +/-0.05 mm
7, Minimum Footprint (Carbon to Copper) :	No less than 0.20mm
8, Sheet Resistivity (ohms/square):	Printed resistors in milli ohm to mega ohm range (Customizable) with tolerances of 1-10% are fabricated and protected with overglaze materials
9, Resistor Value Tolerance :	+/-10.0% (Standard) (Customizable)
10, Linearity :	+/-1.0% (Standard) (Customizable)
11, Synchronism of Potentiometers (Double Channels) :	+/-2.0% (Standard) (Customizable)
12, Durability of Carbon Ink (Life time) :	0.5 Million (Min), 2.0-5.0 Million (Standard)
13, Working Temperature :	－ 40℃ /＋150℃

For more information, Please refer to Thick Film Potentiometer PCB.
