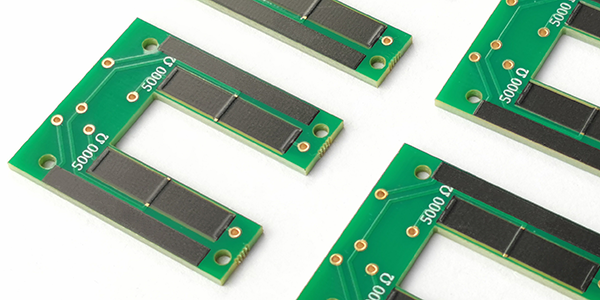

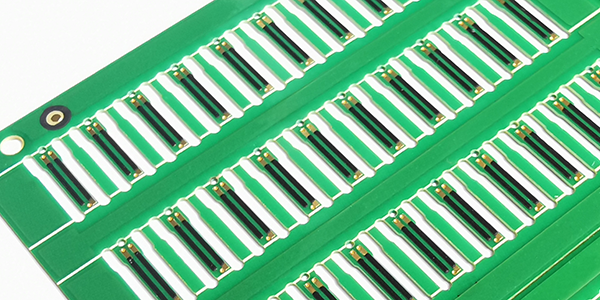

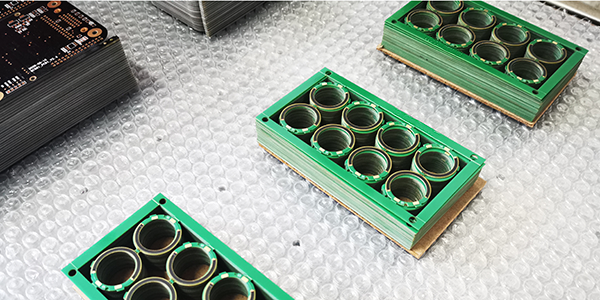

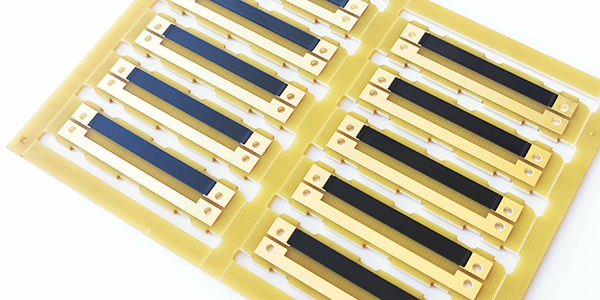

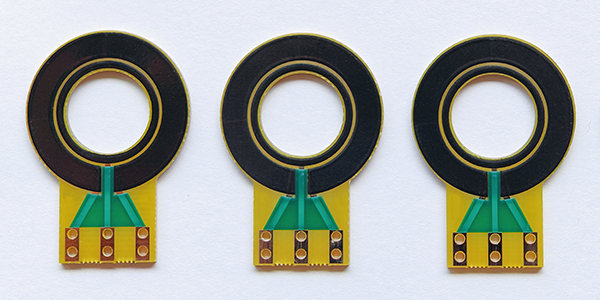

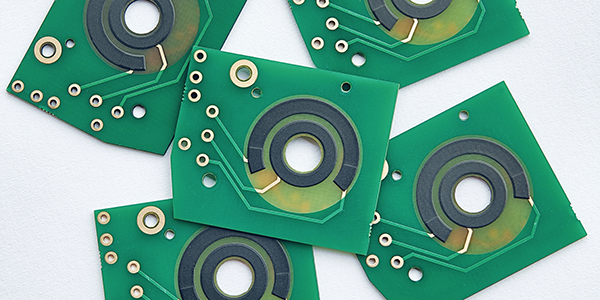

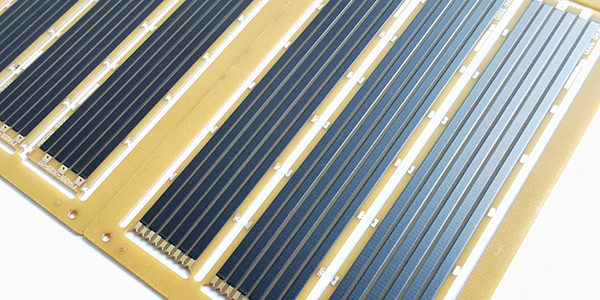

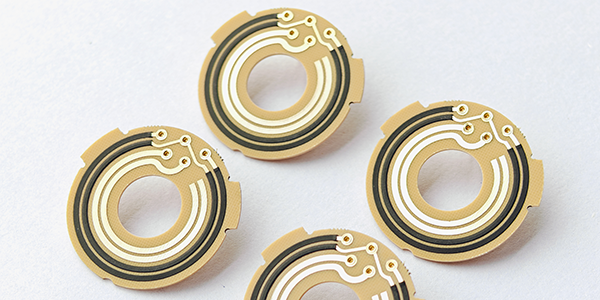

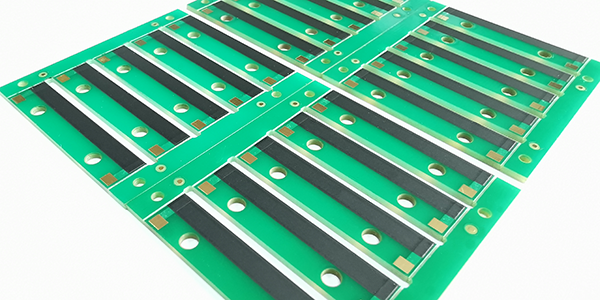

FR4 Potentiometer Carbon PCB

FR4 Potentiometer Carbon PCBs are printed circuit boards made from FR4 substrates that incorporate carbon elements to form voltage dividers, enabling the functions of linear potentiometers, rotary potentiometers, and logarithmic potentiometers, while effectively integrating or embedding the potentiometer module directly onto the PCB surface, saving assembly space, reducing manufacturing costs, and enhancing circuit design efficiency by increasing circuit board integration and simplifying electrical connections.

FR4 Potentiometer Carbon PCBs are produced by combining traditional PCB manufacturing techniques with the integrated design of carbon-based potentiometers. FR4 Potentiometer Carbon PCBs use FR4 substrates made from fiberglass cloth and epoxy resin, which provide excellent electrical insulation and mechanical strength. In the manufacturing process, carbon elements are precisely distributed across the PCBs to create potentiometer functions that control current and voltage. This production method enhances the functionality of the PCBs while ensuring their long-term reliability and stability.

FR4 Potentiometer Carbon PCBs combine the advantages of FR4 materials with the functional characteristics of carbon-based potentiometers. FR4 Potentiometer Carbon PCBs offer excellent electrical insulation, mechanical strength, and processing capabilities, making them cost-effective for large-scale production. The carbon-based potentiometer modules ensure precise voltage adjustments, durability, and outstanding performance, making these PCBs suitable for a variety of electronic devices. Furthermore, FR4 Potentiometer Carbon PCBs provide higher integration, saving space and reducing the complexity of traditional potentiometer connections.

FR4 Potentiometer Carbon PCBs are widely used in various electronic applications that require precise voltage control. FR4 Potentiometer Carbon PCBs are ideal for use in audio adjustments, automation equipment, consumer electronics, and other devices. Their high integration makes them particularly advantageous for space-constrained or compact designs. Additionally, FR4 Potentiometer Carbon PCBs are suitable for products that require long service life and high stability, such as sensor adjustments and control systems.

Features of FR4 Potentiometer Carbon PCB :

● Electrical Performance: FR4 material has good electrical insulation properties, with a dielectric constant (Dk) typically ranging from 4.25 to 4.55 and a dissipation factor (Df) of about 0.016 to 0.02. This helps improve signal quality, insulation, and impedance control.

● High-Temperature Resistance: The glass transition temperature (Tg) of FR4 material is usually between 150°C and 170°C, with a decomposition temperature above 345°C, making FR4 PCBs suitable for high-temperature environments.

● Mechanical Strength: FR4 has high mechanical strength, allowing it to withstand mechanical stress and impact, which enables it to perform well under various environmental conditions.

● Cost-Effectiveness: Compared to other high-performance materials, FR4 is relatively inexpensive and readily available, making it an ideal choice for most electronic designs.

● Versatility: FR4 material is suitable for single-sided, double-sided, and multilayer PCBs, and can be customized according to specific design and performance requirements.

● Flame Resistance: FR4 material contains halogens (such as bromine), providing flame-retardant properties, typically meeting the UL94 V-0 flame rating standard.

● Thermal Treatment: The melting point of FR4 laminated boards is 203°C, with high chemical resistance and a low loss factor (Df 0.0025). It has stable and low dielectric constant (Dk 2.35) properties, making it a thermoplastic material.

● Wide Application: Due to its excellent performance and cost-effectiveness, FR4 PCBs are widely used in consumer electronics, communication devices, home appliances, and general industrial applications.

FR4 material also has some limitations, such as its performance in high-frequency applications, which may not be as good as specialized high-frequency materials due to its dielectric properties limiting its use at very high frequencies. Additionally, the thermal conductivity of FR4 is relatively low, which may become a limiting factor in high-power applications. Nevertheless, due to its balanced performance and cost, FR4 material remains a highly popular choice in the electronics industry.

Applications of FR4 Potentiometer Carbon PCB :

FR4 Potentiometer Carbon PCBs are versatile components used in a variety of electronic applications. Here are some key applications where these PCBs are commonly utilized:

1. Consumer Electronics
● Audio Equipment: Used in volume control and equalization circuits, allowing users to adjust sound levels.

● Home Appliances: Found in devices like washing machines and microwaves for controlling settings and functionalities.

● Gaming Controllers: Implemented in joystick and button inputs for adjusting sensitivity and responsiveness.

2. Automotive Systems
● Dashboard Controls: Employed in adjustable components like dials and knobs for controlling radio volume, climate settings, and other vehicle features.

● Electronic Control Units: Used for managing various automotive functions, including engine control, transmission, and safety systems.

3. Medical Devices
● Patient Monitoring Equipment: Integrated into devices that require user input for adjusting settings or calibrating measurements.

● Therapeutic Devices: Utilized in devices such as infusion pumps and adjustable drug delivery systems for precision control.

4. Industrial Equipment
● Process Control Systems: Implemented in manufacturing machines for monitoring and adjusting operational parameters.

● Robotics: Used in feedback systems for position sensing and adjustment of robotic arms and tools.

5. Telecommunications
● Signal Conditioning: Found in equipment that requires tuning and adjustment of signal levels for optimal performance.

● Networking Equipment: Used in devices such as routers and switches for managing data flow and power levels.

6. Computer Peripherals
● Input Devices: Employed in keyboards, mice, and touchpads for sensitivity adjustments and function settings.

● Monitors and Displays: Used in brightness and contrast controls, allowing users to modify display settings easily.

7. Lighting Control Systems
● Dimmers: Used in light dimmers for adjusting brightness levels in residential and commercial lighting systems.

● Smart Lighting: Integrated into systems that allow remote or automated control of lighting fixtures.

8. Home Automation
● Smart Home Devices: Utilized in devices that require user interface adjustments for controlling temperature, security settings, and entertainment systems.

9. Research and Development
● Prototyping: Frequently used in R&D settings for developing and testing new electronic products that require variable resistors.

10. Aerospace and Defense
● Avionics: Employed in control panels for adjusting various flight and navigation parameters.

● Military Equipment: Used in devices requiring robust performance under extreme conditions.

FR4 Potentiometer PCBs are essential components across various sectors, providing adjustable control in a wide range of electronic applications. Their reliability, durability, and cost-effectiveness make them a popular choice for both consumer and industrial products.

Process Capabilities of Potentiometer PCB :

Items	Typical Values
1, Substrates :	FR4, Alumina (Ceramic), Polyimide (Flexible PCB), Stainless Steel (SUS304), Mica
2, Conductors Material :	Copper, Silver , Gold , Silver-Palladium, Palladium-Gold
3, Thick Film Carbon Thickness (height) :	15um +/-5 um
4, Silver Palladium Thickness (height) :	12um+/-5um
5, Minimum Width of Thick Film Traces :	0.25 mm +/-0.05 mm
6, Minimum Spacing of Thick Film Traces :	0.25 mm +/-0.05 mm
7, Minimum Footprint (Carbon to Copper) :	No less than 0.20mm
8, Sheet Resistivity (ohms/square):	Printed resistors in milli ohm to mega ohm range (Customizable) with tolerances of 1-10% are fabricated and protected with overglaze materials
9, Resistor Value Tolerance :	+/-10.0% (Standard) (Customizable)
10, Linearity :	+/-1.0% (Standard) (Customizable)
11, Synchronism of Potentiometers (Double Channels) :	+/-2.0% (Standard) (Customizable)
12, Durability of Carbon Ink (Life time) :	0.5 Million (Min), 2.0-5.0 Million (Standard)
13, Working Temperature :	－ 40℃ /＋150℃

For more information, Please refer to Thick Film Potentiometer PCB.
