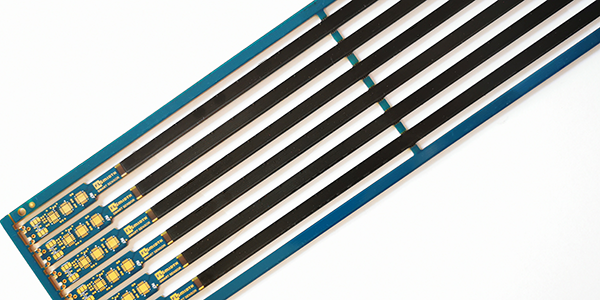

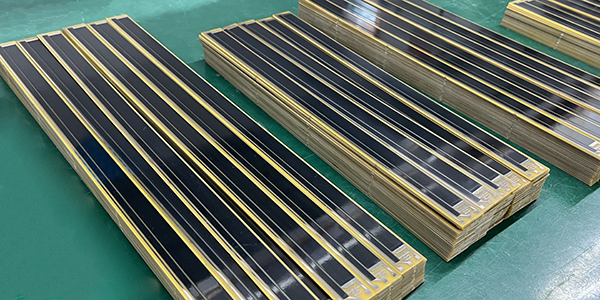

Linear Potentiometer Carbon Track PCB

Linear Potentiometer Carbon Track PCBs, also called Linear Potentiometer Carbon PCBs, are resistor components specifically designed for linear potentiometers based on thick-film resistor technology, with the primary function of changing the resistance value linearly with the position of the wiper to provide an output voltage proportional to the position, offering accurate and predictable voltage variations, available in both single-turn and multi-turn designs to meet various adjustment needs, and their uniform resistance change characteristics make them widely applicable for high-precision voltage or current control.

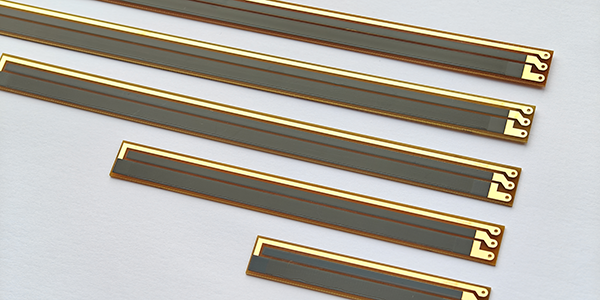

Linear Potentiometer Carbon Track PCBs use thick-film resistor technology to print conductive carbon elements onto the PCBs, replacing traditional mechanical potentiometers. This design allows the potentiometer modules to be directly integrated or transferred onto the surface of the PCBs, saving assembly space and offering more design options for developers. Additionally, these integrated designs significantly reduce manufacturing costs and increase production efficiency. The products' linear resistance change characteristics ensure accurate and linear voltage variation when voltage is applied across their ends.

Linear Potentiometer Carbon PCBs are widely used in electronic devices, especially in audio equipment, automatic control systems, and any applications requiring precise voltage or current adjustment. Their primary applications include volume control, analog signal adjustment, and position feedback, particularly in scenarios requiring stable and precise voltage changes. Due to their compact structure and ease of integration, these PCBs not only optimize product designs but also enhance reliability and lifespan, making them indispensable components in modern electronic devices.

Features of Linear Potentiometer Carbon Track PCB :

Linear Potentiometer Carbon Track PCBs are specialized types of variable resistors that integrate the functionality of potentiometers directly onto printed circuit boards. Here are the key features from a production and technology perspective:

● Thick-Film Technology: Resistive element is created using thick-film printing technology, which prints a conductive carbon paste with a high resistance value onto the PCB. This process allows for precise control over the resistance characteristics of the track.

● Linearity Tolerance: Linear Potentiometer Carbon Track PCBs are designed to maintain a linear relationship between the slider position and the resistance value, typically with a tight tolerance, often less than 1.0%, ensuring accuracy and consistency.

● Durability: Carbon track is known for its durability and long service life (nomally life-time>5 million), with the ability to withstand many cycles of operation without significant wear.

● Customization: Linear Potentiometer Carbon Track PCBs can be customized in terms of resistance value, tolerance, track length, and other parameters to suit specific application requirements.

● Cost-Effectiveness: By integrating the potentiometer directly onto the PCB, assembly space is saved, and manufacturing costs are reduced.

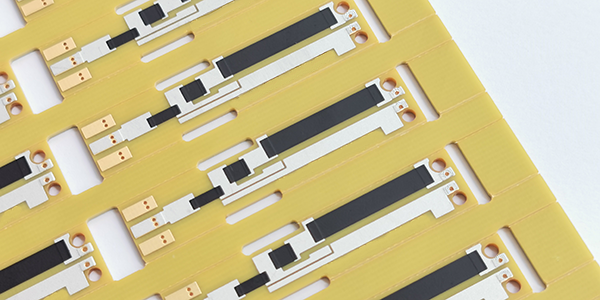

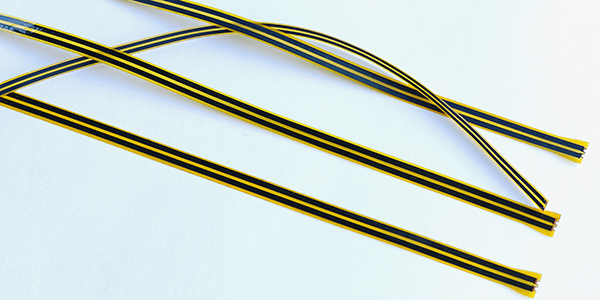

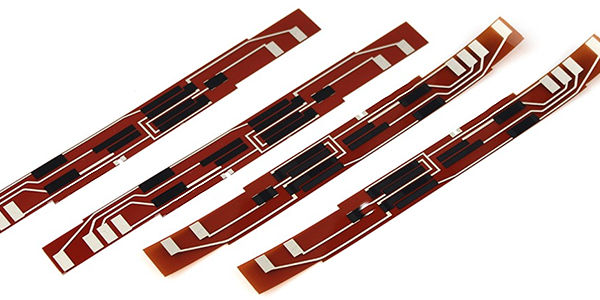

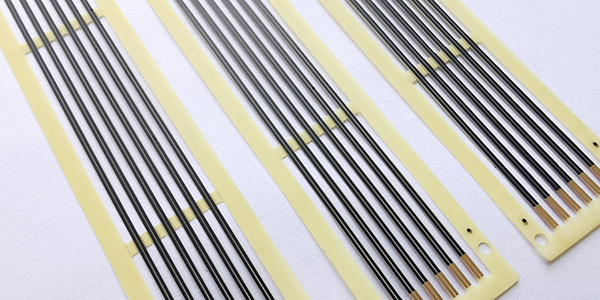

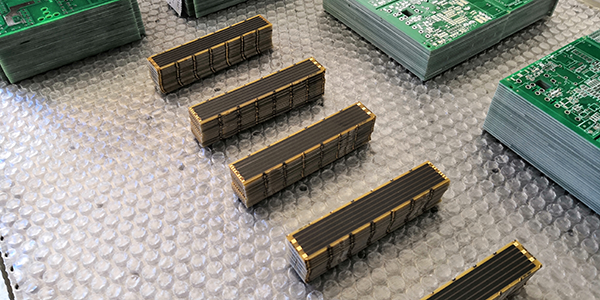

● Substrate Options: Resistive element can be printed on various substrates such as FR4, polyimide (flexible PCB), or ceramic, offering flexibility in design and application.

● Environmental Stability: Carbon track is less sensitive to environmental factors such as temperature and humidity, ensuring stable performance over a wide range of conditions.

● Voltage Division: Like traditional potentiometers, they function as voltage dividers, providing a variable output voltage that is proportional to the slider position.

● Integration: The ability to integrate these potentiometers directly into the PCB simplifies the design process and reduces the number of components needed for assembly.

● Long Life Span: High-quality carbon track PCB potentiometers can endure tens of thousands of cycles, making them suitable for applications requiring long-term reliability.

Linear Potentiometer Carbon Track PCBs offer a precise, durable, and cost-effective solution for applications requiring adjustable resistance and voltage division, with the added benefits of simplified assembly and design flexibility.

Applications of Linear Potentiometer Carbon Track PCB :

Linear Potentiometer Carbon Track PCBs are integrated into a variety of applications where precise control and measurement of linear or rotational movement is required.

● Linear Position Sensors: Linear Potentiometer Carbon Track PCBs are used to measure linear displacement in machines and devices such as actuators and positioning systems.

● Control Systems in Vehicles: Linear Potentiometer Carbon Track PCBs can be found in steering systems, idle speed control modules, and blower motors in automobiles and motorcycles.

● Industrial Automation: Used in industrial machinery for controlling and adjusting machine functions, such as（plastic injection moulding machines）.

● Audio Equipment: Commonly used in audio control systems for adjusting volume or tone.

● Medical Devices: Linear Potentiometer Carbon Track PCB can be integrated into medical equipment for precise control mechanisms.

● Agricultural and Heavy Duty Machinery: Utilized in steering systems and other control systems that require potentiometers.

● Valve Positioning: Linear Potentiometer Carbon Track PCBs can be used to control the position of valves in various systems.

● Joysticks and Hand Controllers: Found in gaming controllers and industrial control handles.

● Motor Control: Used for applications like throttle control and suspension adjustment.

● Instrument Panels: Linear Potentiometer Carbon Track PCBs can be used in instrument clusters for various adjustments and settings.

● Industrial Doors: For monitoring the status of industrial doors.

● Solar Panels: Used for controlled tracking of solar panels to optimize sunlight exposure.

● Wind Turbines: Linear Potentiometer Carbon Track PCBs can be used to adjust the position of turbine blades.

● General Machine Control: For the regulation of power and control in various types of machinery.

These applications benefit from the durability, precision, and cost-effectiveness of Linear Potentiometer Carbon Track PCBs, making them a popular choice in both consumer and industrial electronics.

Production Process of Linear Potentiometer Carbon PCB :

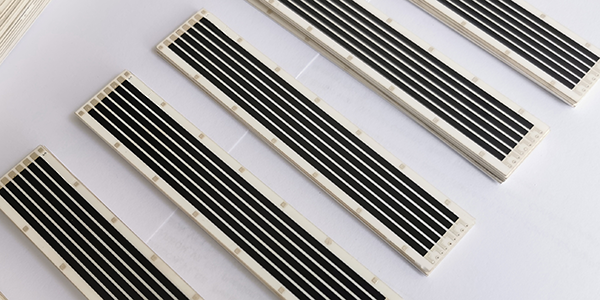

● Substrate Preparation: Common options include FR4, flexible polyimide (PI), aluminum oxide (Al2O3), and aluminum nitride (AlN). Each material has its characteristics: FR4 is cost-effective, flexible PI allows for bending, and ceramics provide high thermal conductivity and excellent electrical insulation.

● Paste Preparation: Mix conductive materials such as carbon powder, glass frit, and organic binders to create a thick-film resistor paste suitable for printing.

● Screen Printing: Utilize screen printing technology to apply the resistor paste onto the substrate, forming the desired resistance trace.

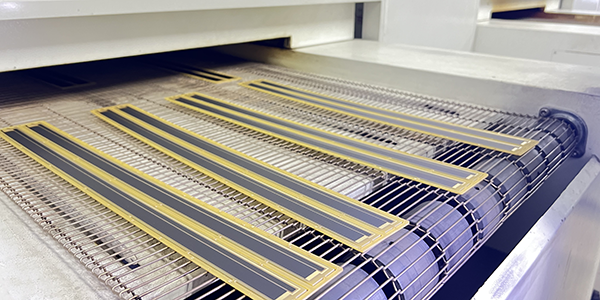

● Drying: Dry the printed substrate to evaporate solvents from the paste, ensuring that the remaining material adheres properly to the substrate.

● Sintering: Place the dried substrate in a high-temperature furnace for sintering, which solidifies the paste and forms a stable resistive layer.

● Laser Trimming: Use a laser trimming machine to fine-tune the resistance traces after sintering, achieving precise resistance values and linearity.

● Testing and Sorting: Conduct electrical performance tests on the finished products to ensure they meet specification requirements. Sort the products based on their resistance values.

● Final Inspection: Perform a comprehensive inspection that includes checking appearance, dimensions, and performance to guarantee product quality.

Throughout the entire production process of Linear Potentiometer Carbon PCBs, They are essential to strictly control environmental conditions and process parameters at each step to ensure consistency and reliability of the final product. This attention to detail helps in minimizing defects and enhancing the overall performance of the potentiometers.

Common Types of Potentiometer Carbon PCB :

Potentiometer Carbon PCBs developed based on thick film resistor technology has two common types:
● Linear Potentiometer Carbon Track PCB.
● Rotary Potentiometer Carbon Track PCB.
The main difference between these two common types of potentiometer PCBs lies in their adjustment methods and application scenarios. Linear potentiometers are typically used where precise and predictable adjustments are needed, while Rotary Potentiometers are better suited for applications requiring continuous and smooth adjustments.

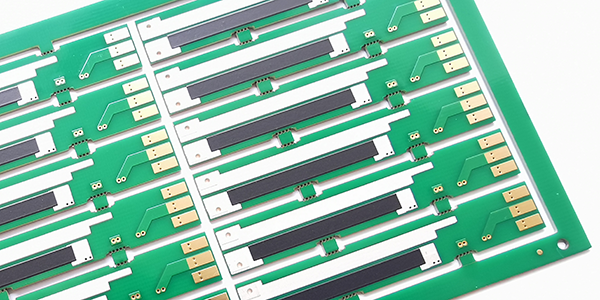

1, Linear Potentiometer Carbon Track PCB :
● Resistance Variation Pattern: The resistance change of a linear potentiometer is linearly related to the angle of its movement or rotation. This means that as the wiper or knob of the potentiometer moves, the resistance value changes uniformly, and the output voltage is proportional to the rotation angle or sliding distance.

● Adjustment Method: Linear potentiometers can be single-turn or multi-turn. A single-turn potentiometer returns to its starting position after one or several rotations, while a multi-turn potentiometer can continuously rotate multiple turns, providing finer adjustments.

● Functionality: The resistance value of a linear potentiometer changes linearly with the position of its wiper, offering voltage or resistance changes that are proportional to the wiper's position. This characteristic makes linear potentiometers ideal for applications requiring precise control of voltage or current.

● Applications: They are commonly used in electronic devices for volume control, analog signal adjustment, instrument calibration, and any scenario requiring linear adjustments. For instance, in audio systems, linear potentiometers can control the gain of signals, or they can be used in precision measuring devices to adjust measurement parameters.

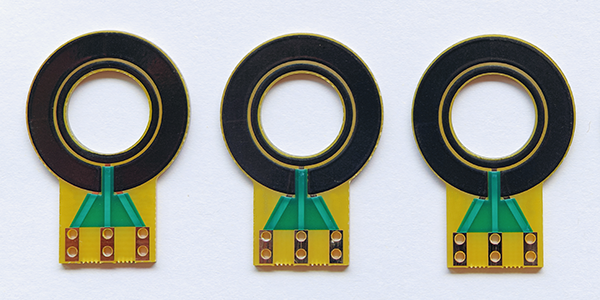

2, Rotary Potentiometer Carbon Track PCB :
● Resistance Variation Pattern: The resistance change of a rotary potentiometer can be linear, logarithmic, or exponential, depending on the design of the potentiometer. For example, a logarithmic potentiometer (Type C) experiences smaller resistance changes at the beginning of rotation, while the resistance change becomes larger as it approaches the maximum resistance end.

● Adjustment Method: Rotary potentiometers change their resistance values through a rotational action, commonly used to obtain adjustable power supply voltages for certain electronic circuits.

● Functionality: Rotary potentiometers adjust their resistance values through rotation, typically used in applications requiring continuous adjustments. They can be linear or logarithmic (where the resistance change corresponds exponentially to the rotation angle), depending on their design and purpose.

● Applications: Rotary potentiometers are widely used in communication devices, car audio systems, household appliances, and medical equipment, where continuous adjustment is needed. For example, in car audio systems, rotary potentiometers can adjust volume or balance. Additionally, they are often used in industrial control and instrument calibration, where non-linear adjustments may be required, such as temperature or pressure control.

Linear Potentiometers provide uniform resistance changes suitable for precise adjustments, while Rotary Potentiometers offer continuous adjustments suitable for smooth control applications.

Process Capabilities of Linear Potentiometer Carbon PCB :

Items	Typical Values
1, Substrates :	FR4, Alumina ( Ceramic), Polyimide (Flexible PCB), Stainless Steel (SUS304), Mica
2, Conductors Material :	Copper, Silver , Gold , Silver-Palladium, Palladium-Gold
3, Thick Film Carbon Thickness (height) :	15um +/-5 um
4, Silver Palladium Thickness (height) :	12um+/-5um
5, Minimum Width of Thick Film Traces :	0.25 mm +/-0.05 mm
6, Minimum Spacing of Thick Film Traces :	0.25 mm +/-0.05 mm
7, Minimum Footprint (Carbon to Copper) :	No less than 0.20mm
8, Sheet Resistivity (ohms/square):	Printed resistors in milli ohm to mega ohm range (Customizable) with tolerances of 1-10% are fabricated and protected with overglaze materials
9, Resistor Value Tolerance :	+/-10.0% (Standard) (Customizable)
10, Linearity :	+/-1.0% (Standard) (Customizable)
11, Synchronism of Potentiometers (Double Channels) :	+/-2.0% (Standard) (Customizable)
12, Durability of Carbon Ink (Life time) :	0.5 Million (Min), 2.0-5.0 Million (Standard)
13, Working Temperature :	－ 40℃ /＋150℃

For more information, Please refer to Thick Film Potentiometer PCB.
