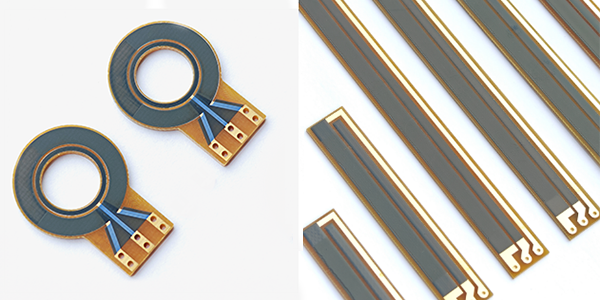

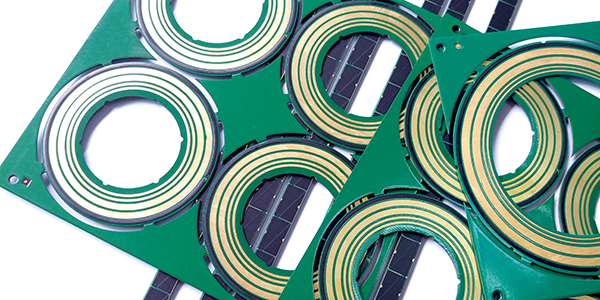

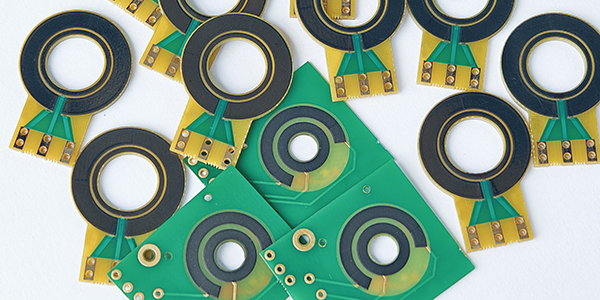

FR4 Position Sensor Carbon PCB

FR4 Position Sensor Carbon PCBs, also called FR4 Position Sensor PCBs, are circuit boards manufactured using FR4 substrates and thick-film resistor technology, specifically designed for position sensor applications, with the primary function of accurately detecting the linear or rotational movements of objects and converting these movements into electrical signals, which provide real-time data for automation control and feedback systems to support the needs of industrial automation, robotics, and other high-precision measurement fields.

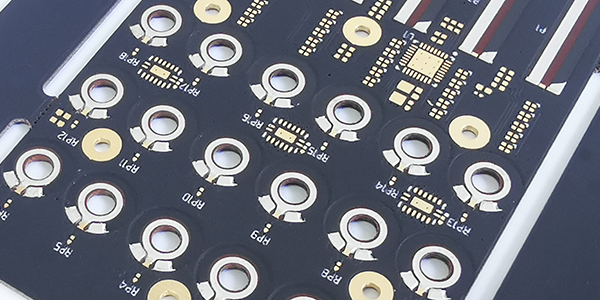

FR4 Position Sensor Carbon PCBs are produced using advanced thick-film resistor technology, combined with precise printing and sintering techniques. The thick-film resistor material is first uniformly applied to the FR4 substrates, then subjected to sintering to stabilize the resistance values. This process ensures the high reliability and stability of the circuit boards over time, especially in varying work environments. The FR4 substrates themselves offer excellent electrical performance and temperature resistance, enabling the circuit boards to function properly in extreme temperatures and other harsh environments.

FR4 Position Sensor Carbon PCBs exhibit excellent temperature resistance and electrical performance, allowing them to operate stably in various extreme environments. Their lightweight structures facilitate easy integration into various devices, reducing the overall weight and complexity of systems. Additionally, the use of thick-film resistor technology ensures high precision and stability in resistance values, enhancing the overall performance and reliability of the systems. These features make the circuit boards highly suitable for applications that require high accuracy.

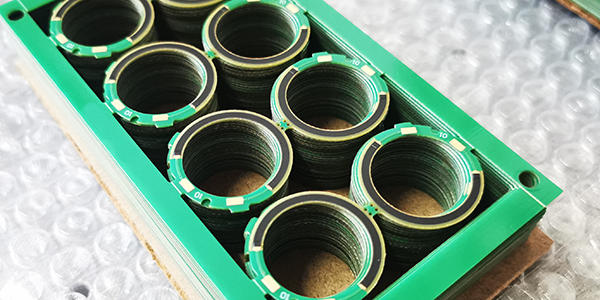

FR4 Position Sensor PCBs are widely used in industrial automation, robotics, and other fields requiring high-precision position measurement. Depending on the specific application, they can be categorized into linear position sensor PCBs and rotary position sensor PCBs. Linear position sensor PCBs are used for detecting linear motion, while rotary position sensor PCBs are designed for monitoring rotational movement. This classification allows FR4 Position Sensor Carbon PCBs to better meet the specific requirements of various industrial and electronic devices, providing flexible solutions that support the stable operation of precision instruments and automation systems.

Features of FR4 Position Sensor Carbon PCB :

● Excellent Dielectric Properties: FR4 material boasts high electrical insulation resistance and low dielectric constant, making it an ideal choice for applications requiring reliable electrical insulation between conductive traces.

● Good Thermal Stability: FR4 PCBs exhibit excellent thermal stability, enabling them to withstand high temperatures during soldering and operation, thus preventing delamination, solder joint failures, and other heat-related issues, ensuring a long lifespan.

● Dimensional Stability: With a low coefficient of thermal expansion, FR4 material provides dimensional stability across a wide temperature range, which is critical for high-density PCB designs.

● Compatibility with Lead-Free Soldering: FR4 Position Sensor Carbon PCBs comply with environmental regulations and industry standards such as RoHS, ensuring that products manufactured with FR-4 PCB materials are safe and environmentally friendly.

● Ease of Fabrication: FR4 material facilitates processes such as drilling, etching, and routing, helping to reduce production costs and labor during manufacturing.

● Versatility: FR4 Position Sensor Carbon PCBs come in various configurations, including single-sided, double-sided, and multi-layer designs, accommodating different design requirements.

● High Mechanical Strength: FR4 demonstrates excellent mechanical strength, ensuring that the circuit board remains stable even under physical stress or vibration.

● Cost-Effectiveness: The relatively low cost of FR4 material makes it a preferred choice for producing reliable and economical PCBs.

● Environmental Adaptability: The balanced mechanical, thermal, and electrical properties of FR4 enable it to meet the demands of various industries while maintaining cost-effectiveness for mass production.

These features make FR4 Position Sensor Carbon PCB the preferred material for many applications, particularly where high reliability and cost-effectiveness are essential.

Applications of FR4 Position Sensor Carbon PCB ：

1, Automotive Industry:
● Sensor Systems: FR4 Position Sensor Carbon PCBs are commonly used in various automotive sensors, such as position sensors, temperature sensors, and acceleration sensors. These sensors help achieve dynamic stability control, braking system response, and driving safety monitoring.

● Electric Drive Systems: In electric vehicles, FR4 PCBs are used in motor control units and battery management systems to ensure precise position detection and power distribution.

2, Consumer Electronics:
● Smartphones and Tablets: In these devices, FR4 Position Sensor Carbon PCBs are used for touchscreen sensors and motion sensors, providing accuracy in user interaction.

● Wearable Devices: For fitness trackers and smartwatches, FR4 PCBs are utilized for monitoring physiological parameters, ensuring data accuracy and reliability.

3, Industrial Automation:
● Robotic Systems: In automated robots, FR4 Position Sensor Carbon PCBs are used in position sensors to achieve precise motion control and path planning.

● Sensor Networks: In industrial equipment, sensor networks using FR4 PCBs monitor production processes in real time, ensuring efficiency and safety.

4, Medical Devices:
● Imaging Equipment: In devices such as CT scanners and MRI machines, FR4 PCBs are used for control and data processing, ensuring imaging quality and equipment stability.

● Diagnostic Tools: In portable and laboratory equipment, FR4 PCBs are used for precise biosensors, aiding in rapid and accurate diagnostics.

5, Aerospace:
● Navigation and Control Systems: Used in flight control computers and navigation systems, ensuring high reliability and performance in extreme environments.

● Satellite Technology: In satellite sensor systems, FR4 Position Sensor Carbon PCBs are employed for precise position and attitude control.

6, Telecommunications:
● Networking Equipment: FR4 Position Sensor Carbon PCBs are widely used in sensor modules for routers and switches, optimizing data transmission and signal processing.

● Base Station Equipment: In signal processing units of base stations, FR4 Position Sensor Carbon PCBs ensure efficient signal capture and transmission.

7, Home Appliances:
● Smart Home Devices: Devices like automated curtains and smart bulbs use FR4 Position Sensor Carbon PCBs for position and status monitoring, enhancing user convenience.

● Robot Vacuums: Employed in position sensing and navigation systems, ensuring efficient cleaning.

8, Renewable Energy:
● Solar Tracking Systems: FR4 Position Sensor Carbon PCBs are used in trackers for solar panels to maximize light capture and improve energy efficiency.

These applications demonstrate the importance and versatility of FR4 Position Sensor Carbon PCBs across various industries, suitable for situations that require high reliability and precision.

Linear VS Rotary Position Sensor Carbon PCB :

1. Operating Principles
FR4 Linear Position Sensor PCB:
● Potentiometer: Utilizes a variable resistor to measure displacement. The movable contact slides along a resistance track, generating a voltage signal proportional to the position.
● Optical Sensors: Detect changes in light using a light source and photodetector, suitable for high-precision linear measurements.
● Magnetic Sensors: Use Hall effect sensors to detect changes in magnetic fields to measure linear displacement.

FR4 Rotary Position Sensor PCB:
● Rotary Encoders: Use optical or magnetic principles to determine angular position by reading scales or stripes on an encoding disk, classified into incremental and absolute encoders.
● Potentiometers: Similar to linear sensors, rotary potentiometers change resistance through rotation, outputting a voltage signal proportional to the angle.

2. Design Structure

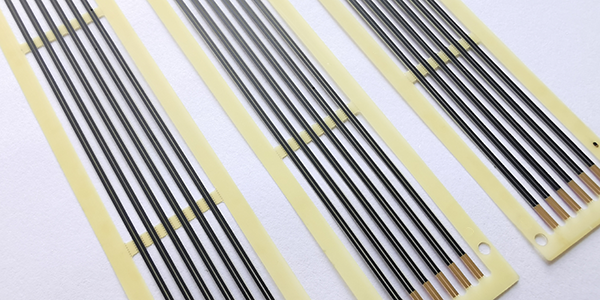

FR4 Linear Position Sensor PCB:
● Typically has a longer circuit layout to ensure effective detection of linear displacement.
● Can be designed as modular, facilitating integration into various mechanical systems.
● May include multiple sensors to improve linear measurement resolution and accuracy.

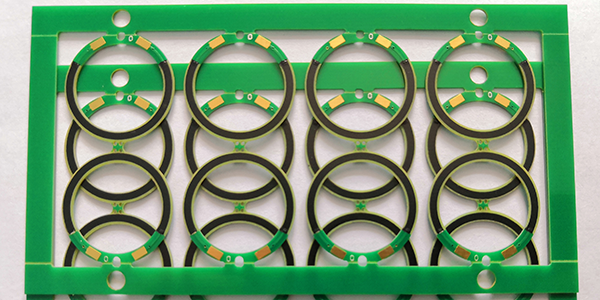

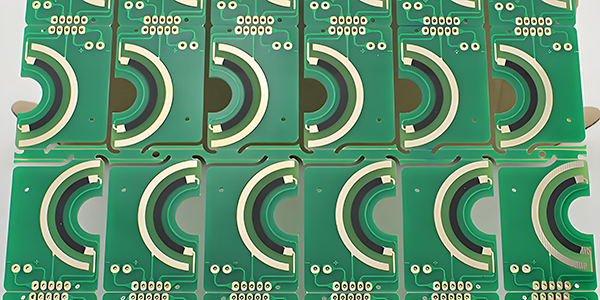

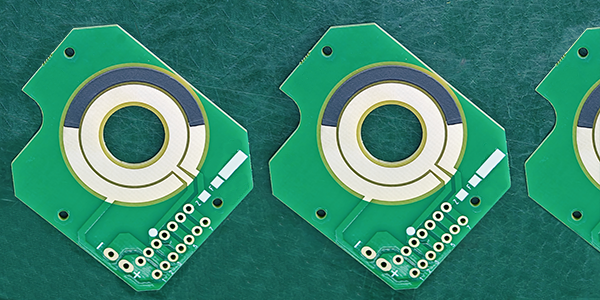

FR4 Rotary Position Sensor PCB:
● Often has a circular or ring layout to fit rotating components' designs.
● The design focuses on compactness to ensure seamless integration with motors or other rotary mechanical elements.
● May incorporate feedback circuits for real-time monitoring of rotational position.

3. Application Scenarios
FR4 Linear Position Sensor PCB:
● Used in industrial automation to detect robotic arm movement or in CNC machines for precise tool positioning.
● Applied in smart home devices, such as automated curtains or door control.
● Utilized in medical equipment for linear displacement monitoring, like in X-ray machines and CT scanners.

FR4 Rotary Position Sensor PCB:
● Commonly used in robotics to monitor angular changes in robotic arms.
● In the automotive industry for controlling steering systems and wheel angle sensors.
● Applied in power tools and household appliances, such as electric switches and speed controllers.

4. Output Signals
FR4 Linear Position Sensor PCB:
● Output signals are typically analog voltage (e.g., 0-10V) or digital signals (e.g., I2C, SPI).
● Advanced models may use multi-channel outputs to accommodate more complex measurement needs.

FR4 Rotary Position Sensor PCB:
● Output signals can be pulse counts (incremental encoders) or direct digital position values (absolute encoders).
● May also used for communication to integrate with other systems.

5. Accuracy and Resolution
FR4 Linear Position Sensor PCB:
● Accuracy usually depends on the sensor's design and materials; for example, using high-quality potentiometers and low-friction sliding tracks can enhance accuracy.
● Resolution is limited by the sensor's minimum detectable displacement, typically in the millimeter range.

FR4 Rotary Position Sensor PCB:
● Rotary encoders offer high accuracy, with common incremental encoders achieving thousands to tens of thousands of pulses per revolution.
● Absolute encoders provide direct angle values, achieving higher measurement precision, suitable for demanding industrial applications.

FR4 Linear Position Sensor Carbon PCBs and FR4 Rotary Position Sensor Carbon PCBs each have unique operating principles and design features, suitable for different application scenarios. Choosing the appropriate sensor type should be based on specific requirements, such as measurement range, accuracy needs, and environmental conditions.

Specification of FR4 Position Sensor PCB :

Items	Typical Values
1, Substrates :	FR4, Alumina (Ceramic), Polyimide (Flexible PCB), Stainless Steel (SUS304), Mica
2, Conductors Material :	Copper, Silver , Gold , Silver-Palladium, Palladium-Gold
3, Thick Film Carbon Thickness (height) :	15um +/-5 um
4, Silver Palladium Thickness (height) :	12um+/-5um
5, Minimum Width of Thick Film Traces :	0.25 mm +/-0.05 mm
6, Minimum Spacing of Thick Film Traces :	0.25 mm +/-0.05 mm
7, Minimum Footprint (Carbon to Copper) :	No less than 0.20mm
8, Sheet Resistivity (ohms/square):	Printed resistors in milli ohm to mega ohm range (Customizable) with tolerances of 1-10% are fabricated and protected with overglaze materials
9, Resistor Value Tolerance :	+/-10.0% (Standard) (Customizable)
10, Linearity :	+/-1.0% (Standard) (Customizable)
11, Synchronism of Potentiometers (Double Channels) :	+/-2.0% (Standard) (Customizable)
12, Durability of Carbon Ink (Life time) :	0.5 Million (Min), 2.0-5.0 Million (Standard)
13, Working Temperature :	－ 40℃ /＋150℃

For more information, Please refer to Thick Film Potentiometer PCB.
