Flexible Sensor PCB

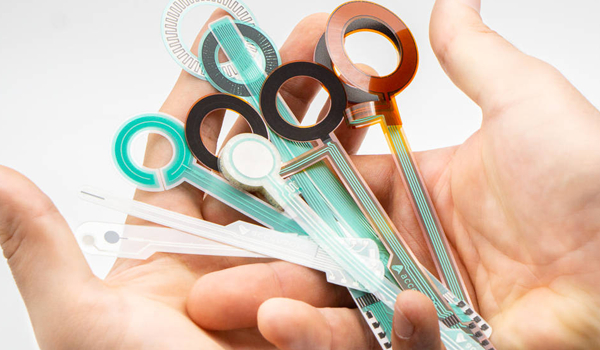

Flexible Sensor PCBs, also called Flexible Electronic PCBs, are electronic components made with flexible substrates like polyimide (PI) or polyethylene terephthalate (PET) and thick-film technology, providing flexibility, durability, and long-term reliability; the manufacturing process includes designing circuits on the substrate, applying conductive materials and sensor elements through screen printing or laser etching, with sensors operating based on principles like resistance, capacitance, or others to maintain stability and accuracy even when bent, stretched, or deformed.

Flexible Sensor PCBs are manufactured through a series of key stages. Initially, the circuit design and layout are created on a flexible substrate, which is commonly made of materials like polyimide or PET. Next, conductive elements, such as copper foil, and other sensing components are applied to the substrate using screen printing or laser etching techniques. Depending on the intended application, various types of sensors, such as resistive, capacitive, or piezoelectric sensors, are integrated into the PCB. The entire manufacturing process is carefully controlled to ensure that the sensors continue to function accurately, even under mechanical stress like bending, stretching, or twisting.

Flexible Sensor PCBs offer several key advantages, including exceptional flexibility, high durability, and reliable performance under deformation. These PCBs can adapt to a variety of shapes and surfaces, making them ideal for use in complex applications that require sensor integration into tight or curved spaces. The use of flexible substrates allows these PCBs to maintain their functionality even when bent or stretched, which is a significant advantage over traditional rigid PCBs. Additionally, they offer high precision in detecting physical changes, particularly in terms of resistance or capacitance variations, making them suitable for advanced sensing tasks in various industries.

Flexible Electronic PCBs have a wide range of applications, particularly in industries where flexible or wearable technology is essential. Due to their ability to detect and respond to external physical changes, they are widely used in wearable devices, smart products, and healthcare monitoring systems. The flexibility and adaptability of these PCBs make them well-suited for integration into unconventional shapes and spaces, allowing their use in applications such as flexible displays, sensors for robotic systems, and even in automotive interiors. As the demand for more integrated, compact, and adaptable electronic solutions grows, Flexible Sensor PCBs continue to play a crucial role in advancing the functionality and design of next-generation products.

Materials of Flexible Sensor PCB :

Flexible Sensor PCBs require advanced materials to meet the demands of flexibility, durability, and performance. The following materials are commonly used:

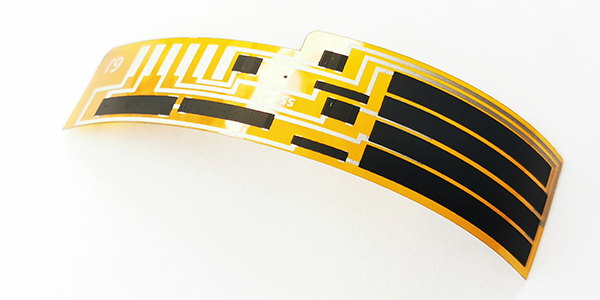

● Polyimide (PI): A widely used material due to its excellent thermal stability, flexibility, and mechanical strength. It is often chosen for its ability to withstand high temperatures, making it ideal for applications in harsh environments.

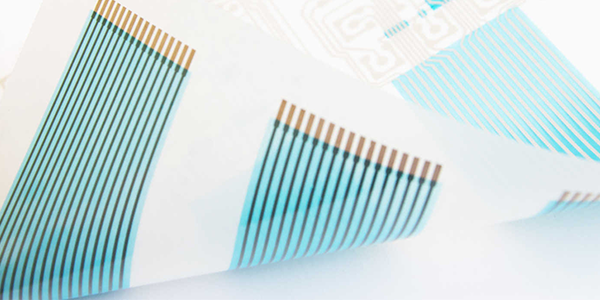

● Polyester (PET): Known for being cost-effective, PET is another popular flexible substrate material, though it may not offer the same high-temperature performance as PI.

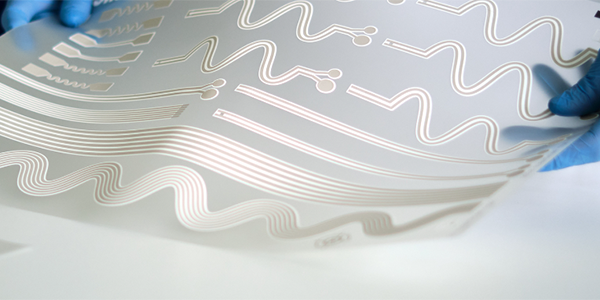

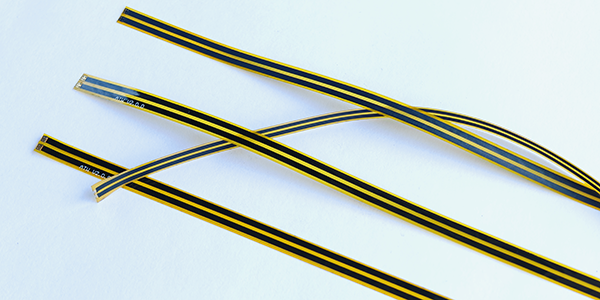

● Conductive and Resistive Paste: For certain flexible circuits, conductive inks, such as silver or carbon-based inks, are used in printing processes, allowing for more customized, low-cost, and lightweight solutions.

● Stretchable Materials: Some recent developments focus on stretchable substrates (like elastomers) and conductive polymers that enable even higher flexibility and stretchability for sensors that need to conform to more extreme deformations.

Types and Mechanisms of Flexible Sensor PCB :

Flexible Sensor PCBs are designed to detect a variety of physical stimuli, and the sensors used can be based on different principles. These include:

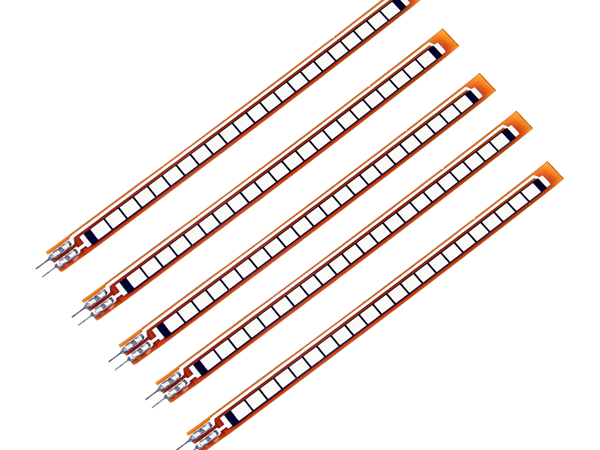

● Resistive Sensors: Flexible Sensors work by measuring changes in resistance due to deformation or stress. When the flexible PCB is bent or stretched, the conductive path changes, altering the resistance, which can be measured to detect the physical change.

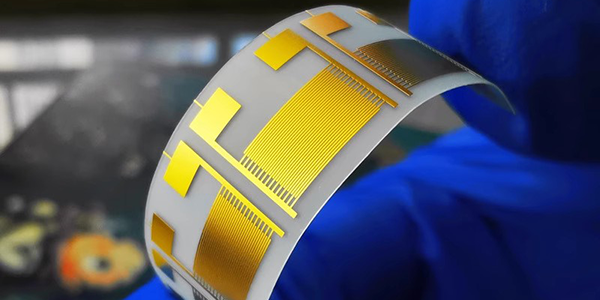

● Capacitive Sensors: Flexible Sensors detect changes in capacitance as the distance between conductive layers varies due to deformation. Capacitive sensors are typically used in touch sensing and proximity detection applications.

● Piezoelectric Sensors: Flexible Sensors generate an electrical charge in response to mechanical stress. They are commonly used for detecting vibrations, pressure, and motion in flexible sensor PCBs.

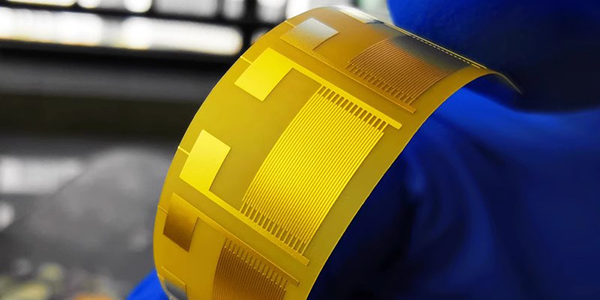

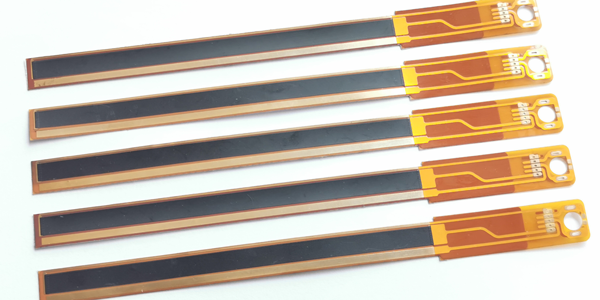

● Strain Gauges: Flexible Sensors are often embedded into flexible PCBs to measure the strain or deformation of a structure. Strain gauges are key components in pressure sensors, force sensors, and load cells.

Wearable Technologies of Flexible Electronic PCB :

Flexible Electronic PCBs play a key role in the development of Internet of Things (IoT) devices and wearable technology. These sensor boards can be integrated into clothing, accessories, or even medical devices to collect real-time data and wirelessly transmit it to other devices. For instance:

● Smart Clothing: Flexible Electronic PCBs are integrated into fabrics to measure physiological parameters like heart rate, temperature, or muscle movement, allowing for seamless monitoring without bulky equipment.

● Health Monitoring Devices: Wearable health monitors often use Flexible Electronic PCBs to measure body temperature, blood pressure, or motion, enabling non-intrusive health tracking.

● Gesture Control: Flexible Electronic PCBs are also employed in wearable devices for gesture recognition, enabling hands-free control of devices or interfaces through simple body movements.

Advantages of Flexible Sensor PCB :

● Conformability: Flexible Sensor PCBs are ideal for applications where traditional rigid sensors cannot be used, as they can be molded to fit complex or curved surfaces, making them ideal for wearable electronics, robotics, and medical patches.

● Lightweight: Flexible Sensor PCBs are typically much lighter than their rigid counterparts, which is especially important in wearable and portable devices.

● Durability: Flexible Sensor PCBs maintain their functionality even under repeated bending, stretching, and environmental stress, offering longevity and reliable performance in demanding conditions.

● Thin Profile: The thin nature of flexible sensor PCBs allows for integration into a wide variety of form factors without adding bulk.

Manufacturing of Flexible Electronic PCB :

● Printed Electronics: In some cases, flexible sensors are produced using printed electronics techniques, where conductive inks are printed directly onto the flexible substrate to create circuits. This process is cost-effective and scalable, making it ideal for mass production of flexible sensors.

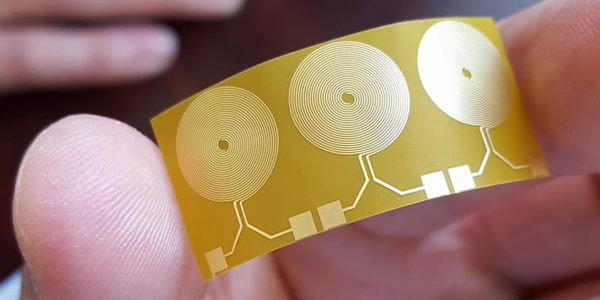

● Laser Processing: Laser technologies are increasingly being used for precise cutting, etching, and patterning on flexible PCBs. This method ensures high accuracy and allows for the production of intricate and complex sensor designs.

● Roll-to-Roll Processing: This is a high-volume production technique where flexible materials are fed through a continuous process, enabling efficient mass production of flexible PCBs. This is particularly useful for creating large quantities of flexible sensors for consumer electronics or medical devices.

Development Challenges in Flexible Sensor PCB :

● Material Limitations: The materials used in flexible sensor PCBs need to be durable enough to withstand long-term deformation while maintaining high performance. This requires the development of new materials with improved properties like stretchability and conductivity.

● Design Complexity: Designing circuits for flexible substrates requires a different approach compared to traditional rigid PCBs. Ensuring that the circuit can maintain reliability and performance under mechanical stresses, while also being lightweight and compact, can be difficult.

● Interfacing and Signal Integrity: Flexible Sensor PCBs often face challenges in maintaining signal integrity, especially when sensors are subject to movement, bending, or stretching. Ensuring that the electrical signals remain accurate under such conditions is a key hurdle to overcome.

Potential Applications of Flexible Sensor PCB :

● Smart Textiles: As flexible sensor PCBs continue to advance, they will likely become integral components in smart textiles, enabling fabric-based devices for health monitoring, fitness tracking, and even interactive clothing.

● Soft Robotics: Flexible sensor PCBs are being explored in soft robotics for sensing pressure, touch, and motion. Their ability to conform to the shape of soft robotic components allows for more natural, human-like interaction.

● Environmental and Structural Monitoring: Flexible sensors are also poised to play an important role in structural health monitoring, particularly in environments where traditional rigid sensors are impractical. For example, they can be used to monitor the condition of bridges, buildings, and pipelines by detecting stress or deformation.

Flexible Sensor PCBs are an exciting and evolving technology that combines the versatility of flexible electronics with the capabilities of various sensing technologies. With the continued advancement of materials, manufacturing processes, and applications, these sensors are poised to play a significant role in future innovations across multiple industries.

Process Capabilities of Flexible Sensor PCB :

Items	Typical Values
1, Substrates :	Polyimide (PI), Polyethylene Terephthalate (PET)
2, Conductors Material :	Copper, Silver , Gold , Silver-Palladium, Palladium-Gold
3, Thick Film Carbon Thickness (height) :	15um +/-5 um
4, Silver Palladium Thickness (height) :	12um+/-5um
5, Minimum Width of Thick Film Traces :	0.25 mm +/-0.05 mm
6, Minimum Spacing of Thick Film Traces :	0.25 mm +/-0.05 mm
7, Minimum Footprint (Carbon to Copper) :	No less than 0.20mm
8, Sheet Resistivity (ohms/square):	Printed resistors in milli ohm to mega ohm range (Customizable) with tolerances of 1-10% are fabricated and protected with overglaze materials
9, Resistor Value Tolerance :	+/-10.0% (Standard) (Customizable)
10, Linearity :	+/-1.0% (Standard) (Customizable)
11, Synchronism of Potentiometers (Double Channels) :	+/-2.0% (Standard) (Customizable)
12, Durability of Carbon Ink (Life time) :	0.5 Million (Min), 2.0-5.0 Million (Standard)
13, Working Temperature :	－ 40℃ /＋150℃

For more information, Please refer to Flexible Thick Film PCB.
