Printed Flexible Electronic PCB

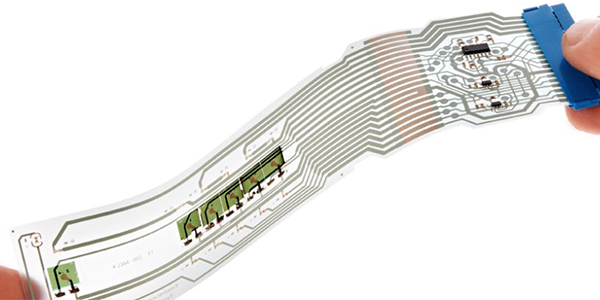

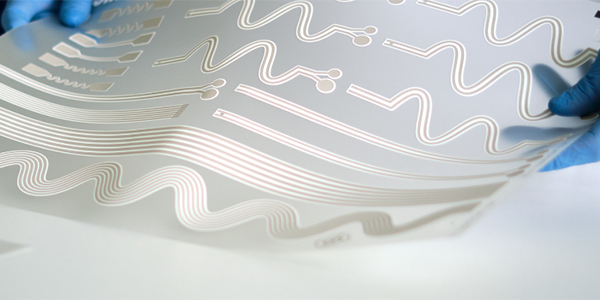

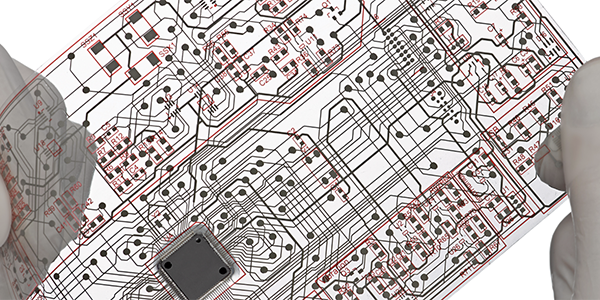

Printed Flexible Electronic PCBs, also called Printed Flexible Sensor PCBs, are special types of printed electronic circuit boards that combine flexible materials with traditional printed electronics technology, using flexible substrates such as polyimide (PI), polyester (PET), or other plastic materials that allow them to bend, fold, and even roll, making them suitable for applications requiring flexibility and thinness, and by utilizing printing technologies, they can be mass-produced at low cost without relying on traditional, expensive manufacturing processes.

Printed Flexible Electronic PCBs' materials and manufacturing processes offer significant advantages. The production process typically employs additive manufacturing techniques such as deposition, inkjet printing, or screen printing, which can directly print conductive inks, semiconductor materials, and insulating layers onto the flexible substrates. Compared to traditional PCB production, Printed Flexible Electronic PCBs allow for more efficient production of small sizes, complex shapes, and large-scale manufacturing at lower costs. This method greatly improves the integration of electronic components while reducing the use of chemicals and energy consumption in traditional manufacturing processes, aligning with environmentally friendly practices.

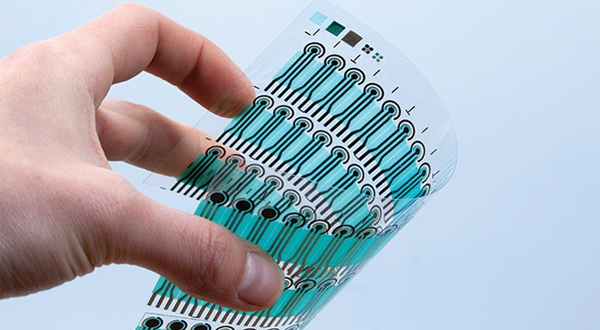

Printed Flexible Sensor PCBs' functionality primarily lies in their ability to perform complex electrical functions in dynamic and confined spaces. Their flexibility enables Printed Flexible Sensor PCBs to be used on curved surfaces, bending devices, or wearable devices, facilitating more innovative product designs. Printed Flexible Sensor PCBs can integrate a variety of electronic functions such as sensors, actuators, and communication modules, achieving a high degree of integration. This design provides flexibility that traditional rigid PCBs cannot, meeting the needs of a wider range of applications.

Printed Flexible Sensor PCBs work similarly to traditional rigid circuit boards, with electrical signals being transmitted to perform electronic functions. The basic operation involves the flow of current through the circuits to transmit signals. Due to their flexible design, Printed Electronic PCBs can function effectively in more complex and confined spaces. They are suitable for applications such as flexible wearable devices, flexible displays, medical sensors, environmental monitoring, and more. Thanks to their unique form, Printed Electronic PCBs demonstrate strong adaptability and reliability in various scenarios that require electrical signal transmission, data collection, and sensor monitoring.

Manufacturing of Printed Flexible Electronic PCB :

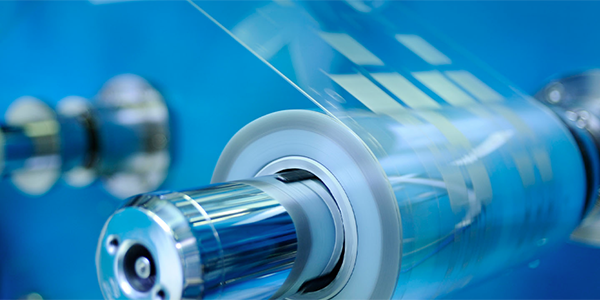

Printed Flexible Electronic PCBs are primarily manufactured using printing technologies, with an emphasis on efficiently and cost-effectively integrating electronic functionality onto flexible substrates. Common manufacturing techniques include:

● Selection of Flexible Substrate: Printed Flexible Electronic PCBs usually use flexible materials such as polyimide (PI), polyester (PET), or other high-performance plastics as the substrate. These materials can withstand bending and stretching without breaking.

● Printing Techniques: Common printing methods include inkjet printing, screen printing, and wet deposition. Inkjet printing can precisely spray conductive ink and other functional materials onto the substrate. Screen printing, on the other hand, uses a stencil to transfer conductive ink onto the board, making it suitable for large-scale production, especially for circuits requiring larger sizes.

● Electronic Inks and Functional Materials: The electronic inks used in Printed Flexible Electronic PCBs are typically composed of conductive materials like silver, copper, or carbon-based materials. These inks are directly transferred onto the substrate via printing, forming the circuit. These inks not only have good electrical conductivity but are also designed to meet the special requirements of flexible materials, ensuring stable performance even when the circuit is bent.

● Layering and Encapsulation: After printing, multiple layers of the flexible circuit board may need to be stacked and encapsulated to ensure stable electrical connections and mechanical protection. Common encapsulation techniques include thin-film encapsulation and 3D printing encapsulation.

Material Properties of Printed Flexible Electronic PCB :

Due to its unique flexible substrates and high-conductivity electronic inks, Printed Flexible Electronic PCBs possess the following material characteristics:

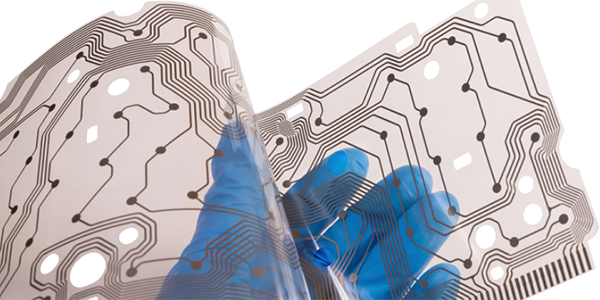

● Good Flexibility and Durability: Because flexible materials like polyimide (PI) are used as substrates, Printed Flexible Electronic PCBs can withstand repeated bending, folding, and stretching without cracking or damaging. This makes them particularly important in electronic products requiring compactness and high integration.

● Thin and Lightweight: Compared to traditional rigid PCBs, Printed Flexible Electronic PCBs are thinner and lighter, which is a huge advantage in applications where miniaturization and portability are essential, such as wearable devices and IoT devices.

● Highly Customizable: Flexible circuit boards can adapt to different shapes, such as curved surfaces or complex 3D structures. Through printing technologies, various shaped circuit boards can be customized to meet specific design requirements for particular products.

Substrates Selection of Printed Flexible Electronic PCB :

● Polyimide (PI): Polyimide is a popular choice for printed flexible sensors due to its excellent flexibility, high-temperature resistance, and good mechanical strength. It can withstand repeated bending and flexing without compromising performance. Polyimide films are often used as both the substrate and insulating layer in flexible electronic devices.

● Polyester (PET): Polyester films, such as polyethylene terephthalate (PET), are widely used as substrates for printed flexible electronics. They offer good flexibility, durability, and transparency while being cost-effective. PET substrates are commonly found in applications like flexible displays, sensors, and wearable devices.

● Polyethylene naphthalate (PEN): PEN films are similar to PET films but have enhanced thermal stability and mechanical properties. They are used for applications that require higher temperature resistance and improved dimensional stability.

● Polycarbonate (PC): Polycarbonate films are known for their high impact strength and excellent optical properties. They find applications in printed flexible sensors that require robustness and transparency, such as touch-sensitive surfaces and display technologies.

● Paper: Paper-based substrates are suitable for certain types of printed flexible sensors, particularly in low-cost or disposable applications. Paper offers some flexibility and is biodegradable, making it environmentally friendly. It is commonly used in applications like RFID tags and disposable medical sensors.

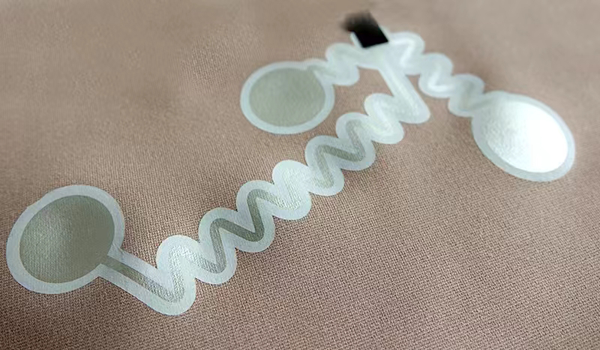

● Fabric: In some cases, flex sensors are constructed on fabric substrates, especially when they are intended for use in wearable applications or smart textiles. Fabric substrates provide flexibility, comfort, and integration with textiles.

Performances of Printed Flexible Sensor PCB :

Printed Flexible Sensor PCBs are similar to traditional rigid PCBs in many ways but also have some unique advantages:

● High Integration and Miniaturization: Because printing technology is used, Printed Flexible Sensor PCBs can integrate more functions and components into smaller spaces, enabling more complex electrical tasks to be performed within a confined area. This makes them indispensable in highly integrated applications such as wearable devices, IoT devices, and more.

● Low Power Consumption and High Efficiency: The design of printed circuit boards focuses not only on size and shape but also on current transmission efficiency. By optimizing circuit layouts and selecting conductive materials, Printed Flexible Sensor PCBs can achieve low power consumption while enhancing electrical performance, making them suitable for high-frequency signal transmission and low-voltage operations.

● Electromagnetic Interference (EMI) Resistance and Stability: Due to improvements in materials and processes, modern Printed Flexible Sensor PCBs can effectively reduce external electromagnetic interference (EMI), ensuring stable and accurate signal transmission.

Applications of Printed Flexible Electronic PCB :

The unique advantages of Printed Flexible Electronic PCBs make them widely used in various advanced applications, especially in products that require flexibility, thinness, and high integration:

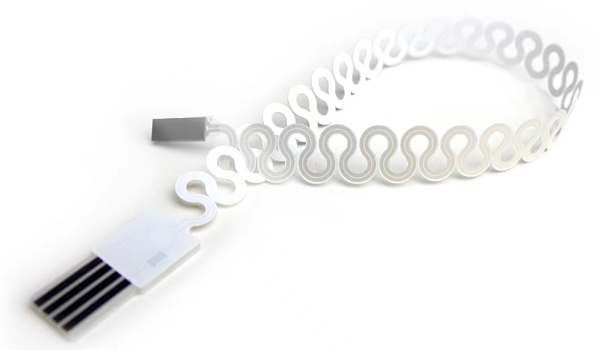

● Wearable Devices: Such as smartwatches, health monitoring devices, and smart glasses, which typically need flexible circuit boards to conform to the curves and dynamic movements of the human body. Printed Flexible Electronic PCBs enable the integration of multiple sensors and communication modules without compromising comfort.

● Flexible Displays: OLED displays and flexible electronic tags require flexible circuit boards to enable curved displays or adaptive shapes. Through Printed Flexible Electronic PCB technology, manufacturers can produce thinner and more flexible displays to meet the market's demand for portability and innovative design.

● Medical Devices and Sensors: Flexible sensors are widely used in the medical field, particularly in wearable health monitoring instruments and in-body sensors. Printed Flexible Electronic PCBs help integrate multiple sensors and monitoring modules, adapting to the dynamic curvature of the human body.

● Environmental Monitoring and IoT: By integrating sensors, data collection modules, and wireless communication modules, Printed Flexible Electronic PCBs can be widely applied in environmental monitoring, smart homes, automotive electronics, and other Internet of Things (IoT) fields.

● Smart Packaging and Tags: Printed Flexible Electronic PCBs are also used in the development of smart tags and smart packaging, which can be embedded in packaging materials to provide real-time data tracking and environmental monitoring features.

● Automotive Industry: Printed Flexible Electronic PCBs find application in the automotive industry for various purposes. They can be used for occupancy detection in airbag systems, tire pressure monitoring, seatbelt tension sensors, gesture control interfaces, and fuel level sensing.

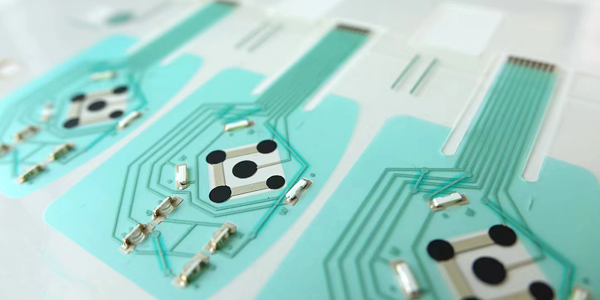

● Human-Machine Interfaces: Printed Flexible Electronic PCBs are integrated into user interfaces for human-machine interaction. They can be used in touch-sensitive surfaces, flexible displays, and interactive control panels, enabling intuitive and responsive control of various devices and systems.

Printed Flexible Electronic PCB is a revolutionary technology that combines flexible materials with efficient printing techniques to solve the needs of emerging applications that traditional rigid PCBs cannot meet. As technology continues to progress, it will further drive the development of smart devices, miniaturized products, and wearable technology.

Advantages of Printed Flexible Sensor PCB :

● Versatility: Printed Flexible Sensor PCBs can be designed to detect a wide range of physical and chemical properties, including temperature, pressure, strain, humidity, and gas concentration. This versatility makes them suitable for a broad range of applications, from medical diagnostics to environmental monitoring.

● Durability: Flexible sensor substrates, such as polyimide and polyester, have excellent mechanical strength and resistance to wear and tear. This makes printed flexible sensors durable, even under challenging environmental conditions.

● Flexibility: As the name suggests, printed flexible sensor PCBs are extremely flexible and conformable, allowing them to adapt to curved surfaces and irregular shapes. This makes them suitable for use in applications where traditional rigid sensors are not feasible.

● Low Cost: Printing techniques used for manufacturing flexible sensors PCB such as screen printing, inkjet printing, and flexographic printing, are generally less expensive than traditional microfabrication techniques. This makes printed flexible sensors a cost-effective option for large-scale production.

● Integration: Printed Flexible Sensor PCBs can be integrated with other electronic components, such as microprocessors, wireless communication modules, and power sources, enabling real-time data processing and remote monitoring capabilities.

● Rapid Prototyping: Printed Flexible Sensor PCBs are easy to design, modify, and prototype. The ability to produce sensors quickly and inexpensively makes it possible to test and refine designs without significant investment in production equipment or materials.

● Lightweight: Printed Flexible Sensor PCBs are typically made on thin and lightweight substrates, making them ideal for applications that require minimal weight and space.

Specification of Printed Flexible Electronic PCB :

Items	Typical Values
1, Substrates :	Polyimide (PI), Polyethylene Terephthalate (PET)
2, Conductors Material :	Copper, Silver , Gold , Silver-Palladium, Palladium-Gold
3, Thick Film Carbon Thickness (height) :	15um +/-5 um
4, Silver Palladium Thickness (height) :	12um+/-5um
5, Minimum Width of Thick Film Traces :	0.25 mm +/-0.05 mm
6, Minimum Spacing of Thick Film Traces :	0.25 mm +/-0.05 mm
7, Minimum Footprint (Carbon to Copper) :	No less than 0.20mm
8, Sheet Resistivity (ohms/square):	Printed resistors in milli ohm to mega ohm range (Customizable) with tolerances of 1-10% are fabricated and protected with overglaze materials
9, Resistor Value Tolerance :	+/-10.0% (Standard) (Customizable)
10, Linearity :	+/-1.0% (Standard) (Customizable)
11, Synchronism of Potentiometers (Double Channels) :	+/-2.0% (Standard) (Customizable)
12, Durability of Carbon Ink (Life time) :	0.5 Million (Min), 2.0-5.0 Million (Standard)
13, Working Temperature :	－ 40℃ /＋150℃

For more information, Please refer to Thick Film Resistor PCB.
