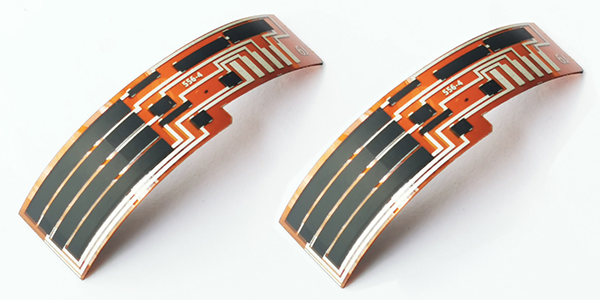

Flexible Position Sensor Carbon PCB

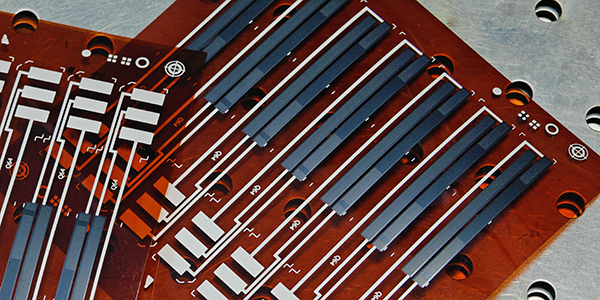

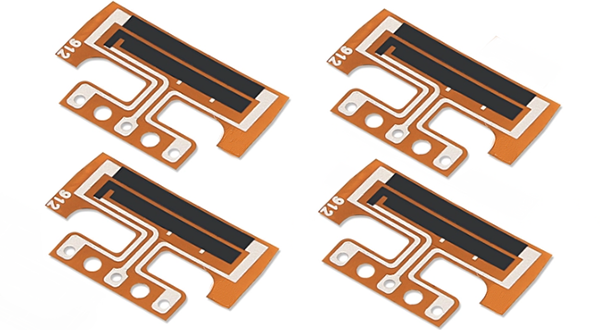

Flexible Position Sensor Carbon PCBs, also called Flexible Position Sensor PCBs, are advanced flexible resistor components that detect changes in linear and rotational positions with high precision by reading variations in resistance values, which are then output as corresponding voltage signals, with linear position sensors typically used for measuring displacement along straight paths in various applications and rotary position sensors used to detect rotational angles, continuously monitoring the resistance of thick-film resistors on flexible polyimide (PI) substrates to provide precise measurements and real-time feedback for accurate position monitoring.

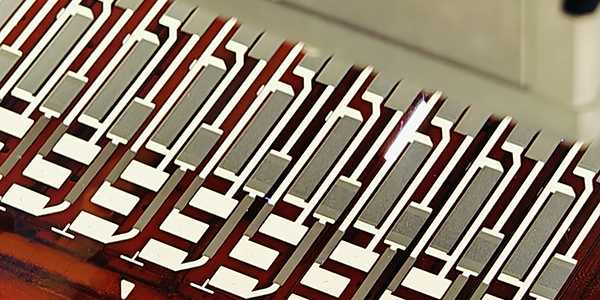

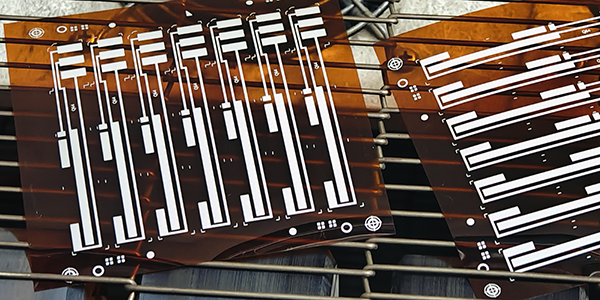

Flexible Position Sensor Carbon PCBs, also called Flexible Position Sensor PCBs, are produced through a detailed manufacturing process that ensures their functionality and reliability. First, flexible polyimide (PI) substrates are coated with thick-film carbon materials. These substrates then undergo a curing process to ensure proper adhesion. The materials are subjected to high-temperature sintering, where the resistive elements are stabilized. Finally, laser trimming is performed to adjust the resistance and ensure the sensors' linearity and accuracy. Through precise control of the sintering and trimming steps, these sensors are optimized to deliver high sensitivity and precision in real-time position measurements.

Flexible Position Sensor Carbon PCBs stand out due to their high sensitivity, accuracy, and adaptability. The flexible polyimide substrates provide exceptional thermal resistance and chemical stability, enabling the sensors to operate effectively in harsh environments. The thick-film resistor technology ensures precise measurements of displacements and rotational angles, even under stringent requirements. Additionally, the flexible design allows these PCBs to be integrated into space-constrained systems, offering enhanced design flexibility and making them suitable for applications where traditional rigid sensors might not be ideal.

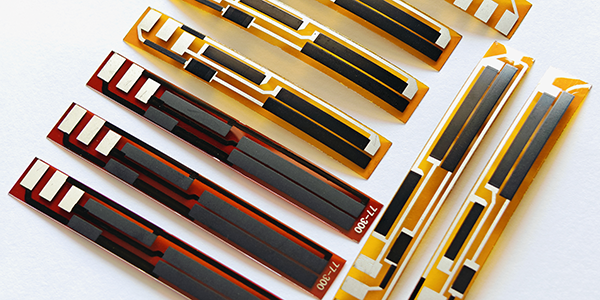

Flexible Position Sensor PCBs are widely used across various industries due to their versatility and precision. In the automotive industry, they are employed for accurate position feedback in electric vehicles and automated systems. In industrial automation, they monitor linear and rotary movements in machinery, robotics, and conveyors. Medical devices, such as robotic surgery systems or diagnostic equipment, also benefit from the accuracy and flexibility of these sensors. Furthermore, their ability to operate in harsh environmental conditions, thanks to the thermal and chemical stability of the flexible PI substrates, makes them ideal for demanding applications requiring reliable position sensing.

Features of Flexible Position Sensor Carbon PCB :

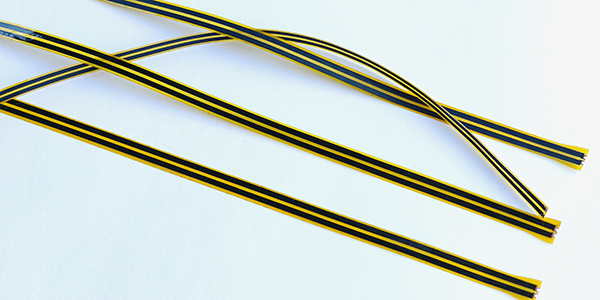

● Flexibility: Flexible Position Sensor Carbon PCBs are made from flexible polyimide materials, allowing them to bend and conform to various shapes and surfaces. This flexibility makes them ideal for applications in compact or irregularly shaped devices.

● High Sensitivity: The thick-film resistor technology used in these sensors ensures high sensitivity, enabling precise measurement of displacement and angles. This feature is crucial for applications that require accurate feedback and control.

● Durability: Flexible Position Sensor Carbon PCBs exhibit excellent thermal resistance and chemical stability, allowing them to withstand harsh environments. This durability ensures reliable performance in applications such as automotive and industrial settings.

● Lightweight Design: The lightweight nature of flexible PCBs reduces the overall weight of the devices in which they are used, making them suitable for portable applications. This can enhance the efficiency and ease of handling in various contexts.

● Customizable Dimensions: Flexible Position Sensor Carbon PCBs can be easily customized in terms of size and shape, enabling designers to create tailored solutions that fit specific application requirements. This versatility allows for greater design freedom.

● Easy Integration: These sensors are designed for straightforward integration into electronic systems. Their compatibility with various components facilitates seamless assembly and reduces production complexity.

● Cost-Effectiveness: The manufacturing process for flexible PCBs can be more cost-effective compared to traditional rigid PCBs, especially in large-scale production. This can lead to reduced overall project costs for developers.

● Environmental Resistance: Flexible Position Sensor Carbon PCBs are resistant to moisture and other environmental factors, making them suitable for outdoor and industrial applications where exposure to the elements is a concern.

● Long Lifespan: With robust materials and construction, these sensors have a long operational lifespan, reducing the need for frequent replacements and maintenance.

● Versatile Applications: The combination of flexibility, sensitivity, and durability allows these sensors to be utilized in a wide range of applications, including robotics, automotive systems, medical devices, and consumer electronics. This versatility broadens their market appeal and usability.

FR4 VS Ceramic VS Flexible Position Sensor PCB :

1, Flexible Position Sensor PCB :

● Advantages:
● Flexibility: The polyimide material offers excellent flexibility, allowing for bending and folding to fit irregular spaces and dynamic environments.

● High Heat Resistance: PI can withstand temperatures above 260°C, making it suitable for high-temperature applications.

● Chemical Resistance: It is resistant to most solvents and acids, ideal for complex chemical environments.

● Low Moisture Absorption: PI has minimal water absorption, providing resistance to humidity and liquids, making it suitable for damp environments.

Disadvantages:
● Higher Cost: Compared to FR4, the cost of PI materials is approximately 5-10 times higher.

● Longer Production Lead Time: The unique materials and processes result in longer production lead times.

● Complex Lamination: Bonding PI to FPC layers is challenging and requires precise lamination techniques.

● Non-Solderable: PI itself cannot be soldered, necessitating metallization of component pads for soldering.

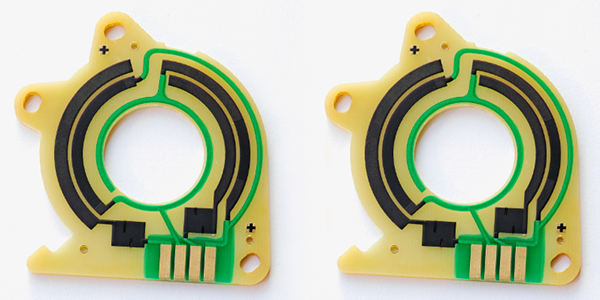

2, FR4 Position Sensor PCB :

Advantages:
● Cost-Effective: FR4 offers good cost efficiency due to its widespread use and established manufacturing processes.

● Mechanical Strength: It possesses good mechanical strength, making it suitable for most consumer and industrial electronics.

● Electrical Insulation: FR4 provides reliable electrical insulation, ensuring circuit reliability.

● Thermal Stability: It has decent thermal stability, suitable for applications with minimal temperature variation.

Disadvantages:
● Poor High-Frequency Performance: With a higher dielectric constant, FR4 is not suitable for high-frequency applications, as signals can easily attenuate.

● Limited Thermal Conductivity: FR4's thermal conductivity is limited, making it unsuitable for high-power or high-heat designs.

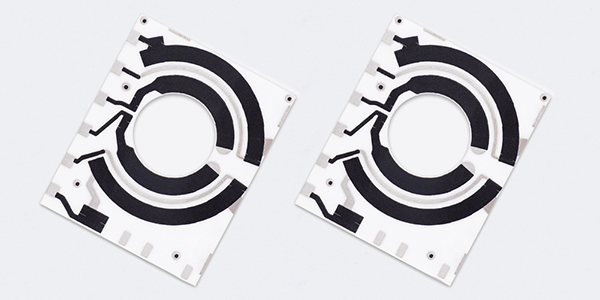

3, Ceramic Position Sensor PCB :

Advantages:
● High Thermal Conductivity: Ceramic substrates exhibit excellent thermal conductivity, ideal for high-power and high-frequency applications.

● Low CTE: Their low thermal expansion coefficient makes ceramics suitable for applications with significant temperature fluctuations.

● Superior Electrical Isolation: Ceramics offer enhanced electrical isolation, suitable for high-voltage and isolation circuits.

● Chemical Resistance: Ceramic materials have a high resistance to chemical compounds, making them suitable for industrial, medical, automotive, and aerospace applications.

Disadvantages:
● Higher Cost: Ceramic substrates are more expensive, and their processing can be complex.

● Processing Difficulty: The processing of ceramic materials is challenging and requires specialized techniques and equipment.

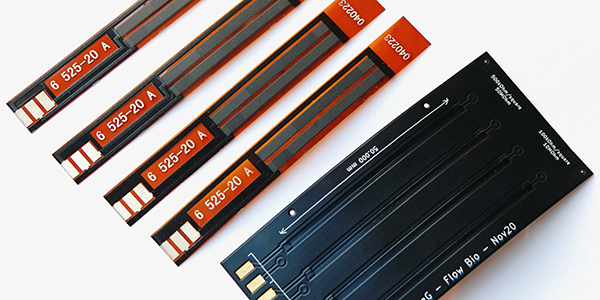

Specification of Flexible Position Sensor PCB :

Items	Typical Values
1, Substrates :	FR4, Alumina (Ceramic), Polyimide (Flexible PCB), Stainless Steel (SUS304), Mica
2, Conductors Material :	Copper, Silver , Gold , Silver-Palladium, Palladium-Gold
3, Thick Film Carbon Thickness (height) :	15um +/-5 um
4, Silver Palladium Thickness (height) :	12um+/-5um
5, Minimum Width of Thick Film Traces :	0.25 mm +/-0.05 mm
6, Minimum Spacing of Thick Film Traces :	0.25 mm +/-0.05 mm
7, Minimum Footprint (Carbon to Copper) :	No less than 0.20mm
8, Sheet Resistivity (ohms/square):	Printed resistors in milli ohm to mega ohm range (Customizable) with tolerances of 1-10% are fabricated and protected with overglaze materials
9, Resistor Value Tolerance :	+/-10.0% (Standard) (Customizable)
10, Linearity :	+/-1.0% (Standard) (Customizable)
11, Synchronism of Potentiometers (Double Channels) :	+/-2.0% (Standard) (Customizable)
12, Durability of Carbon Ink (Life time) :	0.5 Million (Min), 2.0-5.0 Million (Standard)
13, Working Temperature :	－ 40℃ /＋150℃

For more information, Please refer to Thick Film Potentiometer PCB.
