Position Sensor PCB

Position Sensor PCBs, also called Position Transducer PCBs, are electronic sensor components that utilize thick-film resistor technology in their manufacturing process, involving precise screen printing, sintering, and laser trimming to ensure high accuracy and reliability, with these sensors functioning by printing conductive materials onto the PCB to create resistive tracks and using a potentiometer component to convert mechanical displacement into resistance or voltage output, and the output having a linear relationship with the displacement, allowing for precise measurement and control in a variety of applications.

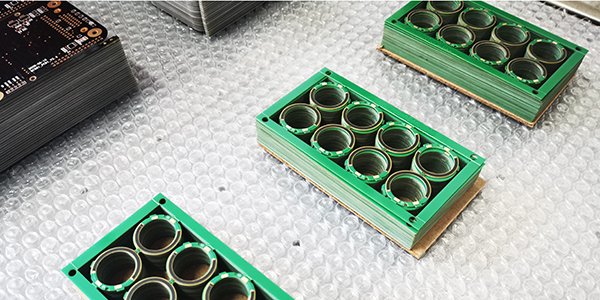

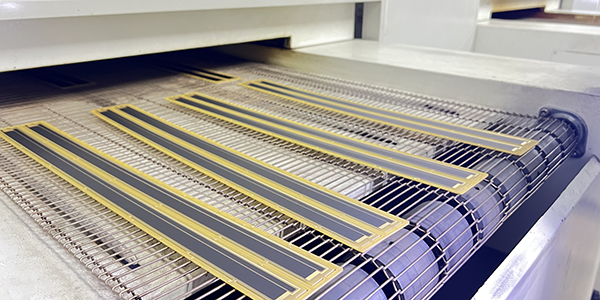

Position Sensor PCBs are manufactured through a detailed process that involves screen printing, resistor sintering, and sometimes laser trimming, ensuring the product's accuracy and stability. Every step in the production is crucial, especially for applications that demand high precision. Material selection is equally important, as the PCB can be made from different substrates, such as FR4, flexible PI, or ceramic substrates, depending on the operating environment. This ensures that the sensor remains stable and reliable in extreme conditions.

Position Sensor PCBs have several remarkable features. Their miniaturization and high precision allow for accurate measurements even in limited spaces. Furthermore, they are highly integrated, often incorporating signal processing, power management, data conversion, and wireless communication modules to meet complex application requirements. These sensors also offer excellent sensitivity and stability, enabling them to perform reliably in various environmental conditions. The use of specialized materials enhances their resistance to interference and ensures a longer operational lifespan.

Position Transducer PCBs find widespread applications in various industries, such as automotive, aerospace, machine tool manufacturing, healthcare, power generation, and robotics. In the automotive sector, they are used in braking and air suspension systems to enhance safety and stability. In machine tool manufacturing, these sensors measure processing conditions, improving automation accuracy. In aerospace, Position Sensor PCBs accurately measure aircraft position and attitude for autonomous navigation and control systems. Additionally, their use is expanding in medical devices, power generation equipment, and robotics, becoming integral to modern high-tech solutions.

Features of Position Sensor PCB :

● High Precision: Position Sensor PCBs are designed for high accuracy in measuring mechanical displacement. This precision is crucial for applications that require exact control over movements, such as in robotics, automotive systems, and industrial machinery.

● Miniaturization: These sensors are compact and can fit into tight spaces. This makes them ideal for applications where size is a constraint, such as in automotive systems, medical devices, and portable electronics.

● Sensitivity: Position Sensor PCBs offer excellent sensitivity, enabling them to detect even minute changes in position. This feature is vital for applications that need to detect small movements or shifts, such as in aerospace and precision engineering.

● Stability and Durability: These sensors are built to withstand harsh environmental conditions, such as extreme temperatures, humidity, and vibrations. The use of high-quality materials ensures that they remain stable and reliable over long periods, even in challenging environments.

● Integration Capabilities: Position Sensor PCBs are often highly integrated, incorporating additional components such as signal processing circuits, power management systems, and even wireless communication modules. This integration allows the sensors to handle complex tasks and perform efficiently in multifaceted applications.

● Anti-Interference: Due to the use of specialized materials and design techniques, Position Sensor PCBs have excellent resistance to electromagnetic interference (EMI). This ensures that the sensors operate reliably in environments with electrical noise, such as in automotive or industrial settings.

● Long Operational Lifespan: These sensors are designed for longevity, providing consistent performance over extended periods. The materials and manufacturing techniques used ensure that they can operate effectively for years without significant degradation.

● Versatility: Position Sensor PCBs can be customized to suit a wide range of applications. They can be tailored in terms of size, output type (analog or digital), and functional characteristics to meet specific industry requirements, making them versatile for use in automotive, aerospace, robotics, healthcare, and other sectors.

Applications of Position Transducer PCB :

● Automotive Industry: Position transducer PCBs are extensively used in automotive systems for applications such as air suspension systems, braking systems, and steering mechanisms. They help in monitoring the position of various components like the throttle, brake pedals, and steering shafts, enhancing safety, stability, and control during vehicle operation.

● Aerospace: In the aerospace industry, Position Transducer PCBs are critical for measuring the position and attitude of aircraft components, such as flaps, rudders, and landing gear. They enable precise control over the movement of these parts for autonomous navigation, flight control systems, and other applications that require high accuracy and reliability.

● Robotics: In robotics, position transducers are used for joint position sensing, actuator control, and overall system movement. They help robots detect and adjust their positions with precision, allowing for tasks such as assembly, material handling, and surgical operations to be carried out with exacting accuracy.

● Industrial Automation: Position transducer PCBs are widely used in automated machinery and CNC (Computer Numerical Control) machines to track the position of tools and workpieces. This allows for high-precision machining, assembly lines, and manufacturing processes to be automated, improving efficiency and consistency.

● Medical Devices: Position sensors are crucial in medical devices, especially in imaging systems (e.g., MRI, CT scans) and surgical equipment, where accurate positioning of components is essential for effective treatment. They are also used in prosthetics and rehabilitation devices, helping patients regain mobility through precision-controlled devices.

● Consumer Electronics: Position sensors are utilized in a range of consumer electronics, from smartphones (for touchscreen calibration and motion sensing) to gaming controllers (for tracking movement). They provide accurate feedback on device orientation and position, improving user experiences in various interactive devices.

● Power Generation: In power generation, position transducer PCBs are used in turbines, valves, and actuators to monitor and control the movement of critical components. They help ensure proper functioning, improve system efficiency, and prevent potential system failures by providing real-time positional feedback.

● Heavy Equipment and Construction: Position transducers are used in construction machinery like cranes, excavators, and loaders to track the position of arms, buckets, and other moving parts. This allows for better control, safety, and operational efficiency during construction projects.

● Marine and Off-Road Vehicles: In marine and off-road vehicle systems, position transducers help track the position of engine components, control systems, and navigation equipment. They are critical for ensuring accurate performance in rugged and harsh environments.

● Renewable Energy Systems: In solar tracking systems, position sensors are used to track the movement of solar panels to optimize their exposure to the sun. They also play a role in wind turbines by monitoring the position of the blades to ensure they operate efficiently and safely.

Product Types of Position Transducer PCB :

Position Transducer PCBs based on thick-film resistor technology can be divided into two main product categories: Linear Position Transducer PCBs and Rotary Position Transducer PCBs.

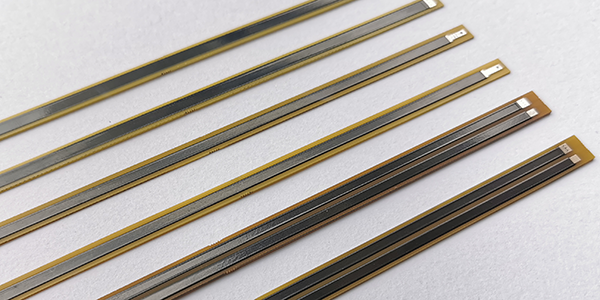

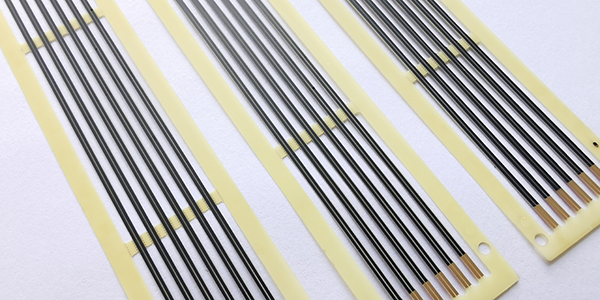

1, Linear Position Transducer PCB:
● This type of sensor PCB utilizes a sliding block or slider that moves along a carbon track, changing the resistance value. The resistance variation is proportional to the distance the slider moves, enabling it to provide very accurate linear output signals.

● Linear Position Transducer PCBs are commonly used in applications requiring precise linear displacement measurement, such as industrial automation control, position feedback for robotic arms, calibration of precision instruments, and position monitoring in medical devices.

● Their advantages include stable performance and high measurement accuracy, along with excellent durability and reliability.

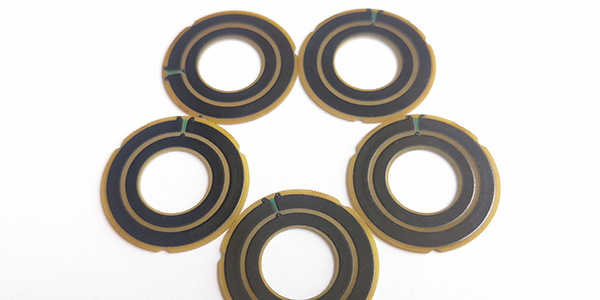

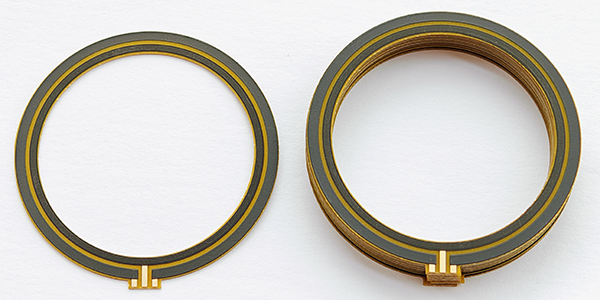

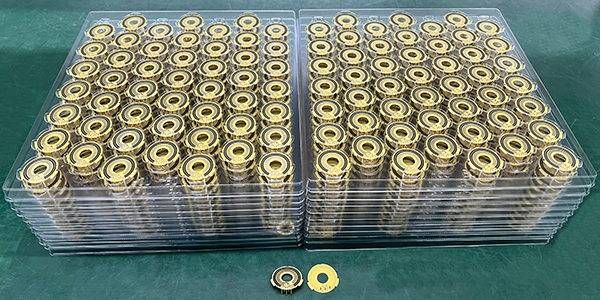

2, Rotary Position Transducer PCB:
● Rotary Position Transducer PCBs change the contact point position on the carbon track through rotational motion, thereby altering the resistance value. This type of sensor converts rotational angles into corresponding resistance changes, with the output signal typically proportional to the angle of rotation.

● Rotary Position Transducer PCBs are widely used in various fields, including automotive, aerospace, and medical devices. Examples include throttle control in automobiles, control systems in aircraft, and rotational adjustments in medical equipment.

● The advantages of these sensors include continuous angle measurement and smooth output signals, making them suitable for applications requiring continuous rotational control.

Both Linear Position Transducer PCBs and Rotary Position Transducer PCBs are essential components for position detection, produced using thick-film resistor technology. Each is tailored for different application scenarios, meeting diverse industrial and technological needs.

Process Capabilities of Position Sensor PCB :

Items	Typical Values

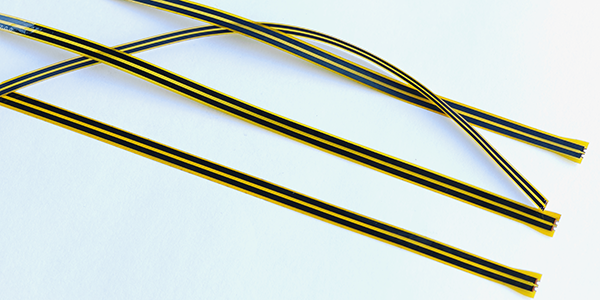

1, Substrates :	FR4, Alumina (Ceramic), Polyimide (Flexible PCB), Stainless Steel (SUS304), Mica
2, Conductors Material :	Copper, Silver , Gold , Silver-Palladium, Palladium-Gold
3, Thick Film Carbon Thickness (height) :	15um +/-5 um
4, Silver Palladium Thickness (height) :	12um+/-5um
5, Minimum Width of Thick Film Traces :	0.25 mm +/-0.05 mm
6, Minimum Spacing of Thick Film Traces :	0.25 mm +/-0.05 mm
7, Minimum Footprint (Carbon to Copper) :	No less than 0.20mm
8, Sheet Resistivity (ohms/square):	Printed resistors in milli ohm to mega ohm range (Customizable) with tolerances of 1-10% are fabricated and protected with overglaze materials
9, Resistor Value Tolerance :	+/-10.0% (Standard) (Customizable)
10, Linearity :	+/-1.0% (Standard) (Customizable)
11, Synchronism of Potentiometers (Double Channels) :	+/-2.0% (Standard) (Customizable)
12, Durability of Carbon Ink (Life time) :	0.5 Million (Min), 2.0-5.0 Million (Standard)
13, Working Temperature :	－ 40℃ /＋150℃

For more information, Please refer to Thick Film Potentiometer PCB.
