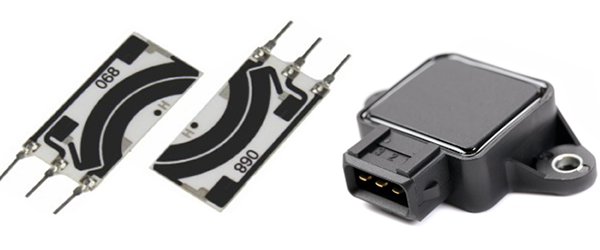

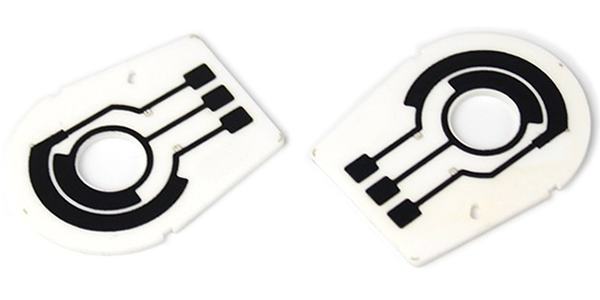

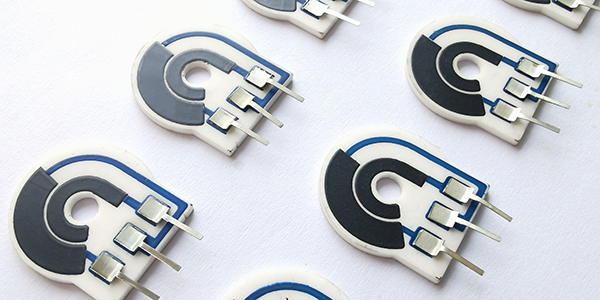

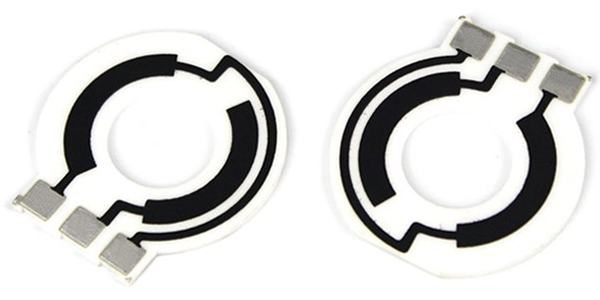

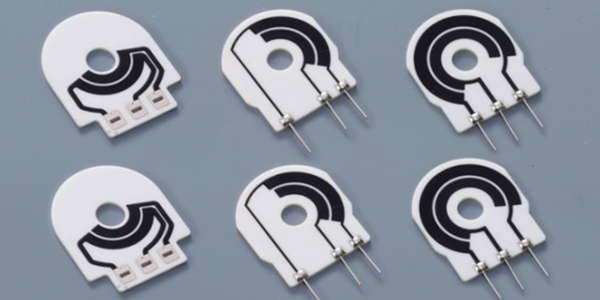

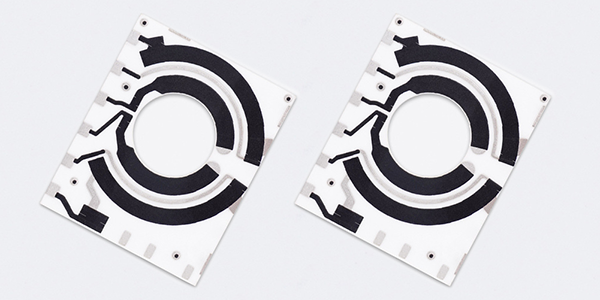

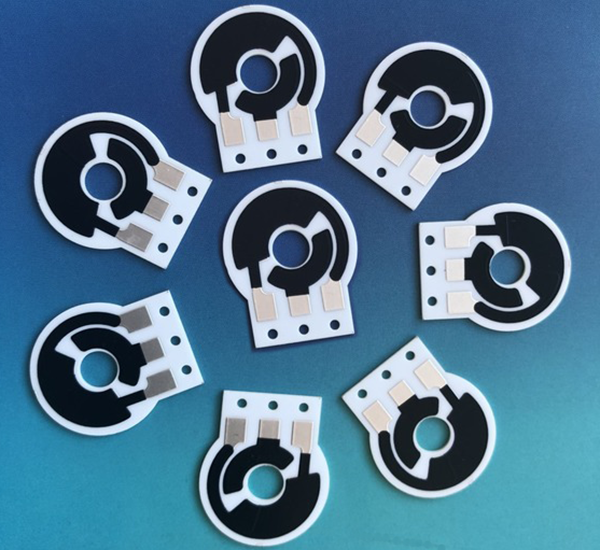

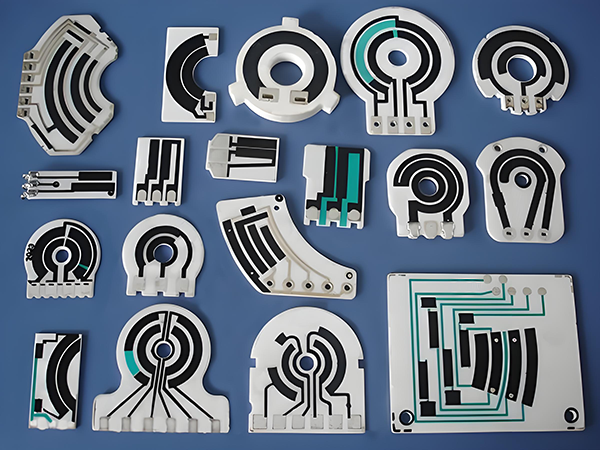

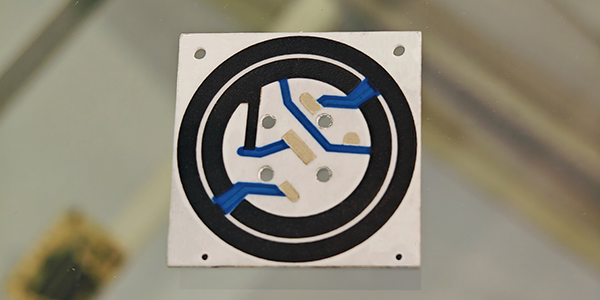

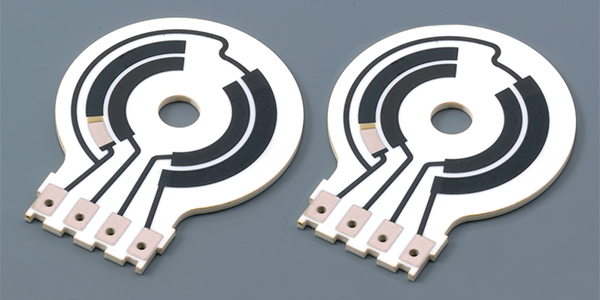

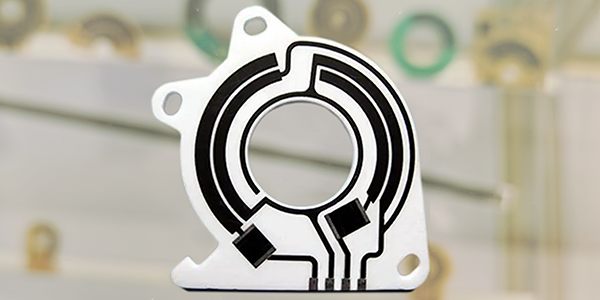

Throttle Position Sensor Ceramic PCB

Throttle Position Sensor Ceramic PCBs, also called TPS Ceramic PCBs, are electronic components designed for use in throttle control systems within vehicles, utilizing ceramic materials as the base substrate and thick-film technology to integrate electronic elements like resistors and capacitors, offering advantages such as high temperature and corrosion resistance to significantly enhance the durability and performance of the sensor in harsh automotive environments.

Throttle Position Sensor Ceramic PCBs are crucial in modern internal combustion engines as they track the position of the throttle valve and transmit this data to the Engine Control Unit (ECU). The ECU uses this information to fine-tune engine parameters such as air-fuel mixture and ignition timing, optimizing engine performance and fuel efficiency. The sensor typically employs a variable resistor or potentiometer to detect changes in the throttle valve's opening, converting these changes into voltage signals that are sent to the ECU.

TPS Ceramic PCBs contribute to improving the overall functionality and stability of the sensor by ensuring precise and reliable resistor performance. Additionally, these sensors are integral in automotive diagnostics, where voltage values are measured at different throttle positions to confirm the proper operation of the throttle position sensor, assisting in vehicle maintenance and repair processes.

Advantages of Throttle Position Sensor Ceramic PCB :

Throttle Position Sensor Ceramic PCBs offer several advantages over other materials, particularly in automotive applications where reliability and performance are critical :

● High-Temperature Resistance: Ceramic materials can withstand higher temperatures without degradation, which is essential for engine management systems that operate in harsh thermal environments.

● Corrosion Resistance: Ceramics are naturally resistant to chemical corrosion, ensuring the longevity of the TPS even when exposed to various fluids and vapors in the engine compartment.

● Improved Reliability: The use of a stable binder system in ceramic PCBs contributes to increased reliability and performance stability over time.

● Environmental Durability: Throttle Position Sensor Ceramic PCBs have shown success in environmental and mechanical testing, suggesting that they can endure the rigors of automotive use.

● Enhanced Resistor Performance: Throttle Position Sensor Ceramic PCBs allow for the improvement of embedded resistors, eliminating the need for special termination treatments and enabling faster laser trim processes with tighter temperature coefficient of resistance (TCR).

● Customizable Resistor Values: The resistivity of the ceramic material can be adjusted to meet specific design requirements, with the option for customization to fit different applications.

● Linearity Tolerance: Throttle Position Sensor Ceramic PCBs can achieve a high degree of linearity, with tolerances of less than +/-1.0%, which is critical for accurate throttle position sensing.

● Resistance Tolerance: The thick film resistors designed on Ceramic Throttle Position Sensor PCBs can be adjusted by laser trimming process to achieve a high-precision resistor value, with tolerances of less than +/-0.5%, or +/-0.5 ohm, which is also critical for accurate throttle position sensing.

● Sintered AgPd Palladium: Some Throttle Position Sensor Ceramic PCBs utilize a special process involving sintered silver palladium, which can improve conductivity and durability.

These advantages make ceramic material a preferred choice for throttle position sensor ceramic PCBs in applications where high performance, reliability, and stability are paramount.

Thermal Properties of Throttle Position Sensor Ceramic PCB :

Throttle Position Sensor Ceramic PCBs are known for their distinct and advantageous thermal properties, as ceramic materials offer excellent thermal conductivity and high-temperature resistance, making them ideal for applications like TPS in automotive environments where components may be exposed to extreme heat.

● Thermal Conductivity: Ceramics have a higher thermal conductivity compared to organic substrates like FR-4, which is an epoxy-based laminate material commonly used in PCB manufacturing. While FR-4 has good mechanical strength and electrical insulation, it has a relatively low thermal conductivity, limiting its ability to dissipate heat.

● High-Temperature Resistance: Ceramic substrates can operate at high temperatures without degrading. This is particularly important for high-power and high-frequency applications, such as TPS in engines, where components may be exposed to sustained high temperatures.

● Thermal Stability: Ceramics offer better thermal stability and lower thermal expansion coefficients compared to some metals. This means that Throttle Position Sensor Ceramic PCBs are less likely to deform or fail due to temperature fluctuations, which is crucial for maintaining the sensor's accuracy and reliability over time.

● Environmental Durability: Ceramic materials are resistant to corrosion and can withstand harsh environmental conditions, including exposure to various fluids and vapors in the engine compartment, thus ensuring the longevity of the TPS.

● Thermal Management: To improve the thermal performance of FR-4, designers might use thicker copper layers, wider traces, thermal vias, or heatsinks. In contrast, ceramic substrates inherently have better thermal management properties, reducing the need for additional thermal management solutions.

● Customization and Performance: Throttle Position Sensor Ceramic PCBs can be customized to meet specific design requirements, including adjusting the resistivity of the ceramic material. They also allow for faster laser trim processes with tighter temperature coefficients of resistance (TCR), contributing to improved performance and reliability.

The thermal properties of ceramic materials provide significant advantages for throttle position sensor ceramic PCBs, including better heat dissipation, high-temperature endurance, and enhanced reliability in harsh automotive environments.

Performance of TPS Ceramic PCB :

TPS Ceramic PCBs are increasingly being implemented in automotive systems, particularly in hybrid and electric vehicles, due to their unique properties that enhance efficiency and performance.

● Thermal Management: TPS Ceramic PCBs have superior thermal conductivity, which is crucial for the battery management system (BMS) in electric vehicles. They help in efficiently dissipating heat generated during operation, preventing component damage due to overheating, and improving the reliability and service life of the entire system.

● Electrical Insulation: Ceramic materials provide high electrical insulation, preventing current leakage in high voltage environments. This is particularly important for components in automotive electronic equipment that require high voltage operation, as it can effectively prevent faults such as short circuits or electric shocks.

● High-Power Applications: In high-power automotive electronics, ceramic PCBs can greatly improve the heat dissipation performance of the system. This ensures that the electric drive system remains stable and efficient under high-power operating conditions.

● Reliability and Longevity: The robust nature of ceramic materials contributes to the reliability of ceramic PCBs. They have a longer lifespan and better resistance to environmental factors like moisture, chemicals, and vibrations, which is essential for the harsh conditions in automotive applications.

● Miniaturization and High Component Density: The high thermal conductivity of ceramics allows for efficient heat dissipation in compact designs, enabling miniaturization and high-density integration of components on the PCB. This is particularly beneficial for the space-constrained environments in hybrid and electric vehicles.

● Chemical Resistance: Ceramic materials are highly resistant to chemicals, solvents, and corrosive substances, making TPS Ceramic PCBs suitable for applications in harsh environments or those involving exposure to chemicals, which is common in automotive use.

● Environmental Compatibility: Ceramics are non-toxic and environmentally friendly, making ceramic PCBs a sustainable choice for various applications, including those in hybrid and electric vehicles that prioritize eco-friendliness.

● Compatibility with Advanced Technologies: TPS Ceramic PCBs are well-suited for emerging technologies such as 5G, autonomous vehicles, and renewable energy systems due to their thermal and electrical properties, which are increasingly important in the automotive industry.

TPS Ceramic PCBs offer a range of benefits that make them an ideal solution for the demanding requirements of hybrid and electric vehicles, particularly in enhancing thermal management, electrical insulation, and overall system reliability.

Capabilities of TPS Ceramic PCB :

● Substrate Materials : Alumina ( 96%AL2O3), Aluminum Nitride (AlN).

● Conductor Material : Copper, Ag/Pd (Silver Palladium), Au/Pd (Gold Palladium).

● Thick Film Thickness (height) : 15um +/-5 um.

● Minimum Width of Thick Film Trace : 0.2 mm +/-0.05 mm.

● Minimum Spacing of Thick Film Trace : 0.2 mm +/-0.05 mm.

● Minimum Width of Footprint (Carbon to Conductor) : 0.25mm (importance).

● Resistance Range : Printed resistors in milli ohm to mega ohm range (Customizable) with tolerances of 1-10% are fabricated and protected with overglaze materials.

● Resistance Tolerance : +/-10% (Standard), or less than +/-1% (Laser trimming).

● Resistance Linearity Tolerance : < +/-1 %, or < +/-0.25 % (Laser trimming).

● Carbon Durability (Life Time) : 5 million minimum.

● Temperature Rating : -40℃/+125℃.

Applications of Throttle Position Sensor Ceramic PCB :

Throttle Position Sensor Ceramic PCBs are engineered for high-performance applications that demand superior heat dissipation, electrical insulation, and resistance to harsh environments. Here are some of the key applications of throttle position sensor ceramic PCBs:

● Automobile Throttle Position Sensors: Throttle Position Sensor Ceramic PCBs are used in automotive applications for their ability to handle high temperatures and provide excellent thermal management, crucial for the reliable operation of TPS in engines.

● Motorcycle Throttle Position Sensors: Similar to automobiles, motorcycles benefit from the heat resistance and stability of ceramic PCBs in their throttle control systems.

● Truck Throttle Position Sensors: Trucks, which often have larger engines and higher power outputs, can leverage the robustness of ceramic materials in their TPS to ensure consistent performance under heavy loads.

● Industrial Throttle Position Sensors: Industrial applications, where equipment may be subjected to extreme temperatures and conditions, can rely on the durability and reliability of ceramic TPS PCBs.

● High-Power Automotive Electronics: Throttle Position Sensor Ceramic PCBs are particularly suited for high-power automotive electronics due to their superior heat dissipation capabilities, ensuring the stability and efficiency of the electrical systems.

Characteristics of Throttle Position Sensor PCB :

Test Item	Standard	Test Method
Linearity of Output Voltage	Should be ≤ 1%	Throttle Position Sensor PCB must maintain a linearity of output voltage that should not exceed ±1% to ensure precise throttle angle measurements. This linearity is tested by recording the sensor's output voltage in relation to the throttle's angular position over multiple full-range cycles.

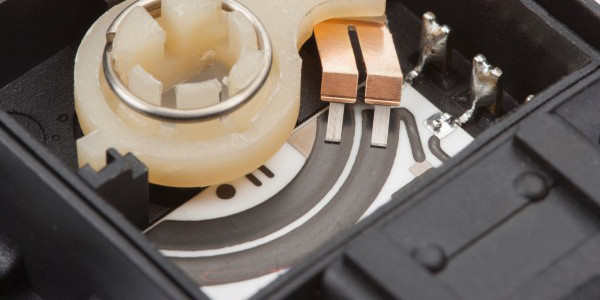

Wear Life (Durability)	Over 5 million cycles	Throttle Position Sensor PCB utilizes a platinum-palladium alloy wire sliding contact wiper, which ensures durability and reliability. The contact pressure with the resistive body is maintained at 0.15 N ± 0.05 N, and the sensor is designed to endure at least 5 million cycles of operation.
Temperature Coefficient	Within specified T.C.R	Throttle Position Sensor PCB's resistive temperature coefficient is kept within specified limits as per IEC 60115-1 4.8, ensuring stable performance across a range of temperatures from +25°C to -40°C, and up to +125°C.
Short Time Overload	(△R/R)≤ 5%	Throttle Position Sensor PCB is tested for short time overload conditions by applying a voltage of 16V for a period of 60 minutes, ensuring it can handle temporary voltage spikes.
Rapid Temperature Changing	(△R/R)≤ 5%	Throttle Position Sensor PCB is subjected to rapid temperature changes, with cycles of -40°C for 30 minutes, a transition to normal temperature for 5 minutes, and then 125°C for 30 minutes, repeated for 5 cycles.
Low Temperature Operation	(△R/R)≤ 5%	Throttle Position Sensor PCB's low-temperature operation is tested by placing it in a low-temperature chamber at -40°C, maintaining the temperature for 1 hour, and then applying a nominal voltage of (5 ± 0.1) V for 48 hours.
Endurance at 70°C	(△R/R)≤ 5%	Throttle Position Sensor PCB's endurance is evaluated at a constant temperature of 70°C ± 2°C for 1000 hours, with a cycle of 1.5 hours ON and 0.5 hours OFF, using the rated voltage or the limiting element voltage, whichever is lower.
Damp Heat Steady State	(△R/R)≤ 5%	Throttle Position Sensor PCB's performance in damp heat conditions is assessed at 40°C ±2°C and 93% ±3%RH for 1000 hours.
Low Temperature Storage	(△R/R)≤ 5%	Thick Film Resistor is tested for storage at low temperatures of -40°C ±1°C for 1000 hours to ensure long-term stability.
High Temperature Storage	(△R/R)≤ 5%	Thick Film Resistor is also tested for storage at high temperatures of 150°C ±1°C for 1000 hours to evaluate its resistance to prolonged exposure to heat.

For more information, Please refer to Thick Film Ceramic PCB.
