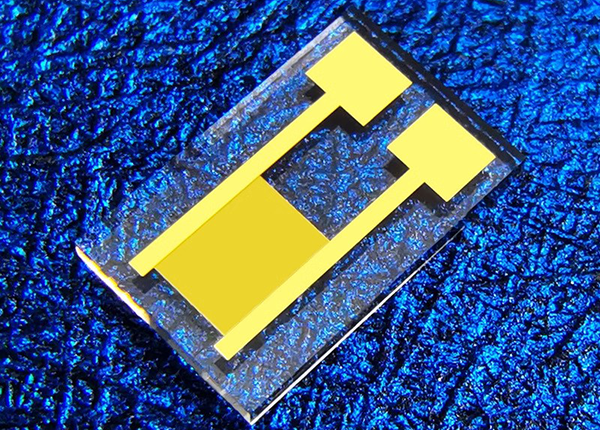

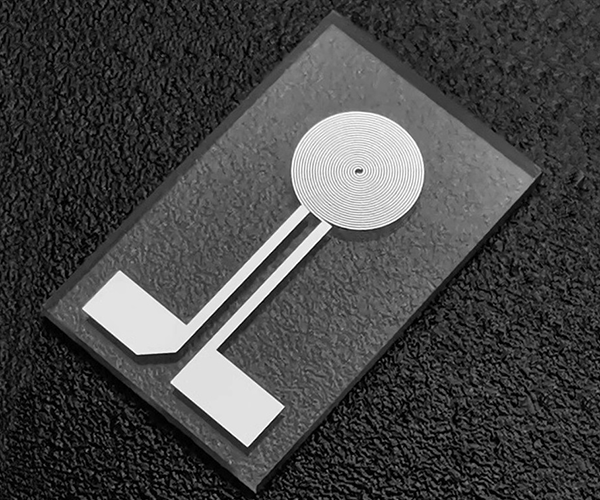

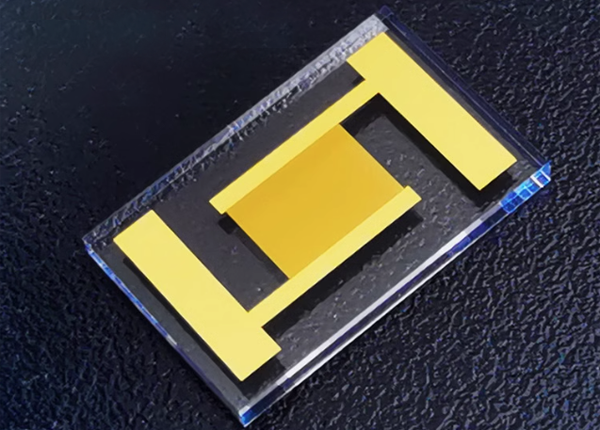

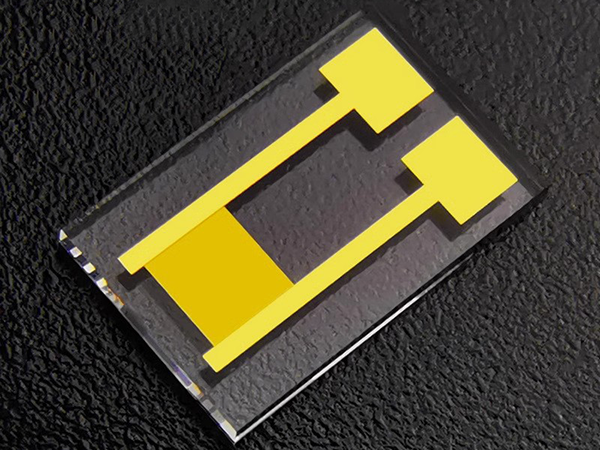

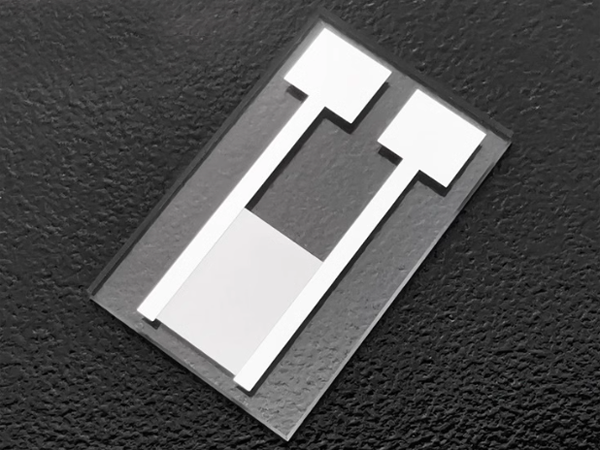

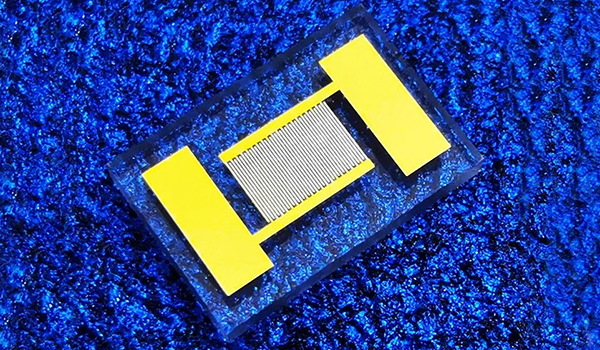

Quartz Interdigital Electrodes

Quartz Interdigital Electrodes, also called Glass Interdigital Electrodes, are a type of interdigitated electrode fabricated on a quartz substrate, consisting of a series of metal electrodes separated by narrow gaps or fingers, which are patterned on the quartz substrate using lithography techniques.

Quartz Interdigital Electrodes are typically made of conductive metals such as gold, aluminum or platinum. The piezoelectric properties of quartz provide the ability to detect and measure changes in mass, mechanical stress, or pressure in the surrounding environment. The main advantage of using quartz as the substrate material is its excellent piezoelectric properties.

Quartz IDEs or called Glass IDEs are widely used in sensing applications such as gas and chemical sensing, biosensing, and industrial process control. They offer high sensitivity, stability, and compatibility with a wide range of analytes. The ability to detect changes in mechanical properties or mass of the environment makes Quartz IDEs particularly valuable in biosensing applications where the interaction between the analyte and the electrode surface can result in a change in mass or mechanical response.

Advantages of Quartz Interdigital Electrodes :

Quartz Interdigital Electrodes have several advantages over other types of electrodes used in sensing applications. Some of the advantages are:

● Piezoelectric properties: Quartz substrate used in Quartz IDEs has superior piezoelectric properties, which enable the detection and measurement of changes in mass, mechanical stress, or pressure in the surrounding environment.

● Small size: Quartz IDEs are small in size, which makes them ideal for integration into microfluidic devices for lab-on-a-chip applications.

● Compatibility: Quartz Interdigital Electrodes are compatible with a wide range of analytes and can be used for gas and chemical sensing, biosensing, and industrial process control.

● High sensitivity: Quartz Interdigital Electrodes offer high sensitivity, which allows for the detection of very small changes in the electrochemical or mechanical properties of the surrounding environment.

● Ease of fabrication: Quartz IDEs can be easily fabricated using thin-film lithography techniques, which make them cost-effective and scalable.

● Stability: Quartz Interdigital Electrodes are highly stable and can withstand harsh environmental conditions, making them suitable for use in various industrial and environmental sensing applications.

Piezoelectric properties of quartz, combined with their high sensitivity, small size, stability, and compatibility, make Quartz IDEs valuable tools for sensing and measurement applications in various fields.

Applications of Glass Interdigital Electrodes :

Glass Interdigital Electrodes (Glass IDEs) have a wide range of applications in various fields. Some key applications include:

DNA Sensors (Biosensors): Glass IDEs are particularly useful in the development of DNA sensors, where their high sensitivity and rapid response times enable the detection of specific nucleic acid sequences. This technology can be applied in medical diagnostics, such as identifying genetic disorders or infectious diseases, by detecting the presence of pathogenic DNA in a sample.

Enzyme Sensors (Biosensors): Glass IDEs can detect the products of enzyme-catalyzed reactions by monitoring current changes. For example, glucose oxidase can be immobilized on IDEs to create a glucose sensor that provides real-time monitoring of glucose levels, essential for diabetes management. The design can also be adapted for other biomolecules, enhancing its versatility in clinical settings.

Gas Sensors: Glass Interdigital Electrodes can be modified with specific catalytic materials or coatings to enhance their selectivity and sensitivity for particular gases. For instance, IDEs can be used to detect ammonia in agricultural settings, contributing to livestock health monitoring. In industrial environments, these sensors can provide early warnings for toxic gas leaks, ensuring workplace safety.

Microfluidics: The integration of IDEs within microfluidic devices allows for the manipulation and analysis of small volumes of fluids. IDEs can function as electrodes to facilitate electrochemical detection of analytes, such as ions or small biomolecules, providing rapid and accurate results. This is particularly valuable in point-of-care diagnostics, where quick turnaround times are critical.

Surface Acoustic Wave Devices: In the realm of telecommunications, Glass IDEs can be employed in SAW devices that utilize surface waves to filter and process signals. The precise control of signal frequencies through IDEs allows for the development of compact and efficient filters essential for mobile devices and radio communications.

Electrochemical Applications: Glass Interdigital Electrodes are instrumental in the study of electrochemical processes. They can be used to investigate ion transfer kinetics, allowing researchers to gain insights into battery chemistry. By monitoring ion dynamics in real-time, IDEs help optimize battery design and performance, contributing to advancements in energy storage technologies.

Material Characterization: Glass Interdigital Electrodes provide a platform for evaluating the electrical properties of new materials. By applying a varying voltage to the electrodes, researchers can measure resistance and capacitance changes, aiding in the development of conductive polymers, nanomaterials, and coatings. This information is crucial for material selection in various applications, including electronics and coatings.

Liquid Quality Monitoring: Glass Interdigital Electrodes can be tailored for detecting specific contaminants in liquids, such as heavy metals or pathogens. For example, an IDE-based sensor can be designed to detect lead ions in drinking water, providing a quick and efficient method for ensuring water quality. This application is vital for public health and safety, especially in regions where water quality is a concern.

Quartz Interdigital Electrodes play a significant role in advancing technology and improving the quality of life across various scientific and industrial domains, with their high sensitivity, stability, and compatibility making them versatile tools for sensing and measurement applications in fields such as environmental monitoring, healthcare, industrial process control, and scientific research.

Specifications of Quartz Interdigital Electrodes :

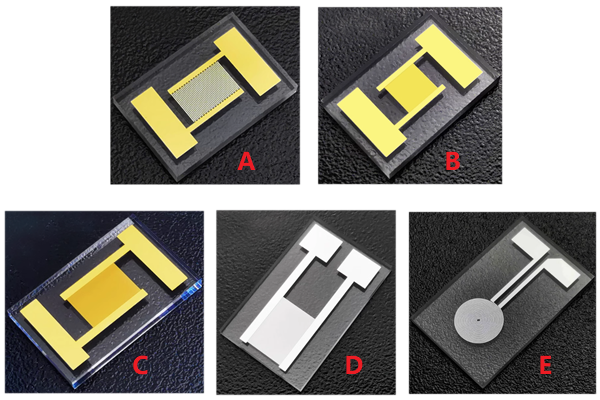

Types	A	B	C	D	E
Substrates	Quartz / Glass	Quartz / Glass	Quartz / Glass	Quartz / Glass	Quartz / Glass
Electrode Type	2-Electrodes	2-Electrodes	2-Electrodes	2-Electrodes	2-Electrodes
Electrode Size	4mm*6mm	4mm*6mm	5mm*8mm	5mm*8mm	5mm*8mm
Trace Width	30um	5um	10um	10um	25um
Trace Spacing	30um	5um	10um	10um	25um
Electrode Pairs	20 Pairs	80 Pairs	75 Pairs	75 Pairs	2 Pairs

Please refer to Interdigital Electrodes for more informations.
