Ceramic Interdigital Electrodes

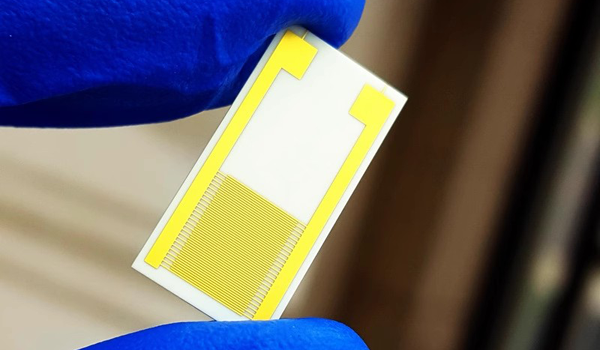

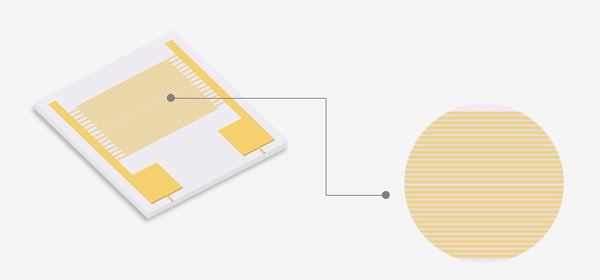

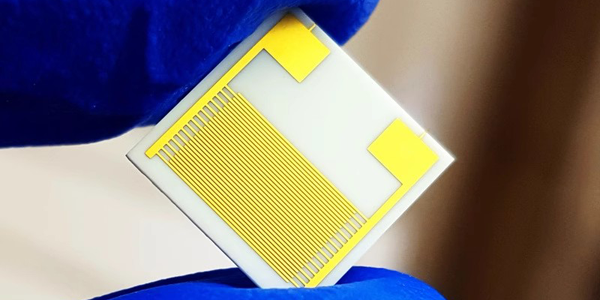

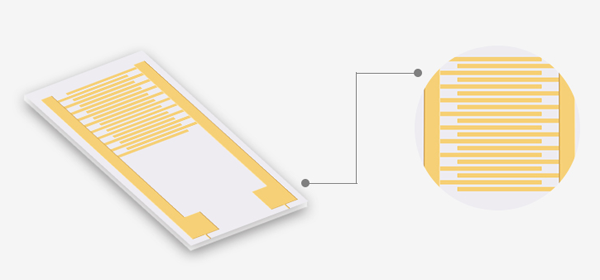

Ceramic Interdigital Electrodes, also called Ceramic IDEs, are a type of electrode structure fabricated on a ceramic substrate, consisting of interlocking, finger-like electrodes that alternate in polarity with small gaps between them, which increases surface area and allows for precise control over electric field distribution, making them ideal for a variety of sensing and measurement applications.

Ceramic Interdigital Electrodes are typically made from ceramic materials like alumina (Al2O3) or silicon dioxide (SiO2), which offer excellent electrical insulation and mechanical stability, making them well-suited to support the electrode structure. The electrodes themselves are generally composed of metals such as gold, silver, or platinum, which provide good electrical conductivity.

Ceramic Interdigital Electrodes offer a versatile platform for precise sensing and measurement across multiple industries and research fields. Their high sensitivity, precise electric field control, wide frequency range, and compatibility with harsh environments make them invaluable for applications such as gas sensors, biosensors, impedance spectroscopy, and telecommunications.

Features of Ceramic Interdigital Electrodes :

● High Sensitivity: Ceramic Interdigital Electrodes offer high sensitivity due to their interdigitated structure, which provides a larger surface area for interaction with the target analyte or stimulus. This increased surface area enhances the detection capabilities and improves the overall sensitivity of the electrode.

● Wide Frequency Range: Ceramic Interdigital Electrodes can operate over a wide frequency range, including radiofrequency (RF) and microwave frequencies. This versatility makes them suitable for various applications in telecommunications, wireless communication systems, and RF sensing.

● Compatibility with Harsh Environments: Ceramic Interdigital Electrodes are built on ceramic substrates that provide good resistance to chemicals, moisture, and mechanical stress. As a result, CIDEs are well-suited for use in harsh environments where exposure to corrosive substances or physical stress is expected.

● Integration with other Components: Ceramic Interdigital Electrodes can be easily integrated with other components, such as microfluidic channels or microprocessors, to create complete sensing systems. This integration capability enhances the functionality and versatility of CIDEs in various applications.

● Precise Electric Field Control: The interlocking finger design of CIDEs allows for precise control over the electric field distribution. This feature enables accurate measurements and control of the electric field, making CIDEs suitable for applications where fine-tuning of the field is required.

● Excellent Thermal Stability: Ceramic materials used as substrates for CIDEs exhibit excellent thermal stability. They can withstand high temperatures without degradation, making CIDEs reliable in applications that involve elevated temperatures.

● Versatile Fabrication Options: Ceramic Interdigital Electrodes can be fabricated on different types of ceramics, such as alumina (Al2O3) or silicon dioxide (SiO2), allowing for customization based on specific application requirements. The choice of electrode material, such as gold, silver, or platinum, can also be tailored to optimize electrical conductivity and chemical compatibility.

Ceramic Interdigital Electrodes feature high sensitivity, precise electric field control, a wide frequency range, thermal stability, compatibility with harsh environments, versatile fabrication options, and integration capabilities, all of which contribute to their effectiveness and suitability for diverse sensing and measurement applications.

Applications of Ceramic Interdigital Electrodes :

Ceramic Interdigital Electrodes (Ceramic IDEs) find applications in various fields due to their unique features and capabilities. Some common applications of Ceramic IDEs include:

● Microfluidics: Ceramic Interdigital Electrodes are integrated with microfluidic channels to create lab-on-a-chip devices. These devices allow for precise manipulation and analysis of small quantities of fluids. The compatibility of CIDEs with harsh environments and their ability to withstand high temperatures make them suitable for use in microfluidic systems for chemical analysis, drug discovery, and point-of-care diagnostics.

● Gas Sensing: Ceramic Interdigital Electrodes are used as gas sensors to detect and measure the concentration of gases in the environment. The high sensitivity and precise electric field control of CIDEs make them suitable for applications such as air quality monitoring, industrial gas detection, and environmental monitoring.

● Environmental Monitoring: Ceramic Interdigital Electrodes are employed in environmental monitoring systems to detect and measure parameters like humidity, temperature, and moisture. The robustness and compatibility of CIDEs with harsh environments make them suitable for long-term monitoring in outdoor or industrial settings.

● Energy storage and Conversion: Ceramic Interdigital Electrodes are utilized in energy storage and conversion devices, such as supercapacitors and fuel cells. The high surface area of the interdigitated electrodes enhances the efficiency of charge storage and transfer, making CIDEs beneficial for energy storage applications.

● Biosensing: Ceramic Interdigital Electrodes are employed in biosensors for detecting and analyzing biomolecules, such as proteins, DNA, and enzymes. The large surface area of the interdigitated electrodes allows for efficient interaction with biological samples, enabling sensitive detection in applications like medical diagnostics, food safety, and biotechnology research.

● Radiofrequency (RF) Devices: Ceramic Interdigital Electrodes are employed in RF devices, such as filters, resonators, and antennas. Their wide frequency range and precise electric field control make them suitable for RF applications in telecommunications, wireless communication systems, radar systems, and RF sensing.

● Impedance Spectroscopy: Ceramic Interdigital Electrodes are utilized in impedance spectroscopy, a technique used to measure the electrical properties of materials. The precise electric field control and wide frequency range of CIDEs enable accurate impedance measurements, making them valuable in material characterization, electrochemical analysis, and physical property evaluation.

These are just a few examples of the broad range of applications where Ceramic Interdigital Electrodes are utilized. Their high sensitivity, precise control over the electric field, wide frequency range, and compatibility with different environments make them versatile tools for sensing, measurement, and analysis in various industries and research fields.

Specification of Ceramic Interdigital Electrodes :

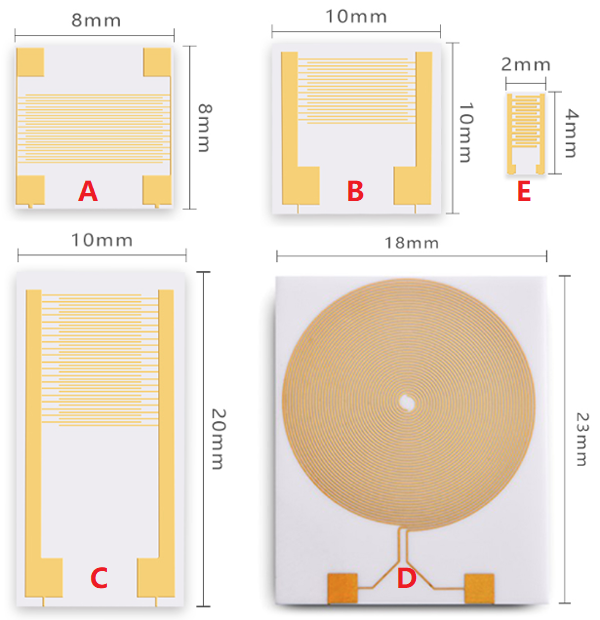

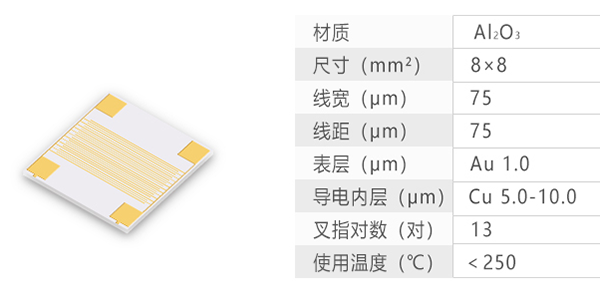

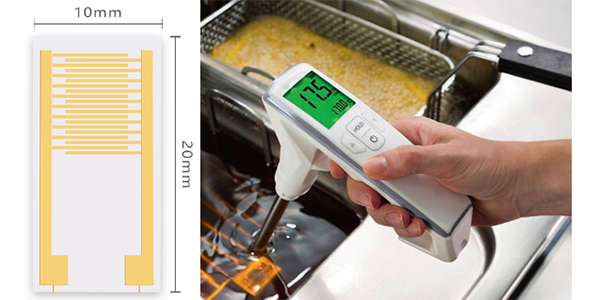

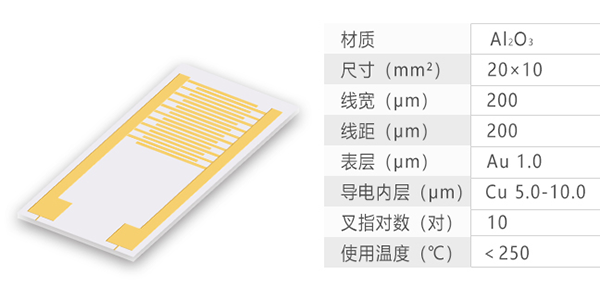

Types	A	B	C	D	E
Substrates	Ceramic	Ceramic	Ceramic	Ceramic	Ceramic
Electrode Type	2-Electrodes	2-Electrodes	2-Electrodes	2-Electrodes	2-Electrodes
Electrode Size	8mm*8mm	10mm*10mm	20mm*10mm	23mm*18mm	4mm*2mm
Trace Width	75um	100um	100um	100um	90um
Trace Spacing	75um	100um	100um	100um	70um
Electrode Pairs	13 Pairs	10 Pairs	20 Pairs	2 Pairs	7 Pairs

Please refer to Interdigital Electrodes for more informations.
