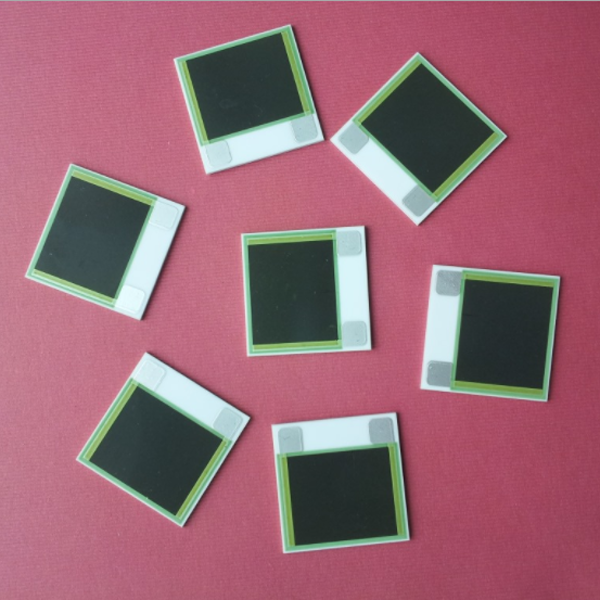

Custom Thick Film Ceramic Resistors

Panda PCB Group is a supplier focusing on Custom Thick Film Ceramic Resistors, with proprietary non-inductive design, high precision, low temperature coefficient, low voltage coefficient, high stability, high temperature silicone coating. Custom Thick Film Ceramic Resistor can be manufactured in many geometries and sizes, from fractional watts to kilowatts. Design requirements for custom sizes, surface mount, or special footprints can be met easily.

Custom Thick Film Ceramic Resistor are ideal for a wide range of requirements in equipment such as radar, motor drives, broadcast transmitters, RF amplifiers, semiconductor process, power conditioning, xray, lasers, medical defibrillators, and energy research. Chemically inert and thermally stable, the resistors are inherently non-inductive because of their bulk ceramic construction, Custom Thick Film Ceramic Resistor allows energy and power to be uniformly distributed through the entire ceramic resistor,The bulk ceramic material also allows simple, efficient resistor designs that enable the designer to minimize the resistor package size while providing the required performance and reliability.

We accept Custom Thick Film Ceramic Resistor Including :

Tubular Thick Film Ceramic Resistor,

Thick Film Power Ceramic Resistor,

Planar High Voltage Ceramic Resistors,

Non-Inductive Thick Film Ceramic Resistor,

High Energy Thick Film Ceramic Resistors

Features:
◆ rated power: 2.5w-20w

◆ resistance range: 10 Ω ~ 1000m Ω

◆ allowable deviation: ± 1% ～ ± 10%

◆ temperature coefficient: minimum ± 50ppm (25 ℃ ~ 105 ℃)

◆ insulation withstand voltage: > 1000VDC

◆ insulation resistance: ≥ 10g Ω

◆ working temperature range: - 55 ℃ ~ + 225 ℃

◆ maximum working voltage: 48kvdc

◆ inductance: non inductive

◆ connectors: tinned iron cap

◆ resistance installation: Welding

◆ overload: 5p value does not exceed 1.5umax5s, Δ R≤±0.2%R

◆ service life: rated power 1000h, Δ R≤±0.5%R

◆ steady state damp heat: mil-std-202, method 103, condition D, Δ R≤±0.4%R

◆ thermal shock: mil-std-202, method 107, condition C, Δ R≤±0.2%R

Applications:

Motor drive circuits

Snubber circuits

Bleeder

Capacitor charge/discharge

High-frequency circuits

Impulse generators

High-voltage circuits

X-ray equipment

High voltage power supplies

Laser/Imaging equipment

Capacitor charge/discharge

RF dummy loads

Dynamic braking

Transformer protection

For more information ,Please refer to "Thick-Film-Hybrid-Circuit"
