LED Light PCB

LED Light PCBs, also called LED Strip Light PCBs, are specialized printed circuit boards designed for LED strip lights, providing platforms for mounting and connecting individual LED chips to ensure efficient functionality and performance, and are typically made from non-conductive materials like flexible Polyimide (PI), fiberglass (FR4), or metal cores (Aluminum, Copper), offering varying levels of flexibility and durability to suit different applications.

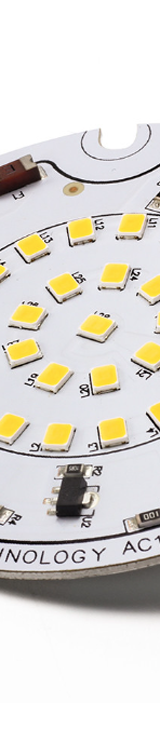

LED Light PCBs are a crucial component in the design and functionality of LED strip lights. These PCBs provide a solid foundation for mounting and interconnecting LED chips, which emit light when powered. The LED chips are securely soldered onto the PCBs, with copper traces and conductive pathways carefully arranged to ensure efficient electricity flow. These intricate copper patterns enable reliable power distribution, ensuring optimal performance and longevity of the LED strips.

LED Strip Light PCBs serve a diverse range of applications across multiple sectors, including residential, commercial, and architectural lighting. Their flexibility and versatility make them ideal for customizable lighting solutions, whether for accent lighting in living spaces or for high-performance applications such as signage or industrial environments. In addition to their widespread use in indoor settings, LED strip lights are also commonly employed in outdoor environments, particularly for decorative and accent lighting, as well as for automotive lighting, where durability and weather resistance are essential.

Product Types of LED Light PCB :

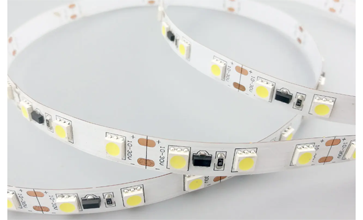

1, Flexible LED Strip Light: Flexible Polyimide PCBs, also known as flex PCBs, are made of flexible materials that allow them to be bent or twisted to fit curved or irregular surfaces. These PCBs are used in flexible LED strip lights that need to conform to specific shapes or installations.

2, FR4-LED Light PCB: Rigid FR4 PCBs are made of rigid materials such as fiberglass or metal, providing a sturdy base for the LED strip lights. They are commonly used in LED strip lights that require higher structural support or in applications where flexibility is not necessary.

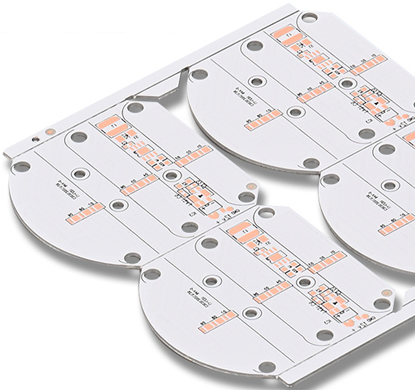

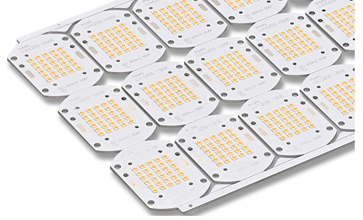

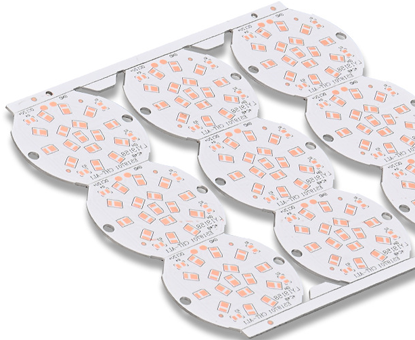

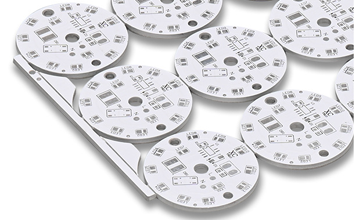

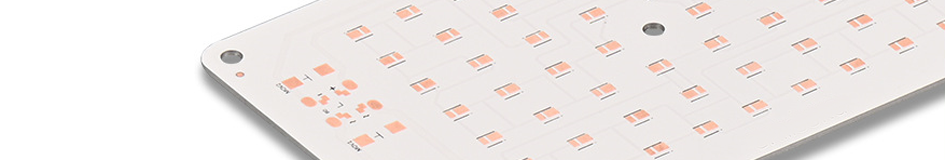

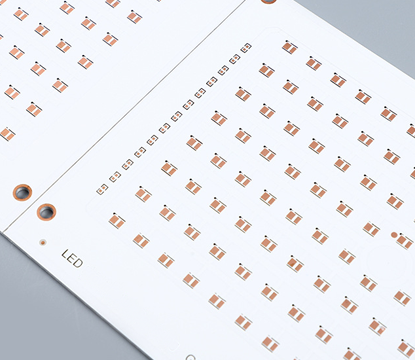

3, Metal Core-LED Light PCB: Copper core or Aluminum core PCBs are highly thermally conductive, allowing them to dissipate heat more effectively than traditional PCBs. This makes them ideal for high-power LED strip lights that generate a lot of heat.

Comparison of LED Light PCBs With Different Substrates :

1, Polyimide Base-LED Strip Light PCB (FPC LED Strip Lights):

1, Main Features:

1, Flexibility: Polyimide substrates allow for easy bending and conforming to different shapes, making them suitable for curved or irregular surfaces.

2, Lightweight: Polyimide-based PCBs are lightweight, enabling easy installation and reducing the overall weight of lighting fixtures.

3, Thermal Resistance: Polyimide has good thermal resistance properties, helping to dissipate heat and maintain the performance of LED strip lights.

2, Manufacturing Process:

Polyimide is a flexible material that allows for the creation of bendable LED strip lights. The PCB is manufactured using a roll-to-roll process, where the polyimide film is coated with copper traces and then etched to create the circuitry.

3, Applications:

Polyimide-based LED Strip Light PCBs are commonly used in applications that require flexibility, such as curved or irregularly shaped surfaces. They are ideal for architectural lighting, signage, and automotive lighting.

4, Advantages:

Flexibility, lightweight, and excellent thermal resistance. Can be easily bent or conform to different surfaces. Offers good electrical insulation properties.

5, Disadvantages:

Limited mechanical strength compared to rigid substrates. May have higher production costs compared to other materials.

2, FR4 Based-LED Light PCB:

1, Main Features:

1, Mechanical Strength: FR4 substrates offer excellent mechanical strength and rigidity, providing stability and durability to LED strip lights.

2, Dimensional Stability: FR4 materials maintain their shape and dimensions under varying temperature and humidity conditions, ensuring consistent performance.

3, Cost-effectiveness: FR4-based PCBs are widely used in the industry, resulting in cost-effective production and availability.

2, Manufacturing Process:

FR4 is a rigid fiberglass material widely used in conventional PCB manufacturing. The process involves laminating multiple layers of fiberglass cloth and epoxy resin, with copper foils bonded on each side, followed by etching to create the circuitry.

3, Applications:

FR4-based LED Strip Light PCBs are suitable for general lighting applications, electronic displays, and consumer electronics where flexibility is not required.

4, Advantages:

Excellent mechanical strength, rigidity, and dimensional stability. Good heat dissipation capability. Cost-effective mass production.

5, Disadvantages:

Not flexible, limiting their application in certain projects. May not conform to curved surfaces. Heavier compared to polyimide-based PCBs.

3, Metal Core-LED Light PCB:

1, Main Features:

1, Thermal Conductivity: Aluminum substrates have high thermal conductivity, efficiently dissipating heat generated by the LEDs and extending their lifespan.

2, Rigid Structure: Aluminum-based PCBs provide a rigid structure, allowing for stable mounting of LED chips and resistance to mechanical stress.

3, High-Power Applications: Aluminum-based PCBs are suitable for high-power LED applications due to their excellent heat dissipation capabilities.

2, Manufacturing Process:

Aluminum-based PCBs are made by bonding a thin layer of aluminum to an insulating substrate, typically FR4 or polyimide. The circuitry is created using standard PCB manufacturing techniques, including etching and soldering.

3, Applications:

Aluminum-based LED Strip Light PCBs are widely used in high-power LED lighting applications, such as outdoor lighting, industrial lighting, and automotive headlights.

4, Advantages:

Excellent thermal conductivity, allowing efficient heat dissipation and prolonging LED lifespan. Rigid structure with good mechanical strength. Suitable for high-power applications.

5, Disadvantages:

Not flexible like polyimide-based PCBs. Higher cost compared to FR4-based PCBs. Requires additional insulation layers to prevent short circuits.

The choice of substrate material for LED Strip Light PCBs depends on specific requirements. Polyimide-based PCBs offer flexibility and lightweight properties but may have limited mechanical strength. FR4-based PCBs provide rigidity and cost-effectiveness but lack flexibility. Aluminum-based PCBs excel in heat dissipation and high-power applications but are comparatively expensive. Considerations should be made based on the desired application, design constraints, and budget.

How to Choose LED Light PCBs Based on Different Substrates ?

1, Thermal Management: LEDs generate heat, and efficient thermal management is crucial for their performance and longevity. Different substrates offer varying levels of thermal conductivity. Metal Core PCBs (MCPCBs) have the best thermal conductivity, followed by FR4, while PI has the lowest. Consider the heat dissipation requirements of your LED application and choose the substrate accordingly.

2, Mechanical Strength and Flexibility: If your LED application involves bending or flexing the PCB, PI substrates are preferred due to their flexibility. FR4 is rigid and not suitable for flexible applications. MCPCBs are rigid but provide better mechanical strength than FR4.

3, Fabrication Cost: Cost is an important factor in any project. FR4 PCBs are generally the most affordable option, while MCPCBs tend to be more expensive due to the use of metal cores. PI substrates fall somewhere in between in terms of cost.

4, Dielectric Properties: The dielectric properties of the substrate can impact signal integrity and electromagnetic compatibility. FR4 is a commonly used dielectric material with good electrical insulation properties. PI substrates also offer excellent dielectric properties. Metal cores may require additional insulation layers to ensure proper signal integrity.

5, Manufacturing Process: Consider the manufacturing process and compatibility with your chosen substrate. FR4 is widely used and readily available, making it easy for PCB manufacturers to work with. PI substrates require specialized processes due to their flexibility. MCPCBs require specific techniques for attaching LEDs to the metal core.

Ultimately, the choice of LED light PCB substrate depends on your specific application requirements, such as thermal management, flexibility needs, budget, and manufacturing considerations. It's recommended to consult with our PCB experts to determine the most suitable substrate for your LED project.

Applications of LED Light PCB :

1, General Lighting: LED Light PCBs are commonly used in residential, commercial, and industrial lighting applications. They can be designed to fit into different shapes and sizes to provide directional or diffused lighting for various settings.

2, Automotive Lighting: LED Light PCBs are increasingly being used in automotive lighting applications due to their long lifespan, low power consumption, and high brightness. They are commonly used in headlights, taillights, brake lights, and turn signals.

3, Backlighting: LED Light PCBs are commonly used in the backlighting of LCD displays, keyboards, and other electronic devices. They offer low power consumption, high brightness, and long lifespan, making them a popular choice for backlighting applications.

4, Signage: LED Light PCBs are commonly used in signage applications such as channel letters, illuminated signs, and billboards. They offer high brightness and energy efficiency, making them a cost-effective alternative to traditional lighting.

5, Horticulture Lighting: LED Light PCBs are increasingly being used in horticulture lighting applications due to their ability to provide specific wavelengths of light that can promote plant growth and increase yield. They are commonly used in indoor gardening, greenhouses, and vertical farming.

6, Medical Lighting: LED Light PCBs are used in medical lighting applications such as surgical lights, examination lights, and dental lights. They offer high color accuracy, low heat emission, and long lifespan, making them an ideal choice for medical lighting applications.

LED Light PCBs offer a range of benefits that make them suitable for a wide variety of lighting applications across different industries.
